Status
Available
Description
The Toughcut SAPPHIRE Educational CNC Router Series is tailored for precision, versatility, and user-friendly operation, making it ideal for schools, workshops, and hobbyists. The Standard model provides a comprehensive feature set for everyday applications, while the Premium model is designed to meet the demands of advanced professional projects and high-performance requirements.
Toughcut SAPPHIRE Educational CNC Router – Standard Features
Operation Controller
- LNC MW2500D (Taiwan) with a movable control panel.
- User-friendly design featuring a 20” monitor, keyboard, and mouse for easy operation.

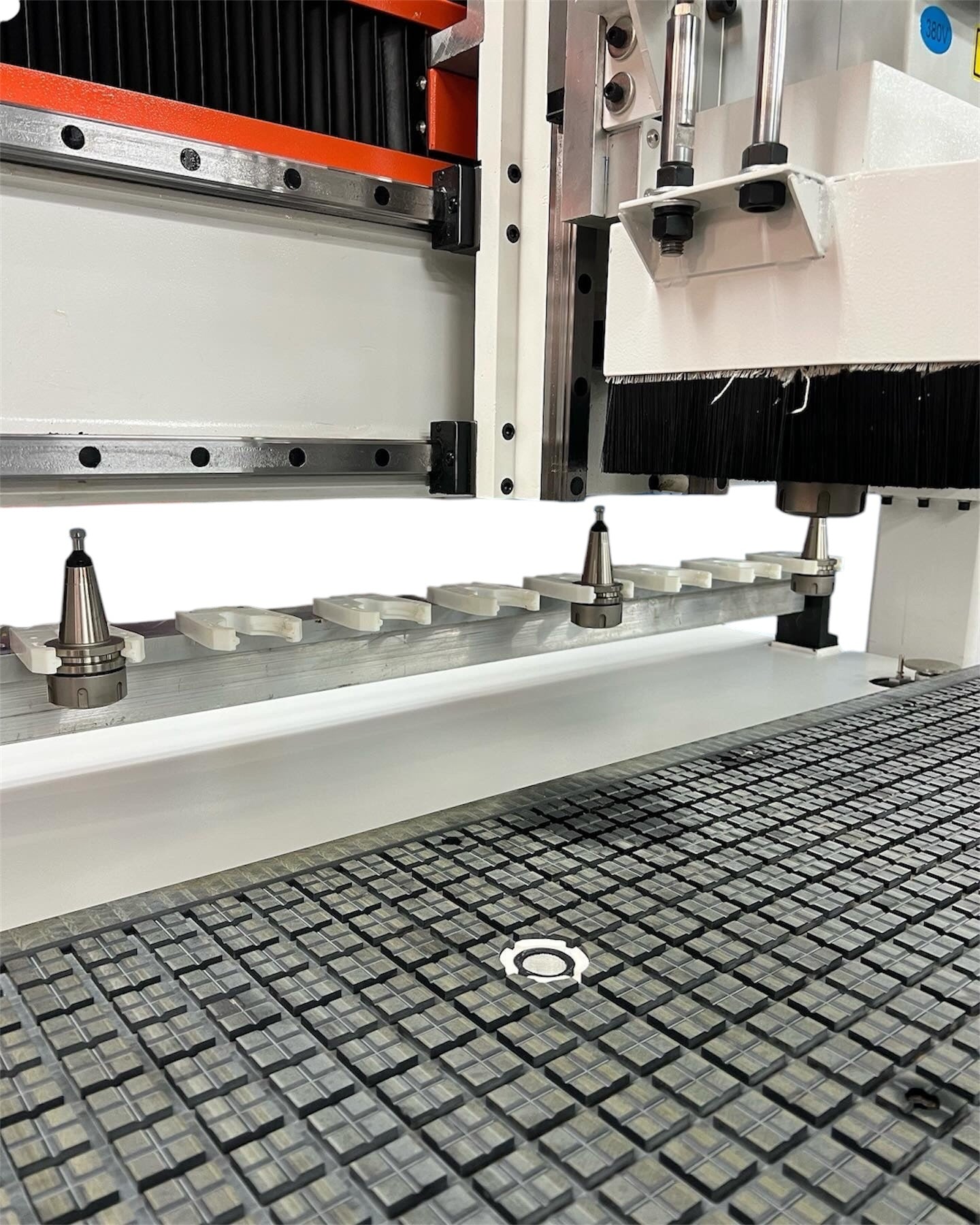

Automatic Tool Changer (ATC)
- 8-slot ISO30 tool changer enables fast and efficient tool swaps, eliminating manual changes.
Drive Motor
- Leadshine servo motors for smooth and consistent operation.
Precision Transmission
- Ball screw mechanism ensures reliable accuracy and repeatable performance.

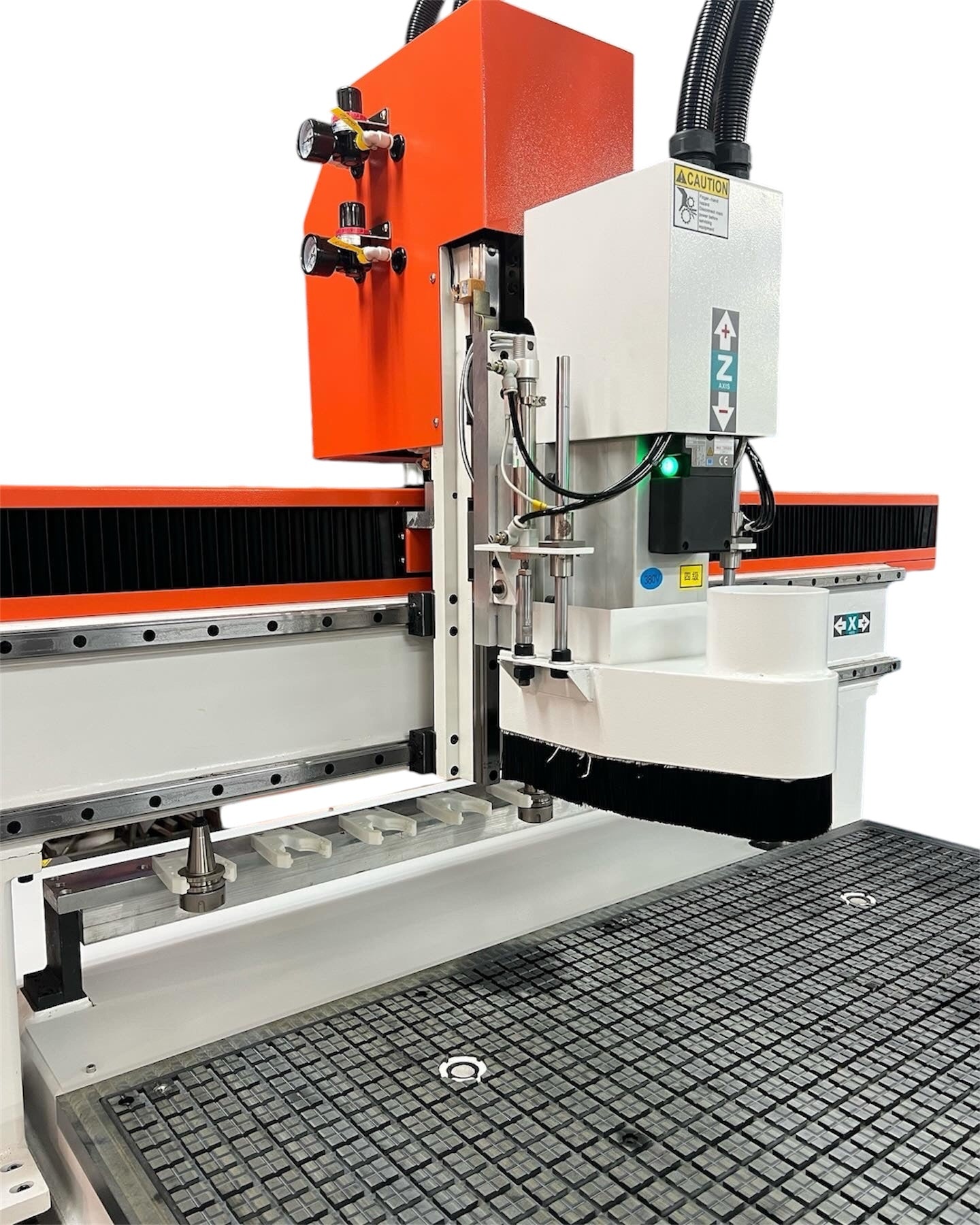

Spindle
- 6kW air-cooled ATC spindle (HQD CC, ISO30) with speeds of up to 18,000 RPM, powered by a Delta 7.5kW inverter for optimal efficiency.
Guide Rails
- T-WIN 25mm guide rails with advanced sliding technology for excellent stability and load capacity.
Additional Features
- Automatic tool length calibration for precise adjustments.
- Vacuum table with a 5.5kW pump (320m³/h) and filter to secure workpieces.
- Automatic lubrication system for reduced maintenance requirements.
- USB compatibility for simple G-code program uploads.
Premium Features
The Premium model builds upon the Standard model, incorporating additional features and improvements for advanced educational and professional use:
-
Enhanced Spindle Power
- High-torque spindle for demanding applications and materials.
-
Optimised Transmission System
- Dual-ball screw system for unparalleled precision and reliability.
-
Improved Tool-Changing Efficiency
- Faster tool change speeds with reinforced changer mechanisms.
-
Reinforced Guide Rails
- Larger, heavy-duty rails for improved stability during intensive workloads.
-
Advanced Lubrication System
- Intelligent lubrication for extended machine life and reduced maintenance.
Feature Comparison
| Feature | Educational Standard Model | Educational Premium Model |
|---|---|---|
| Operation Controller | LNC MW2500D | LNC MW2500D (Advanced Interface) |
| Spindle Power | 6kW Air-Cooled (HQD CC, ISO30) | Upgraded High-Torque Spindle |
| Tool Changer | 8-slot ISO30 | 8-slot ISO30 (Faster Swap Speed) |
| Drive Motor | Leadshine Servo Motor | High-Precision Servo Motor |
| Transmission | Ball Screw | Dual-Ball Screw |
| Guide Rails | T-WIN 25mm | Heavy-Duty Rails (Larger Dimension) |
| Vacuum System | 5.5kW Pump (320m³/h) | High-Capacity Vacuum System |
| Lubrication System | Automatic Pump | Intelligent Lubrication |
Whether you need the Educational Standard model for everyday use or the Educational Premium model for high-performance applications, the Toughcut SAPPHIRE series is the perfect choice for schools, hobbyists, and professionals alike.
Applications
- Furniture & Wood Processing: wooden doors, chairs, cabinets, stairs, computer tables, sewing machine, musical instruments.
- Plate processing: insulation, plastic and chemical, the PCB, move the car body, bowing, track, stars anti-special board, epoxy, resin, ABS, PP, PE, and other carbon mixture.
- Decoration / Craft Industry: Engraving characters/patterns onto gifts, souvenirs, and shaping of acrylic, PVC, MDF, artificial stone, plexiglass, plastic, copper and aluminium, and other soft metal plate engraving and milling cutting.
- Advertising / Signage Industry: Engraving and cutting of various labels and signage on materials including marble, brass, steel, and other metallic material.
- Engraving: Engraving characters, numbers, and other patterns on labels for products directly.
- Architectural Models: Engraving fine window, fencing, and wall patterns.
Workshop Requirements
- 20amp 5pin 415V socket outlet
- Compressed air supply, minimum FAD 200L/MIN @ 6 bar - the machine is fitted with Nitto Style Male Fitting
- Dust Extraction, Minimum 2HP, 100mm outlet
- Tooling, the machine is not supplied with tooling
- Collets for tool Holders - size Depends on the tooling
- CAD / CAM Software (i.e vertical v carve)
- Bracket for holding dust hose
- Compressed Air
Client Testimonial

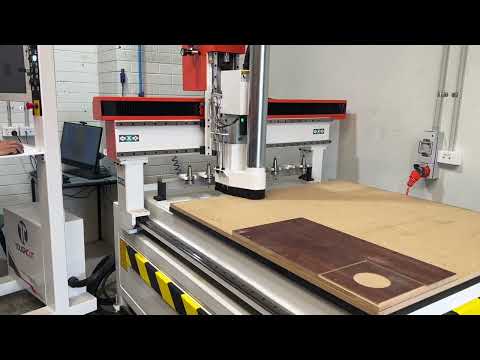

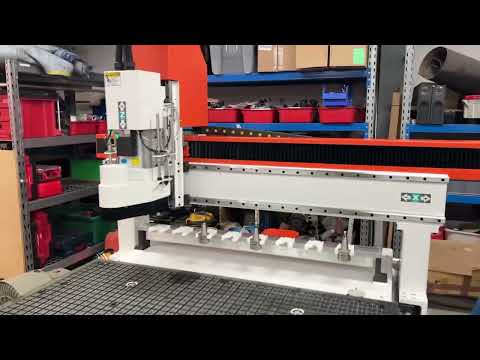

Client Videos
Options
|
Model |
SKU |
Machine Body Size |
|
SAPPHIRE TCVE25-1212-L4-EDU |
#904666 |
1800 x 1800 x 1800mm |
|
SAPPHIRE TCVE25-1224-L4-EDU |
#904688 |
1800 x 3050 x 1800mm |
|
SAPPHIRE TCVE25-1212-L4-EDU-PREMIUM |
#9000609 |
1800 x 1800 x 1800mm |
Please note images show 1240mm x 1220mm x 250mm working size machine.
Additional Information
Model
Type
CNC Router
SKU
904666
Part Number
SAPPHIRE TCVE25-1212-L4-EDU
Brand
ToughCut
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Working Area
1240mm x 1220mm x 250mm or 1240mm x 2440mm x 250mm
No. of Tool Changers
8
Dimensions
Product Length
210cm
Product Width
180cm
Product Height
210mm
Country of Origin
Manufactured in
China
Features
Standard Inclusions
8 x ISO30 Tool holders - No ColletsVacuum Pump for work table (1 x Zone for 1200mm x 1200mm and 2 x Zone for 1200mm x 2400mm)
Workshop (Site) Info
Workshop Requirements
PC based computer or laptop20amp 5pin 415V socket outletCompressed air supply, minimum FAD 200L/MIN @ 6 bar - the machine is fitted with Nitto Style Male FittingDust Extraction, Minimum 3HP, 100mm outletTooling, the machine is not supplied with toolingCollets for tool Holders - size Depends on the toolingCAD / CAM Software (i.e vertical v carve)Bracket for holding dust hoseCompressed Air
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Packaging + Shipping
Shipping Weight (Gross)
400kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Custom - Depending on Shipping Destination. Price on Application (POA).
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
