Description

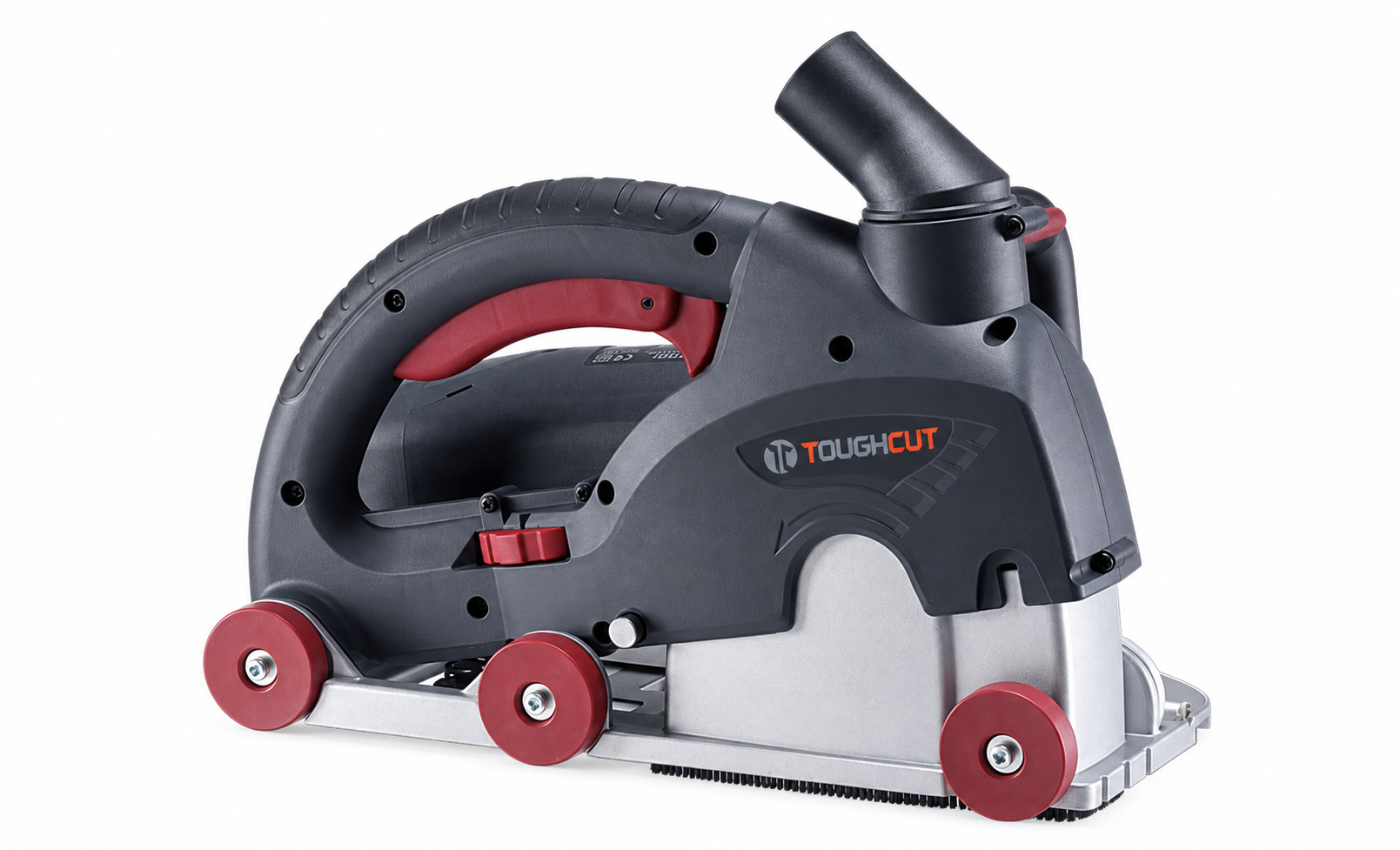

Cut clean, accurate channels through concrete, brick and masonry with the powerful ToughCut TC-WC150-2500 Professional Wall Chaser.
Driven by a heavy-duty 2500W motor, this 150mm wall chaser delivers a maximum cutting depth of 50mm and an adjustable channel width of up to 45mm. It is purpose-built for electricians, plumbers, builders, HVAC installers and renovation professionals who need to create channels for conduit, pipework, data cabling and other concealed services.
The TC-WC150-2500 can operate with two blades for conventional channel cutting or accommodate up to five blades for bridgeless chasing. This multi-blade configuration removes more material during the initial cut, helping reduce the amount of chiselling required afterwards.
A fully enclosed blade housing and rotatable dust extraction outlet help control airborne masonry dust when the machine is connected to a suitable dust extractor. Constant-speed electronics, soft start, overload protection and thermal protection support reliable performance in demanding trade and construction applications.
Key Features
- Powerful 2500W motor for demanding concrete and masonry cutting
- 150mm (6") diamond blade capacity
- Maximum cutting depth of 50mm
- Adjustable channel width up to 45mm
- Accepts up to five blades for efficient, bridgeless wall chasing
- Two-blade and five-blade spacer configurations
- Fully enclosed blade housing for improved dust containment
- Rotatable dust extraction outlet
- Built-in laser guide for accurate cutting alignment
- Constant-speed electronics maintain performance under load
- Soft-start function for smoother and more controlled start-up
- Electronic overload and thermal protection
- LED load indicator helps the operator monitor cutting performance
- Adjustable depth control with clear markings
- Tool-free arbor screw simplifies blade changes and width adjustments
- Support roller system provides smoother movement across the work surface
- Dust- and water-resistant solid-state switch
- Ergonomic main handle with extended trigger
- Supplied in a heavy-duty moulded carry case
Designed for Faster Wall Chasing
Traditional wall chasing generally requires two cuts followed by extensive chiselling to remove the material between them. The ToughCut TC-WC150-2500 can be configured with up to five blades, allowing more material to be removed during the cutting process.
This helps produce cleaner channels with less secondary work, potentially saving considerable time when installing electrical, plumbing, air-conditioning and communications services.
Suitable Applications
The ToughCut TC-WC150-2500 is ideal for cutting channels in:
- Concrete
- Reinforced concrete, subject to blade suitability
- Brick
- Blockwork
- Masonry
- Rendered walls
- Similar mineral-based construction materials
Typical applications include:
- Electrical conduit installation
- Plumbing and pipework channels
- Data and communications cabling
- Air-conditioning and HVAC installations
- Residential renovations
- Commercial fit-outs
- Building and construction projects
- Creating concealed wall services
Dust-Controlled Operation
The enclosed blade design helps capture dust close to the cutting point. When connected to a suitable industrial dust extractor, the rotatable extraction outlet helps improve dust collection, worksite visibility and general site cleanliness.
Always use a compatible dust extractor rated for the material being cut and follow the applicable workplace silica-dust control requirements.
Technical Specifications
| Specification | TC-WC150-2500 |
|---|---|
| Brand | ToughCut |
| Model / Part Number | TC-WC150-2500 |
| Product Type | Professional Wall Chaser |
| Power Input | 2500W |
| Voltage | 220–240V |
| Frequency | 50–60Hz |
| No-Load Speed | 6,500 RPM |
| Maximum Blade Diameter | 150mm (6") |
| Blade Bore | 22.23mm (7/8") |
| Maximum Cutting Depth | 50mm |
| Maximum Channel Width | 45mm |
| Maximum Number of Blades | 5 |
| Maximum Five-Blade Chase Width | Approximately 23mm |
| Depth Adjustment | Yes |
| Constant-Speed Electronics | Yes |
| Soft Start | Yes |
| Overload Protection | Yes |
| Thermal Protection | Yes |
| Dust Extraction Outlet | Rotatable |
| Laser Cutting Guide | Yes |
| Dimensions | 365 × 220 × 288mm |
| Weight | Approximately 7.2kg, excluding blades and power lead |
What’s Included
- 1 × ToughCut TC-WC150-2500 Wall Chaser
- 2 × 150mm universal diamond blades
- Spacer set for two-blade configuration
- Spacer set for five-blade configuration
- Operating tools
- Heavy-duty moulded carry case
- Operating instructions
Optional Accessories
- Additional 150mm diamond wall-chasing blades
- Diamond blades for hard masonry and concrete
- Compatible industrial dust extractor
- Dust-extraction hose or adaptor
- Guide rail
- Guide rail support set
- Suitable respiratory, hearing and eye protection
Frequently Asked Questions
What is the ToughCut TC-WC150-2500 used for?
It is designed to cut controlled channels in concrete, brick, blockwork and masonry. These channels are commonly used to conceal electrical conduit, plumbing pipes, data cables and air-conditioning services.
How deep can this wall chaser cut?
The maximum cutting depth is 50mm. The depth can be adjusted to suit the requirements of the installation and the material being cut.
How wide can the channel be?
The wall chaser can produce channels up to approximately 45mm wide, depending on the blade and spacer arrangement.
Can it operate with five blades?
Yes. The TC-WC150-2500 can accommodate up to five compatible 150mm blades. A five-blade arrangement can remove more material in a single pass and significantly reduce the chiselling normally required after cutting.
Can it be connected to a dust extractor?
Yes. The machine features an enclosed blade housing and rotatable dust outlet for connection to a compatible industrial dust extractor. Correct dust extraction and personal protective equipment are particularly important when cutting concrete and silica-containing masonry.
Are diamond blades included?
Yes. The standard package includes two 150mm universal diamond blades. Different blades may be required for specialised or particularly hard materials.
Is this wall chaser suitable for electricians and plumbers?
Yes. It is designed for professional trade applications, including channels for electrical wiring, conduit, plumbing, data cabling and HVAC services.
Important Safety Information
Wall chasing generates hazardous dust and may expose the operator to respirable crystalline silica. Always use suitable dust extraction, respiratory protection, hearing protection and eye protection. Follow the machine instructions, blade manufacturer’s recommendations and all applicable workplace safety requirements.
Do not cut into a wall until the work area has been checked for concealed electrical cables, gas lines, water pipes and structural components.
Specifications, accessories and product appearance may change without notice.
