Status

Available

Description

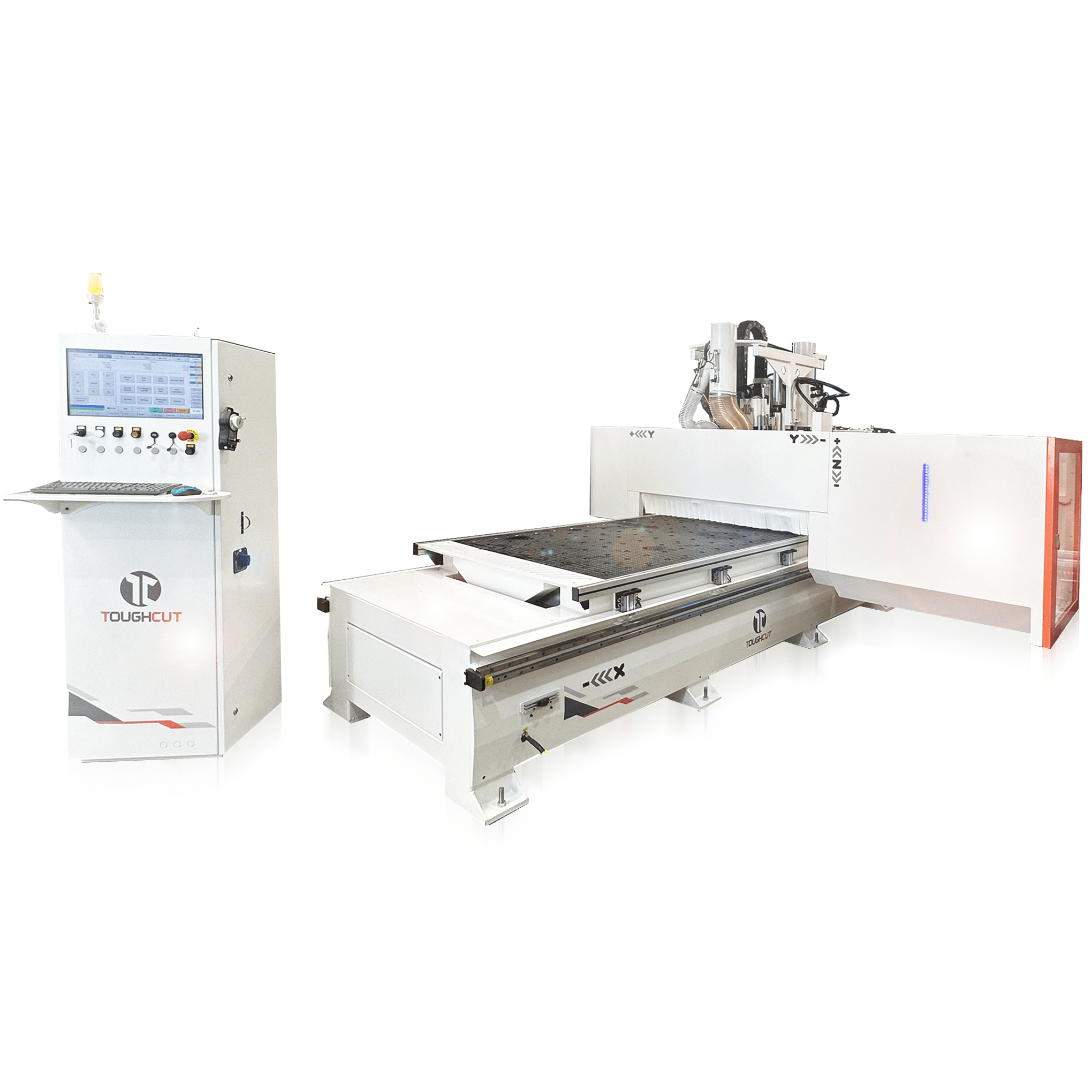

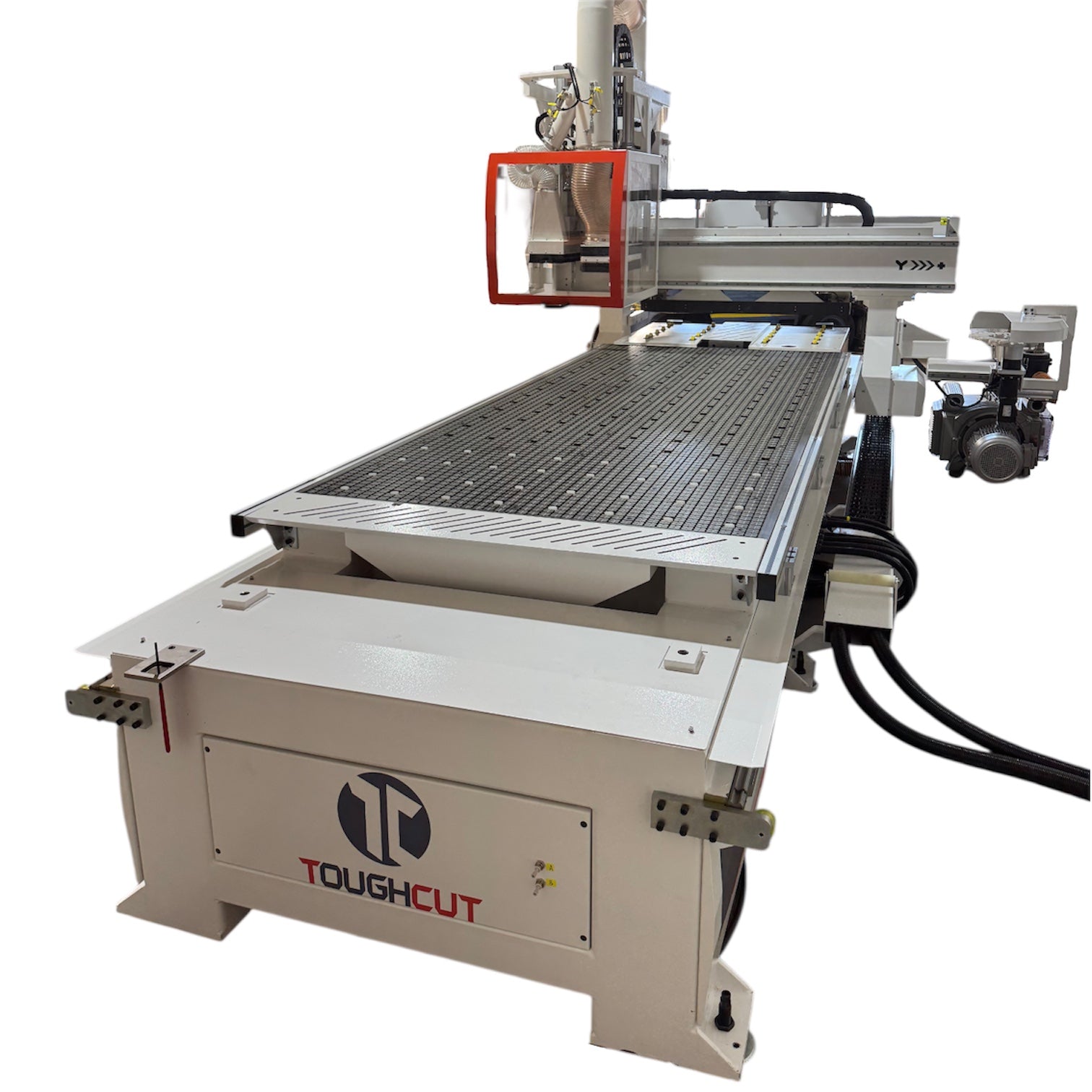

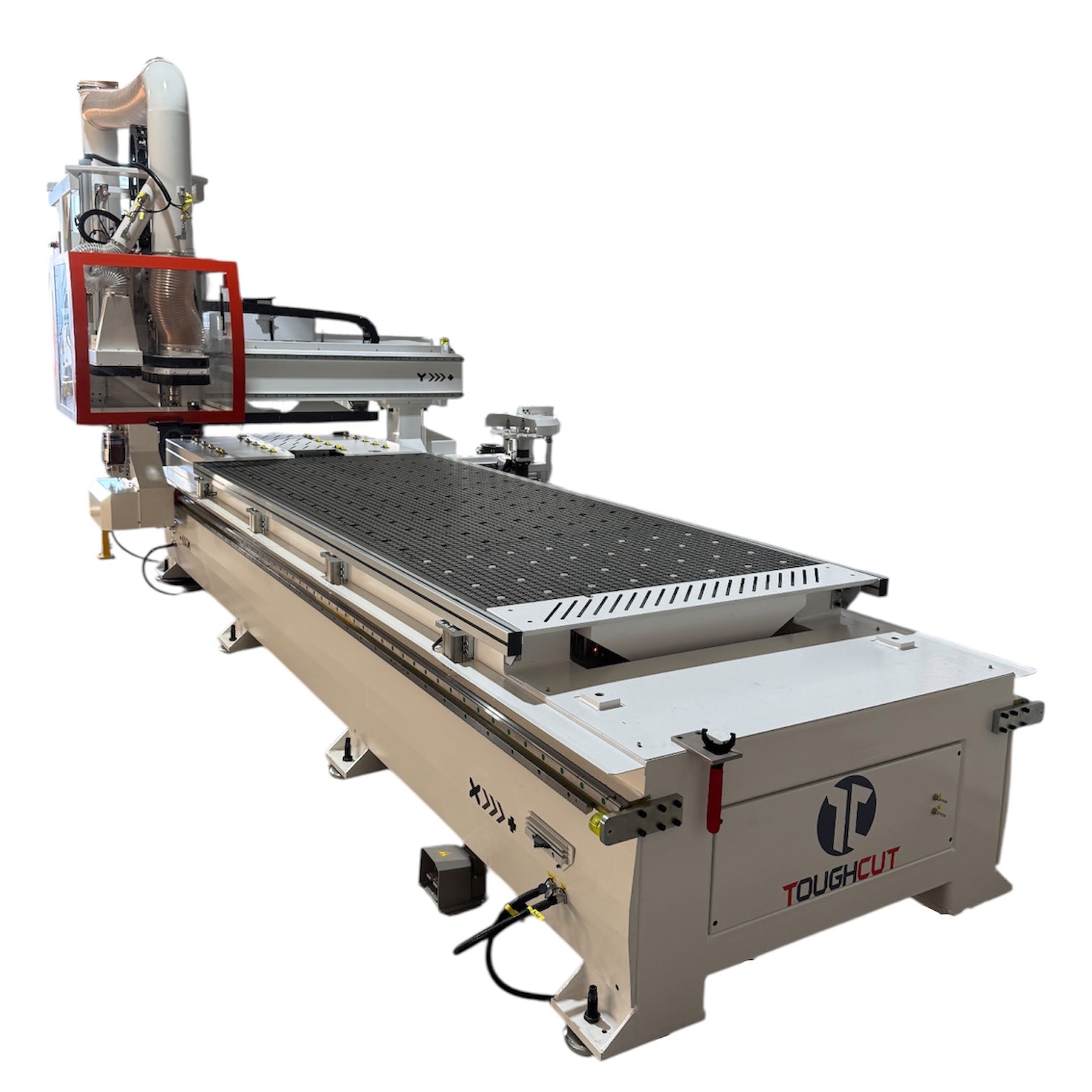

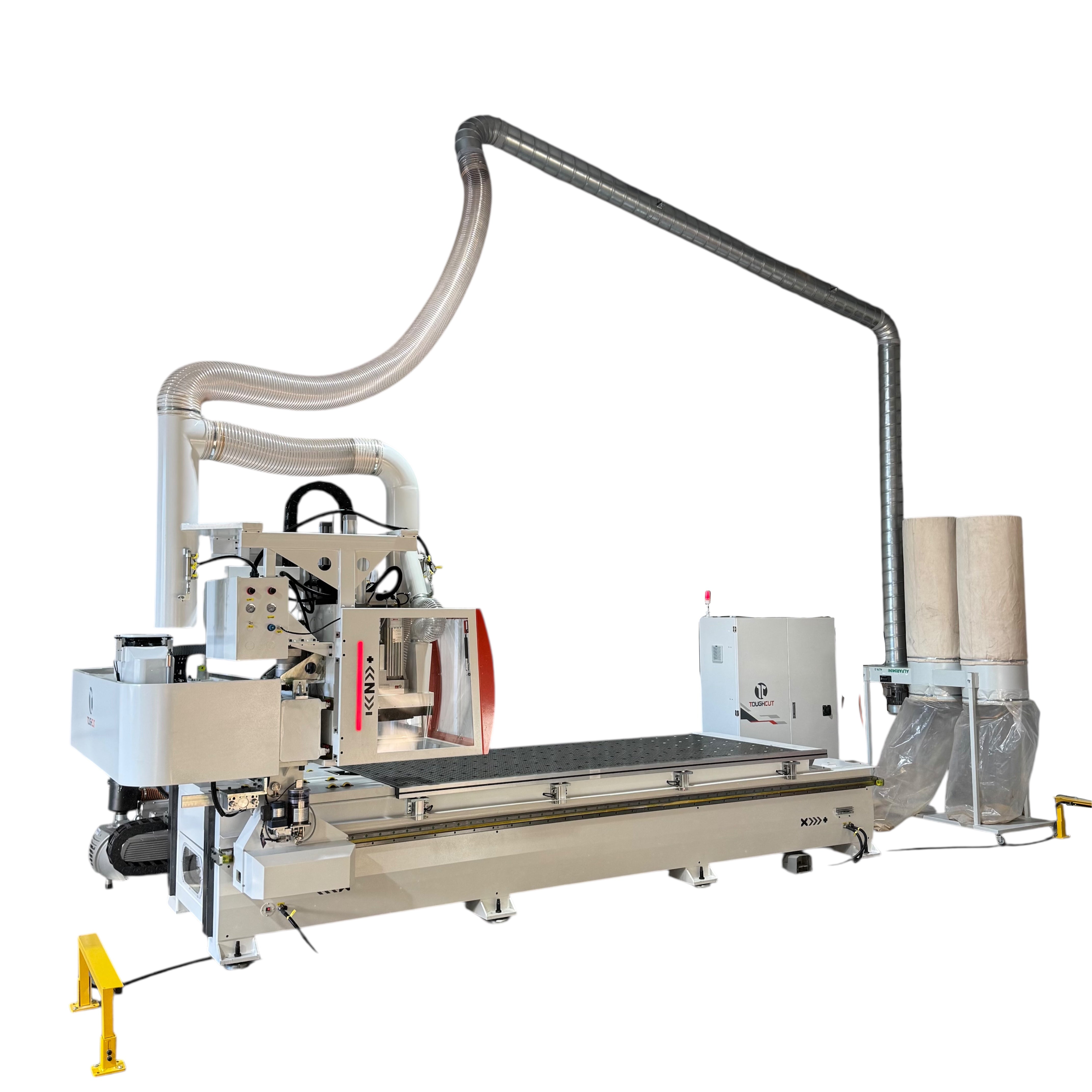

The ToughCut ZIRCON CNC Router is designed for production of custom furniture, cabinet industry and panelling. The compact yet robust working centre is suitable for cabinet makers, craftspeople, boutique professional furniture makers and workshops.
Features
- OPERATION CONTROLLER | Syntec Controller - Great system stability and easy operation with powerful functionality.

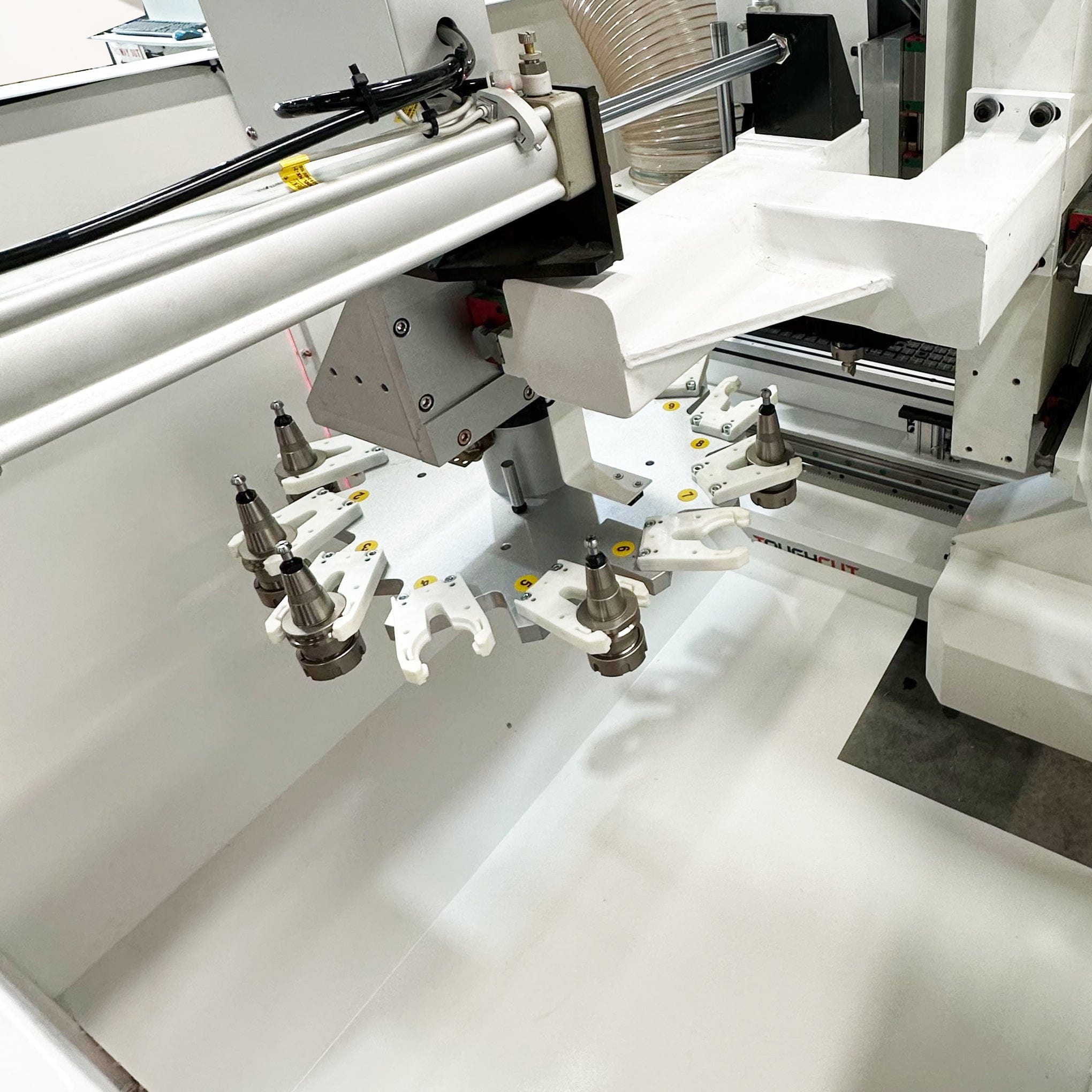

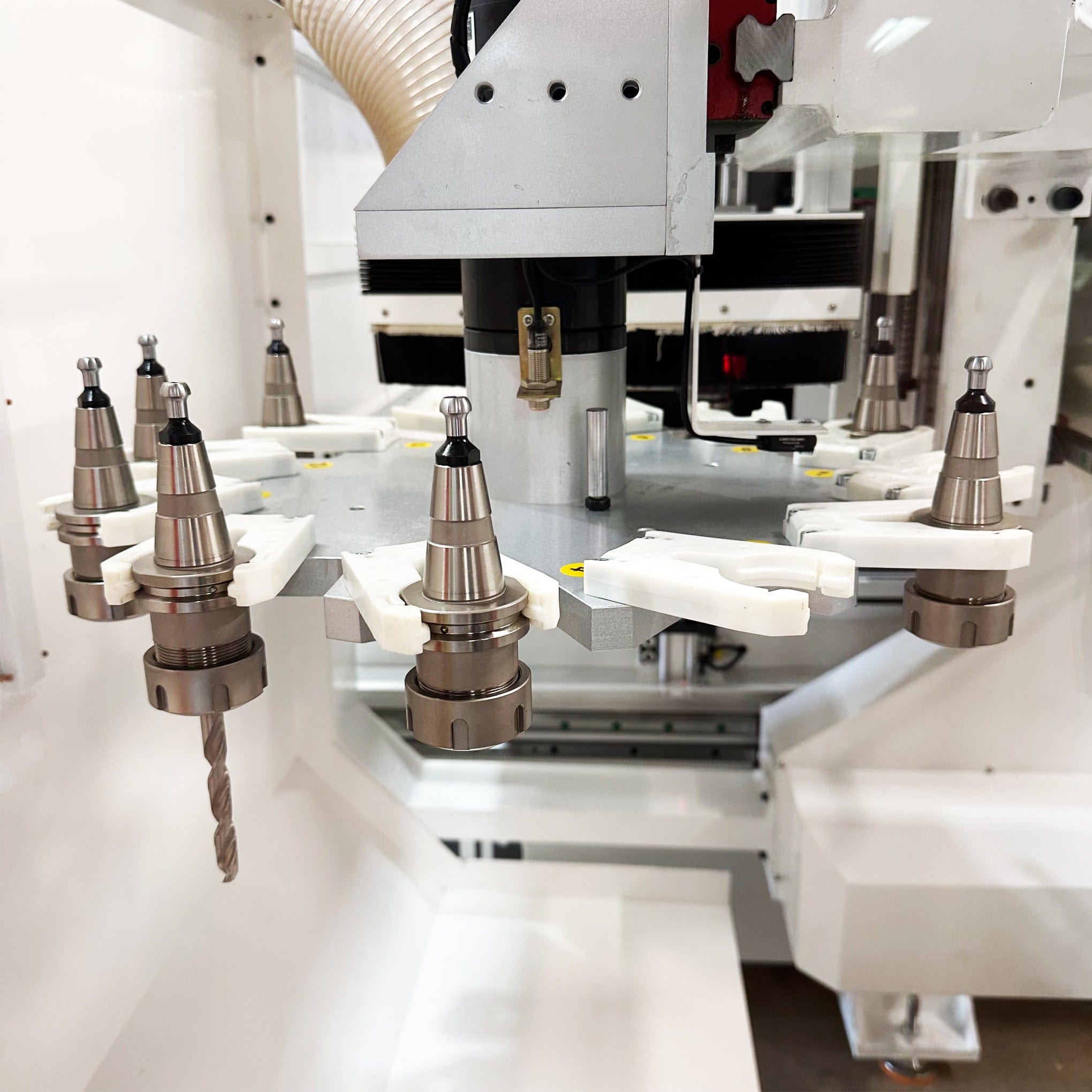

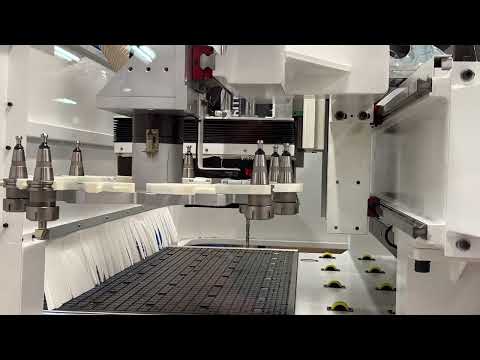

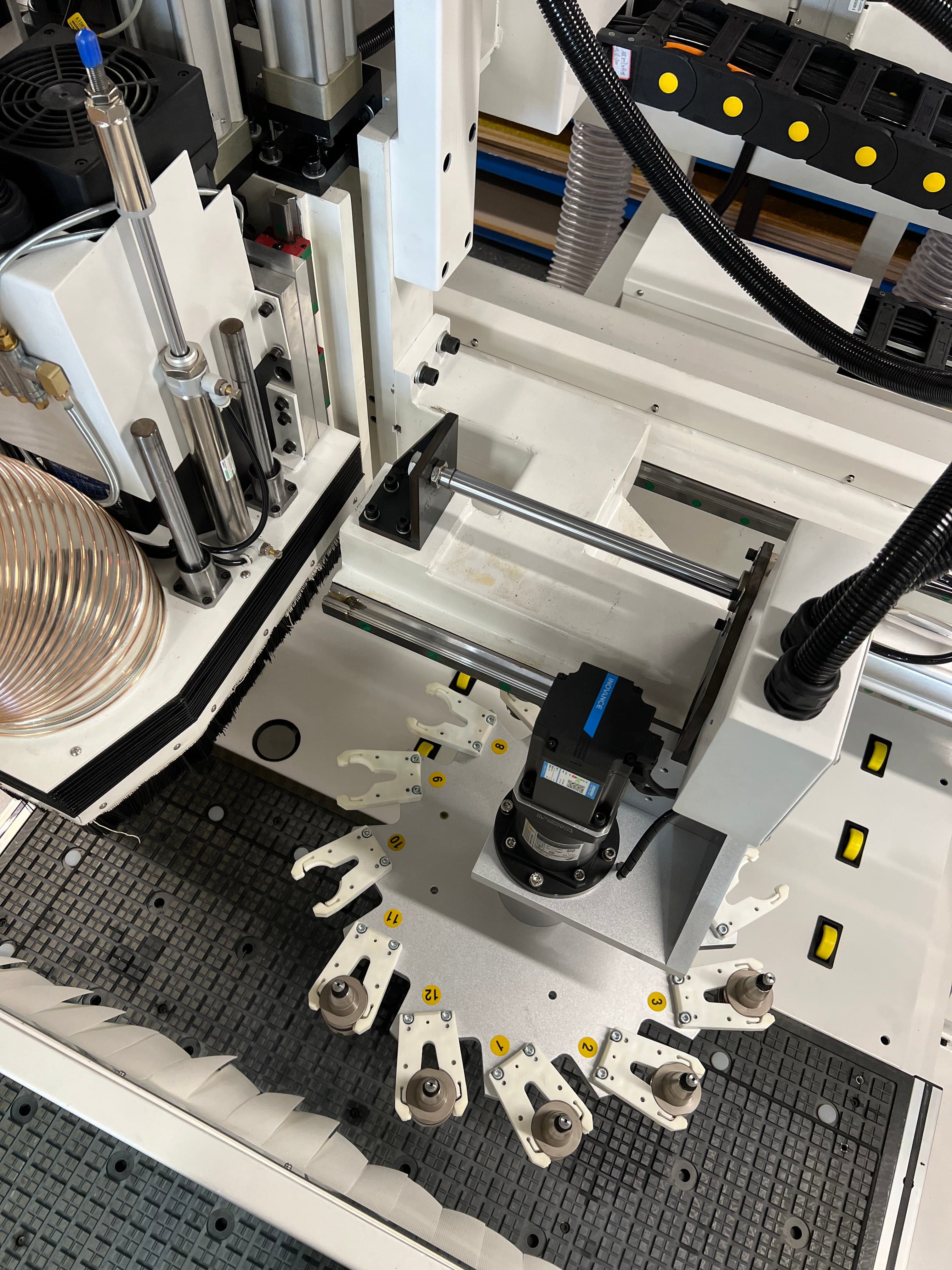

 - AUTO TOOL CHANGER | 10 (Rotary) Tool Changer with ISO30 for fast tool change and efficiency (no need for manual tool change).
 - DRIVE MOTOR | Japanese YASKAWA Servo Motor - Fast speed with signal feedback allows the machine to run smoothly at ultra low speed, reducing vibration and providing efficient torque.
 - HELICAL GEAR & RACK TRANSMISSION | Good meshing performance, smooth transmission and low noise reducing the load of each pair of gears and improving the bearing capacity of the gears.

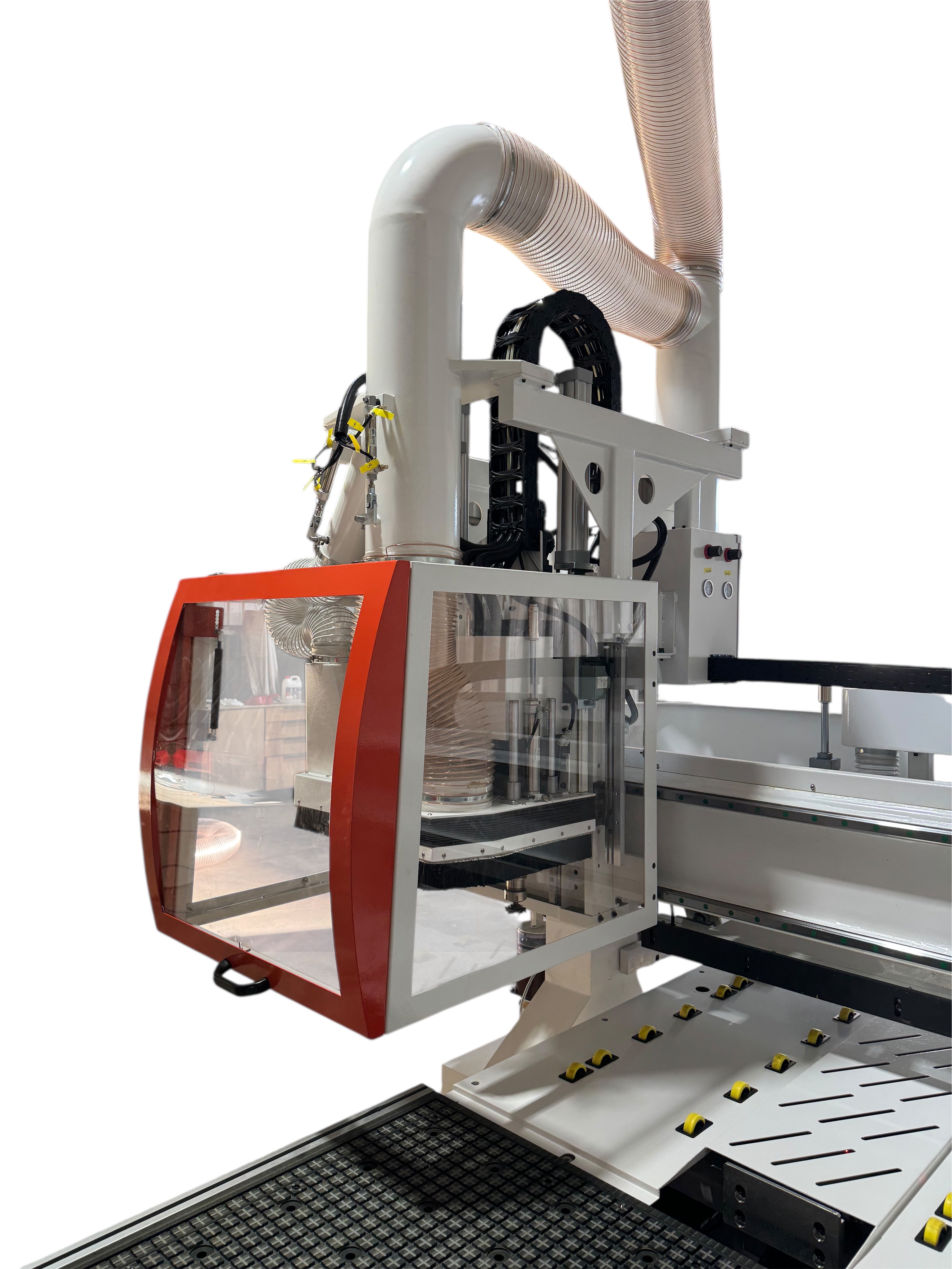

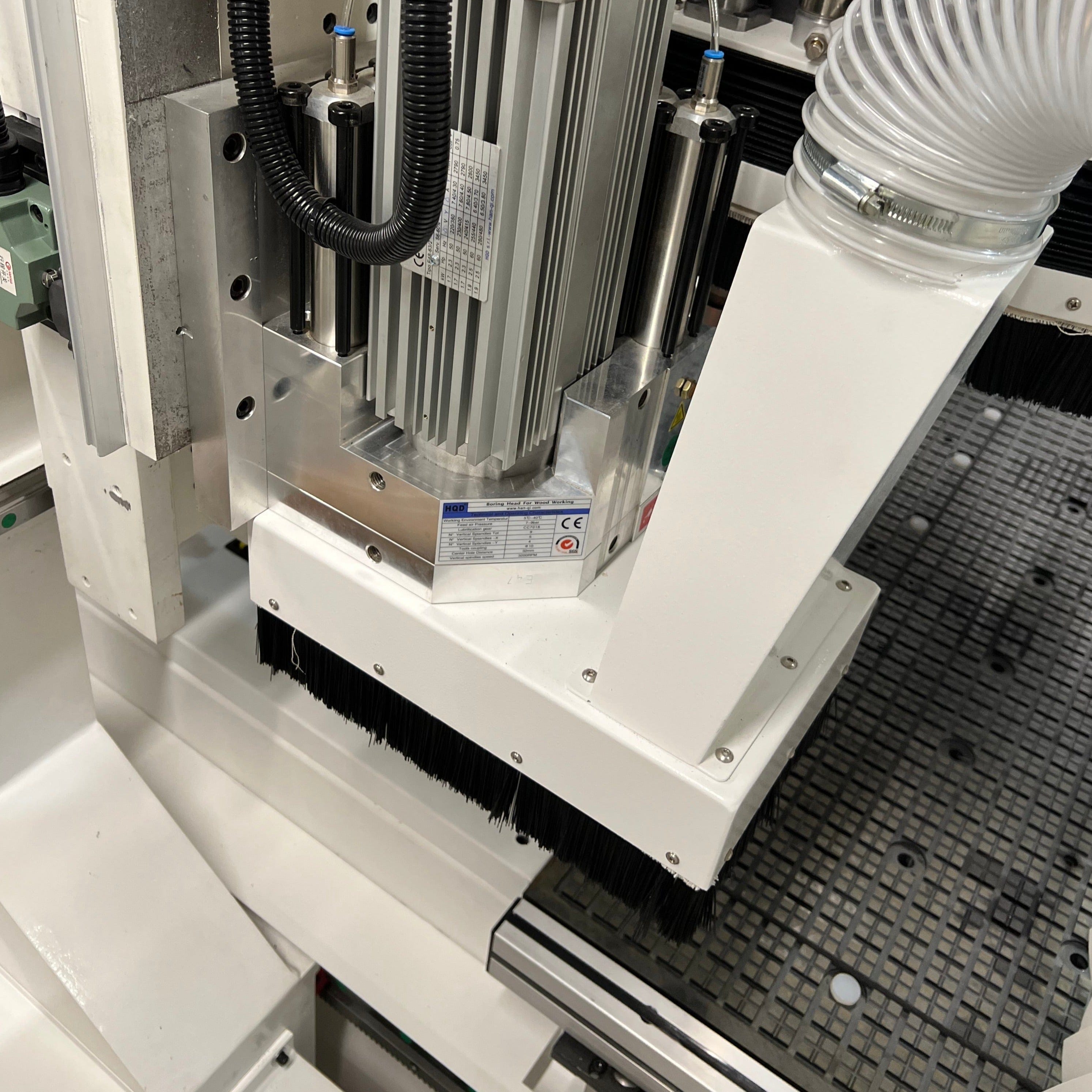

 - SPINDLE | Italian HSD 9kW ATC Spindle - HSD is the leading world company in the production of electro spindles with extreme reliability.
 - ELECTRONICS | French Schneider Electronics for safety and reliability.
 - GUIDE RAILS | HIWIN Guide Rails with sliding technology to easily drive the machine and ensure good bearing capacity.

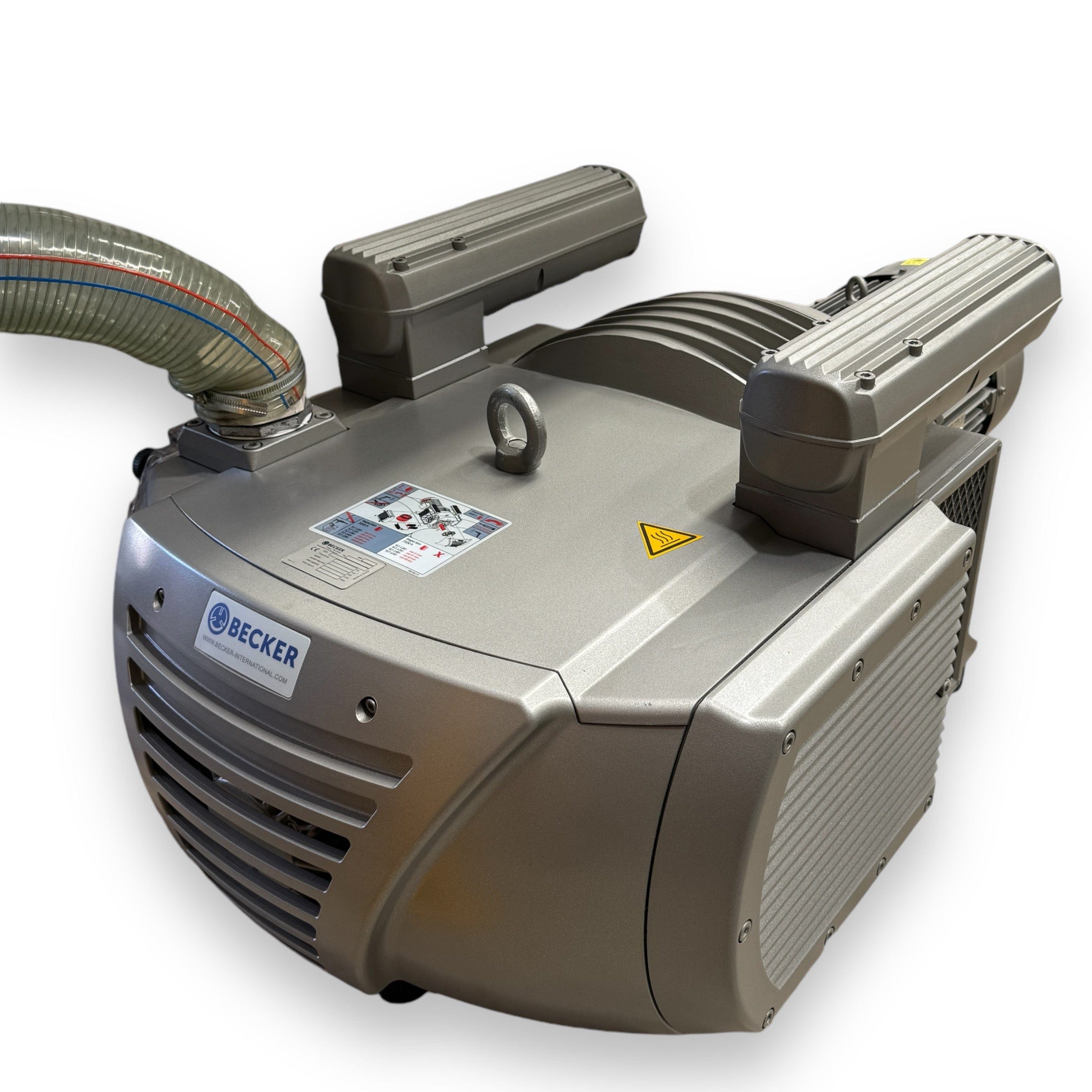

 - WORK TABLE VACUUM PUMP | 7.5kw Air Vacuum Pump to secure the workpiece.
 - MIST COOLING SYSTEM | Integrated sprayer system

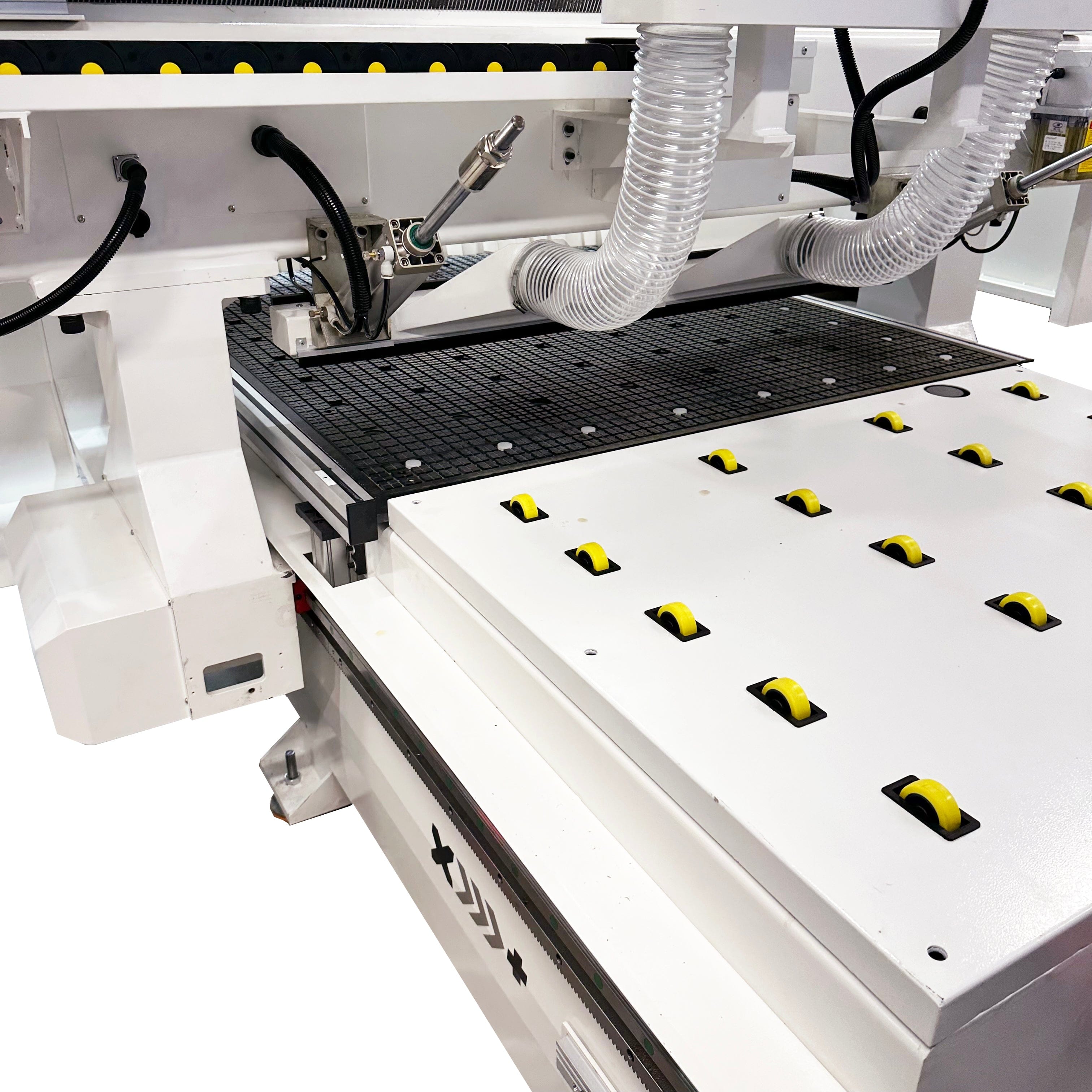

 - UNLOADING SYSTEM | Unloading system including auto pusher and cleaning extraction
 -
AUTOMATIC TOOL CALIBRATION

- IN FEED LIFTING TABLE - Available on request
 - UNLOADING TABLE - Available on request
 - BORING - FAM 9 (VERTICAL) BORING / DRILLING UNIT - Available on request

- Furniture & Wood Processing: Doors, Chairs, Cabinets, Stairs, Tables, Musical Instruments
 - Plate Processing
 - Decoration / Craft Industry: Engraving characters / patterns onto gifts, souvenirs and shaping of acrylic, PVC, MDF, artificial stone, plexi-glass, plastic, and copper and aluminium and other soft metal plate engraving and milling cutting.
 - Advertising / Signage Industry
 - Engraving : Engraving characters, numbers and other patterns on labels for products directly.
 - Architectural Models: Engraving fine window, Fencing and Wall patterns.

Additional Information
        Model
                    Type
                                        CNC Router
                    SKU
                                        904770
                    Series
                                        ZIRCON
                    Part Number
                                        ZIRCON 2.0 TCVA30-1325
                    Brand
                                        ToughCut
        Technical - Main
                    Power Source
                            Power Source
                                            Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
                                                    415V 50Hz Three Phase
                    Working Area
                                        1300mm x 3100mm
                    Air Connection
                                        Required
                    Air Supply (CFM)
                            Air Supply (CFM)
                                            CFM stands for Cubic Feet per Minute and is the most common way to measure airflow.
                                                    180L / Min. @ 6 Bar
                    Auto Oil Lubrication
                                        Yes
                    Auto Tool Calibration
                                        Yes
                    Command Language
                                        G-Code
                    Computer Interface
                                        USB
                    Drive Motor Brand
                                        Yaskawa (Japan)
                    Drive Motors
                                        Servo Motor + Driver
                    Frame
                                        Heavy Steel Tube Structure
                    Label Printing Terminal
                                        Not Available
                    Lifting (In Feed) Table
                                        Not Available
                    Linear Guide Rails
                                        Rack and Piinion Drive Rail Linear Bearings by Hiwin (Taiwan)
                    Mist Cooling Spray System
                                        Optional
                    Moving / Working Speed
                                        25m/Min.
                    No. of Tool Changers
                                        10
                    Operating Control System
                                        SYNTEC
                    Pump
                                        7.5KW Air Vacuum Pump (Work Table)
                    Resolution (Location Precision) (DPI)
                            Resolution (Location Precision) (DPI)
                                            DPI, or dots per inch, is a measure of the resolution of a printed document or digital scan. The higher the dot density, the higher the resolution of the print or scan. Typically, DPI is the measure of the number of dots that can be placed in a line across one inch, or 2.54 centimeters.
                                                    <0.03mm
        Dimensions
                    Product Weight (Net Weight)
                                        1600kg
        Features
                    Standard Inclusions
                                        Excludes Delivery + Installation / Commissioning + Training
        Workshop (Site) Info
                    Air Connection
                                        Required
                    Air Supply (CFM)
                            Air Supply (CFM)
                                            CFM stands for Cubic Feet per Minute and is the most common way to measure airflow.
                                                    180L / Min. @ 6 Bar
                    Computer Interface
                                        USB
                    Dust Hose Inlet Diameter
                                        1 x 150mm
                    Pump
                                        7.5KW Air Vacuum Pump (Work Table)
                    Running Environment Temp
                                        0-40°C
                    Footprint
                                        3800mm x 2800mm
                    Other Requirements
                                        Tooling (Depending on Application)
        Warranty
                    Warranty (Australia)
                            Warranty (Australia)
                                            All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
                                                    1 Year
                    Warranty (Important for International Customers)
                            Warranty (Important for International Customers)
                                            Important Warranty Notice for International CustomersPlease note that purchases made from outside Australia are undertaken at the customer’s own risk. Our product warranties are generally valid within Australia only. While we are happy to assist with warranty-related issues, the following conditions apply for international orders:Any warranty claim requires the item to be returned to us in Australia at the customer’s expense.If the claim is accepted, Beyond Tools will carry out the repair or replacement under the terms of the Australian warranty.Return shipping of the repaired or replacement item must also be paid by the customer.We do not cover international freight, import duties, or customs clearance costs.We strongly recommend that international customers consider this before purchasing. If you have any questions, please feel free to contact us before placing your order.
                                                    See Notes
        Packaging + Shipping
                    Shipping Length
                                        3700mm
                    Shipping Width
                                        2840mm
                    Shipping Height
                                        220mm
                    Shipping Weight (Gross)
                                        1648kg
                    Shipping Notes
                            Shipping Notes
                                            It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
                                                    This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end).
