Semi Automatic Hot Melt Edge Bander Nickel 35 by Toughcut

ToughCutSKU: 8000875

Price:
Sale price$21,990.00
Dealers

Status

Available

Description

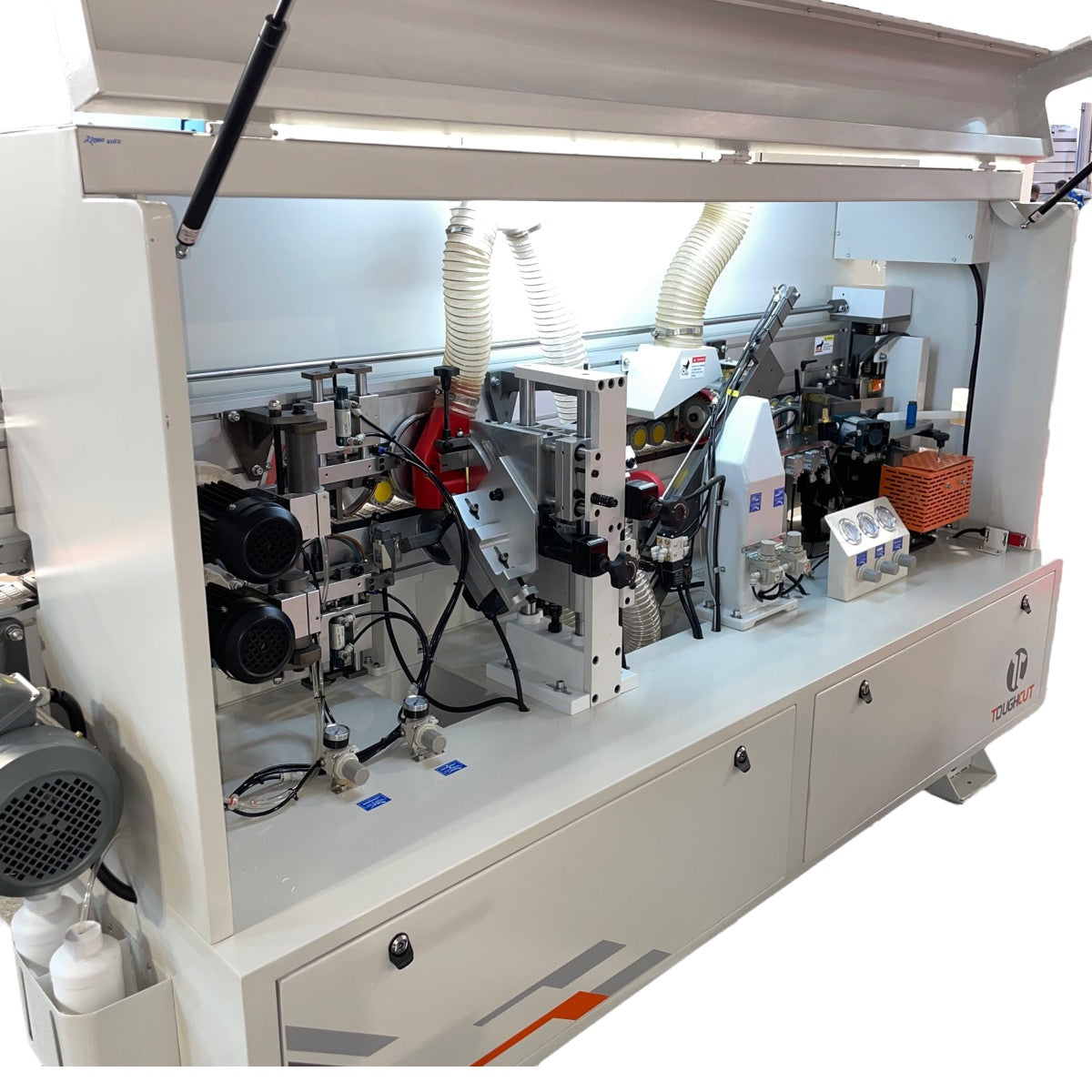

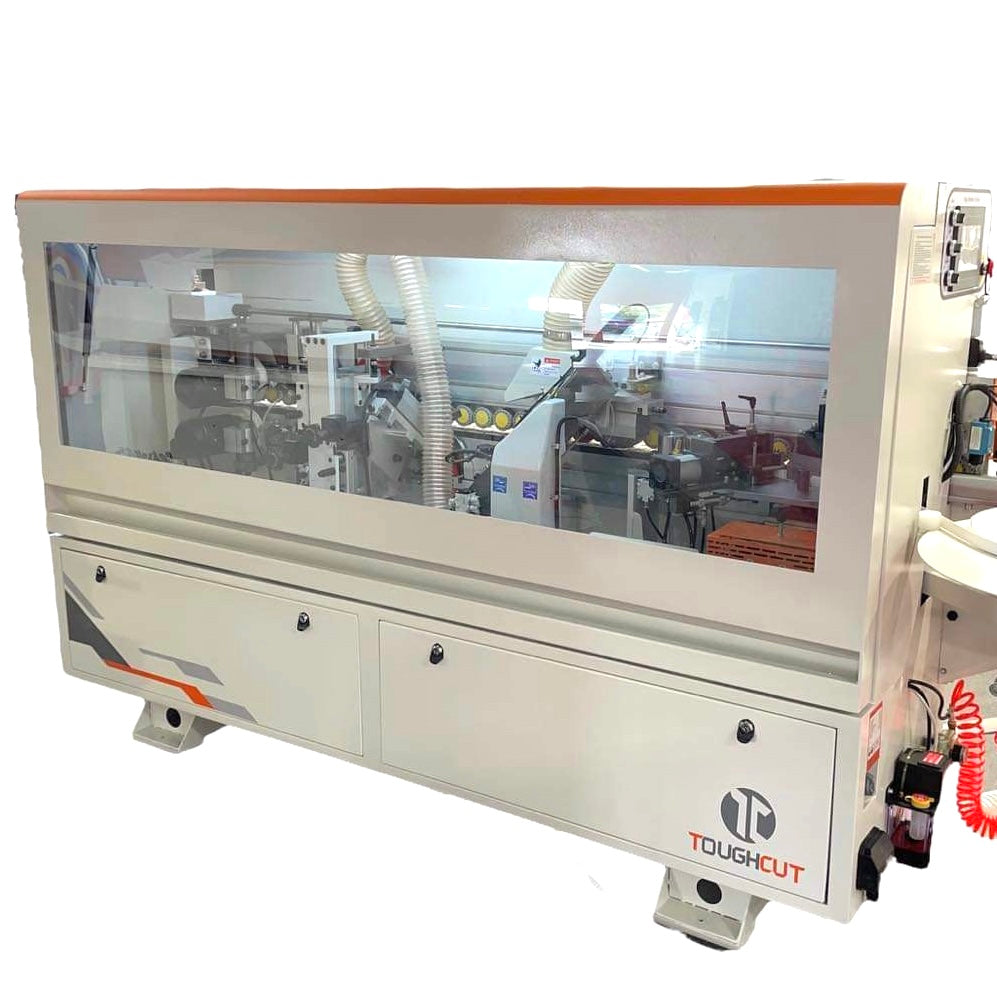

The Toughcut Nickel 35 edgebander is designed for the smaller cabinet shops with a small footprint whilst still having many features of it's bigger counterpart in the Rutile range.

The Nickel 35 provides a quality finish with a feed speed of 10m per minute, double end saws along with flush trimming, glue scraping and buffing.

Nickel edgebanders offer consistent performance, superior reliability with simple, easy to use (uncomplicated) adjustments.

A great starter machine for Hot Melt Edgebanding.

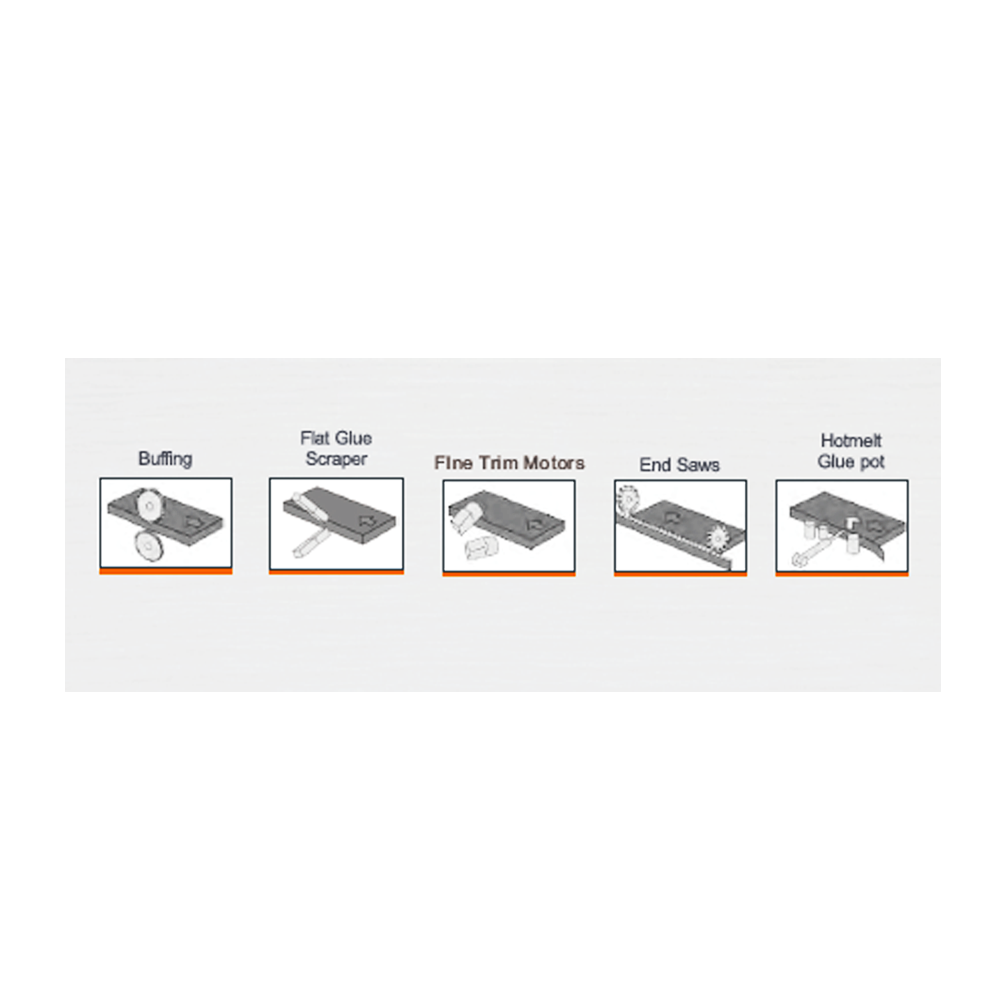

Features:

  • END CUTTING UNIT – With two independent high-frequency motors to cut the front and rear edge. Each operating motor is equipped with a copying device for accurate positioning of blades in relation to the cutting point.

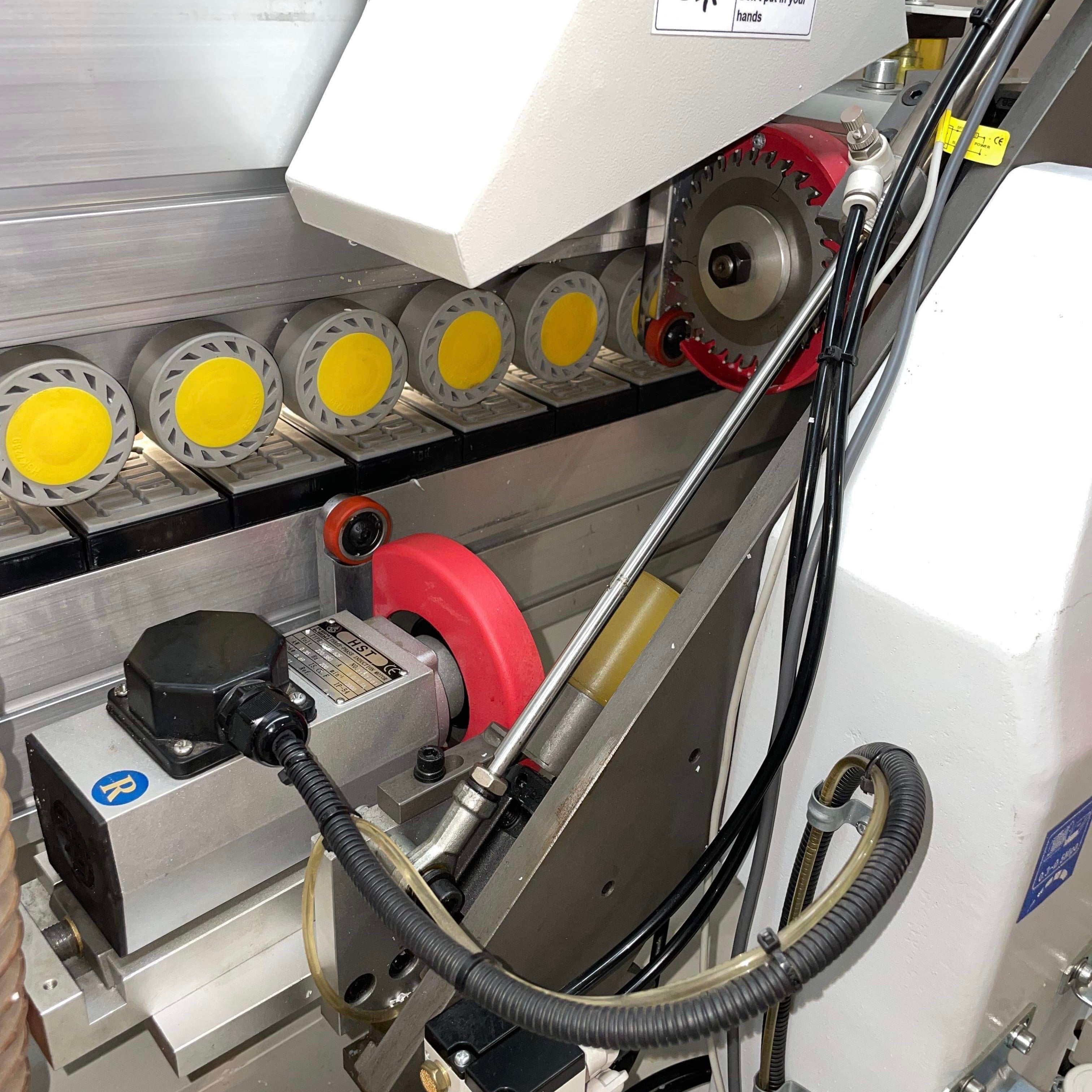

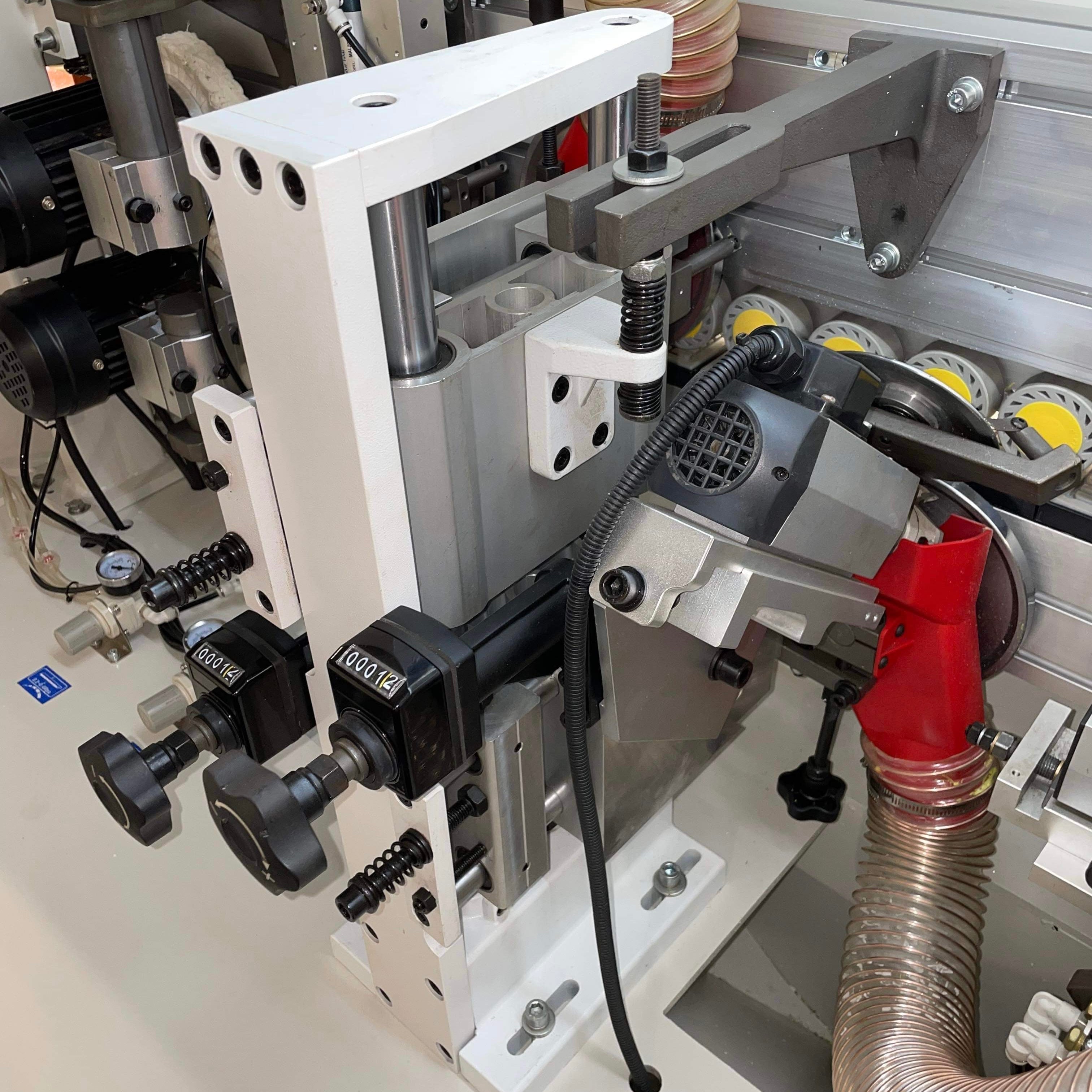

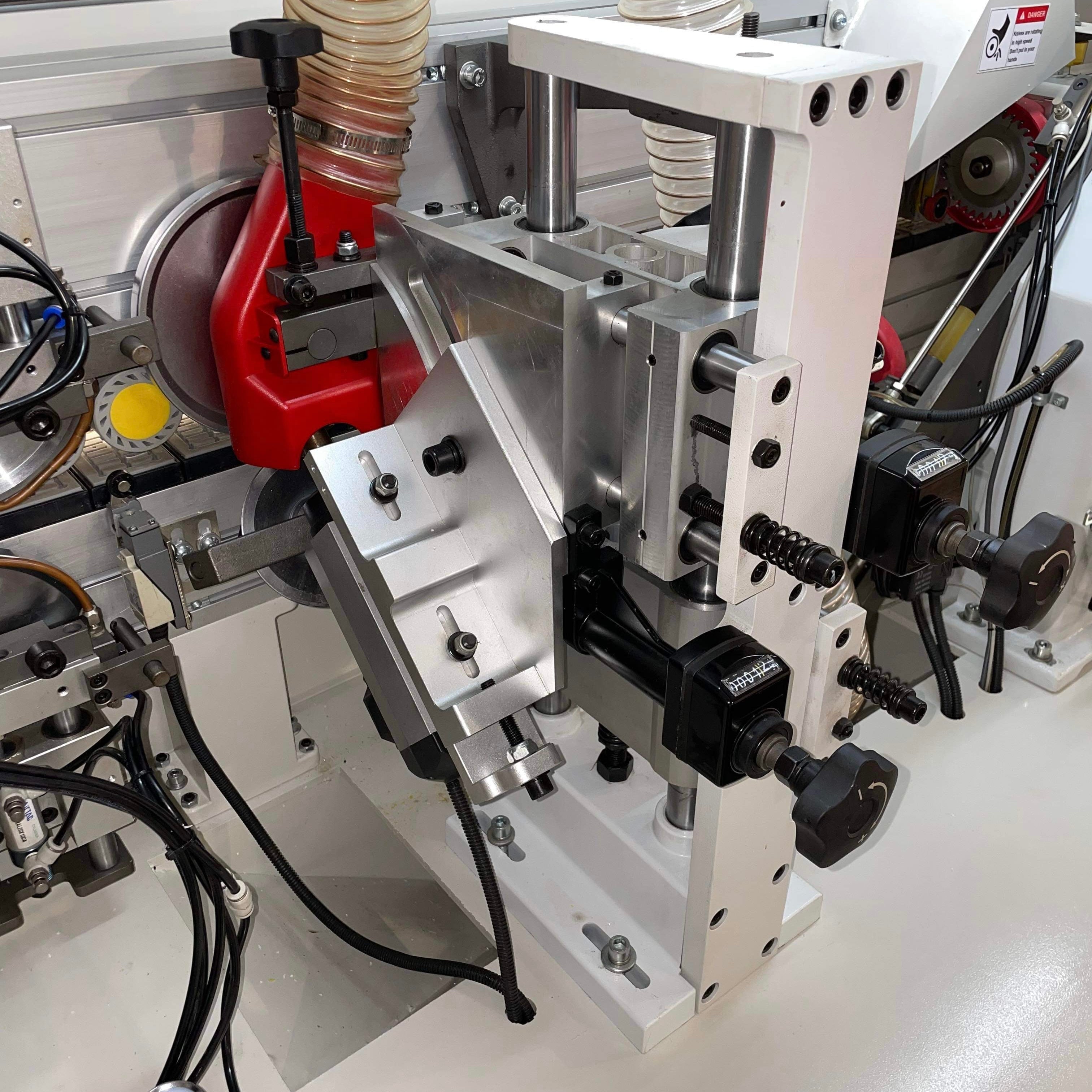

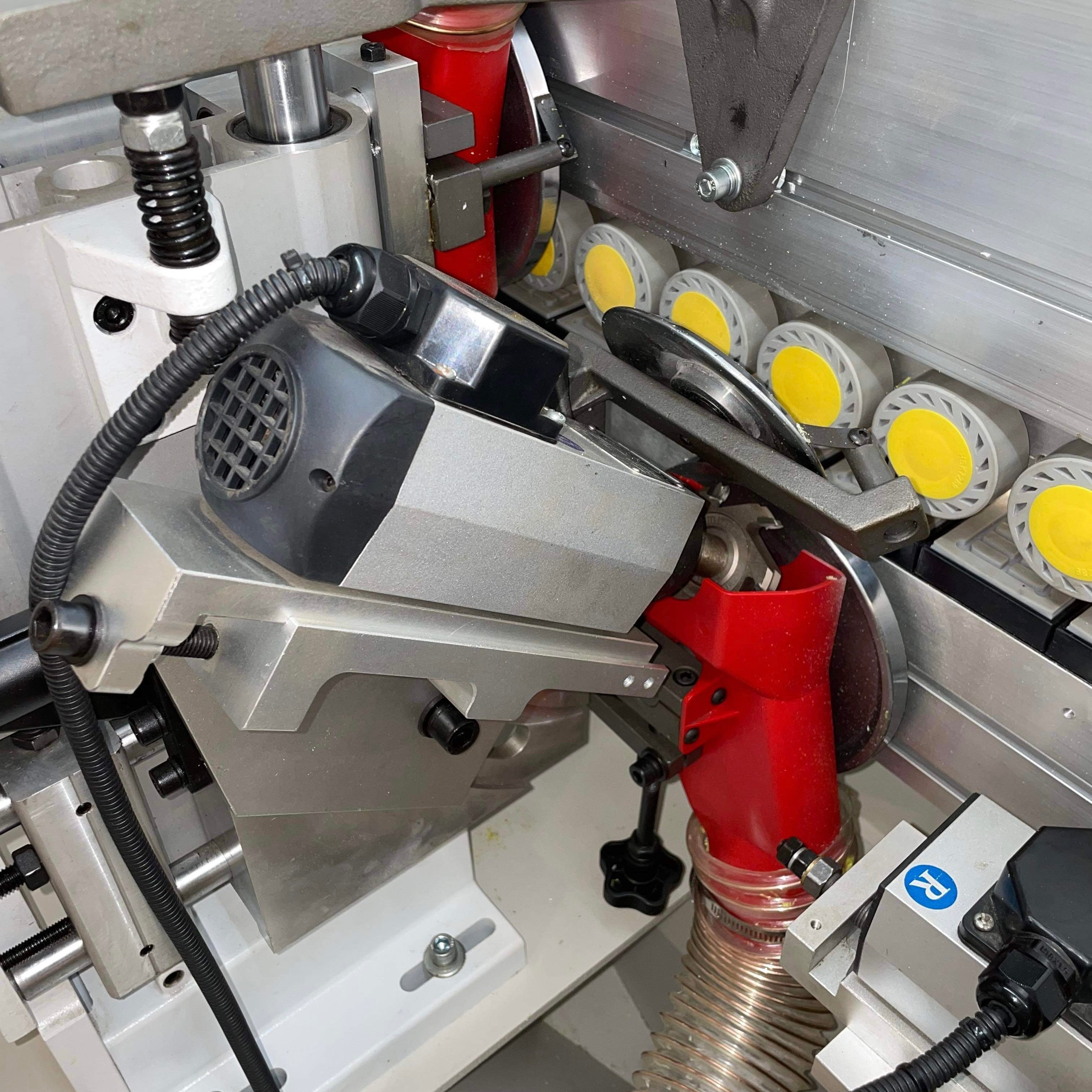

  • RADIUS TRIMMING

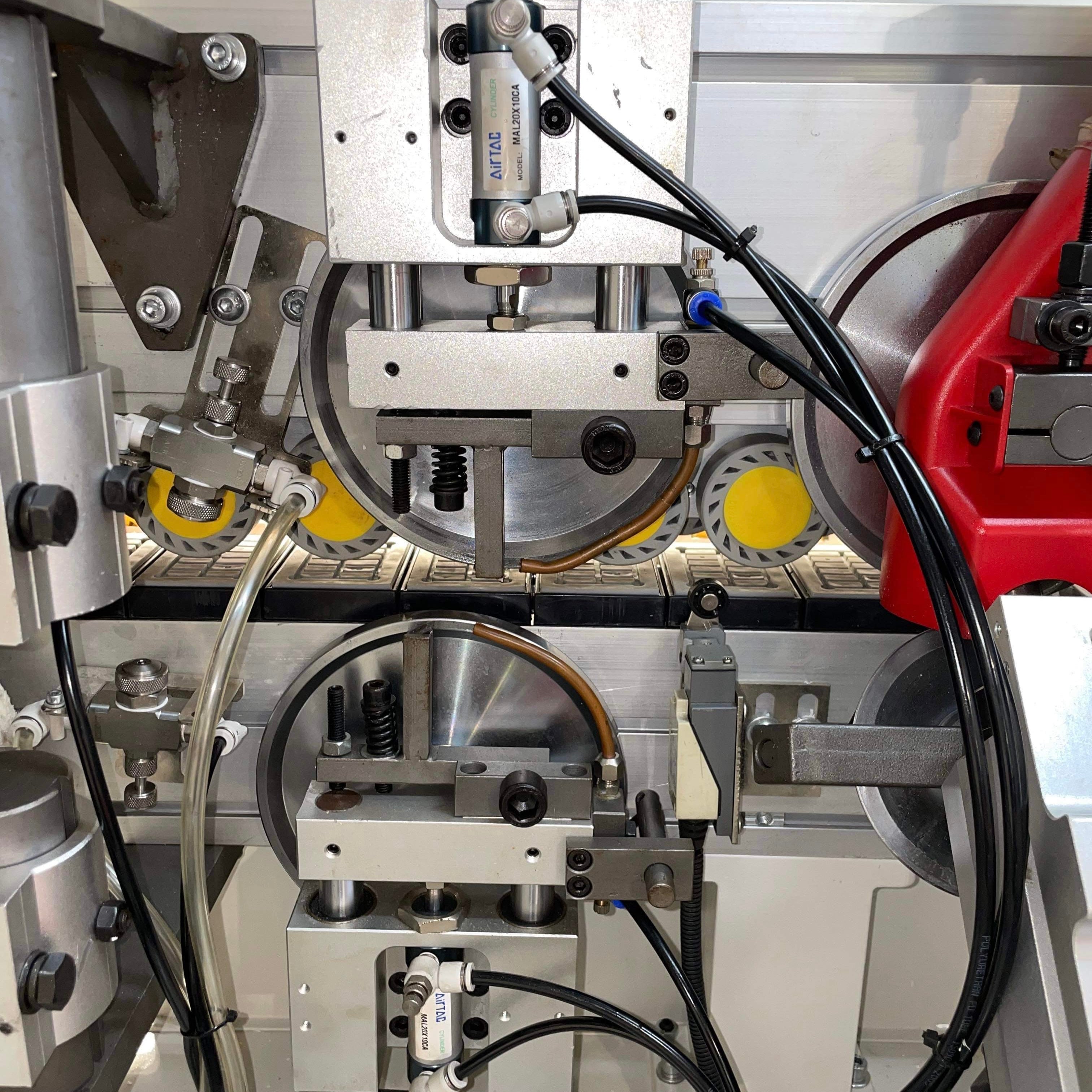

  • FLAT GLUE SCRAPERS

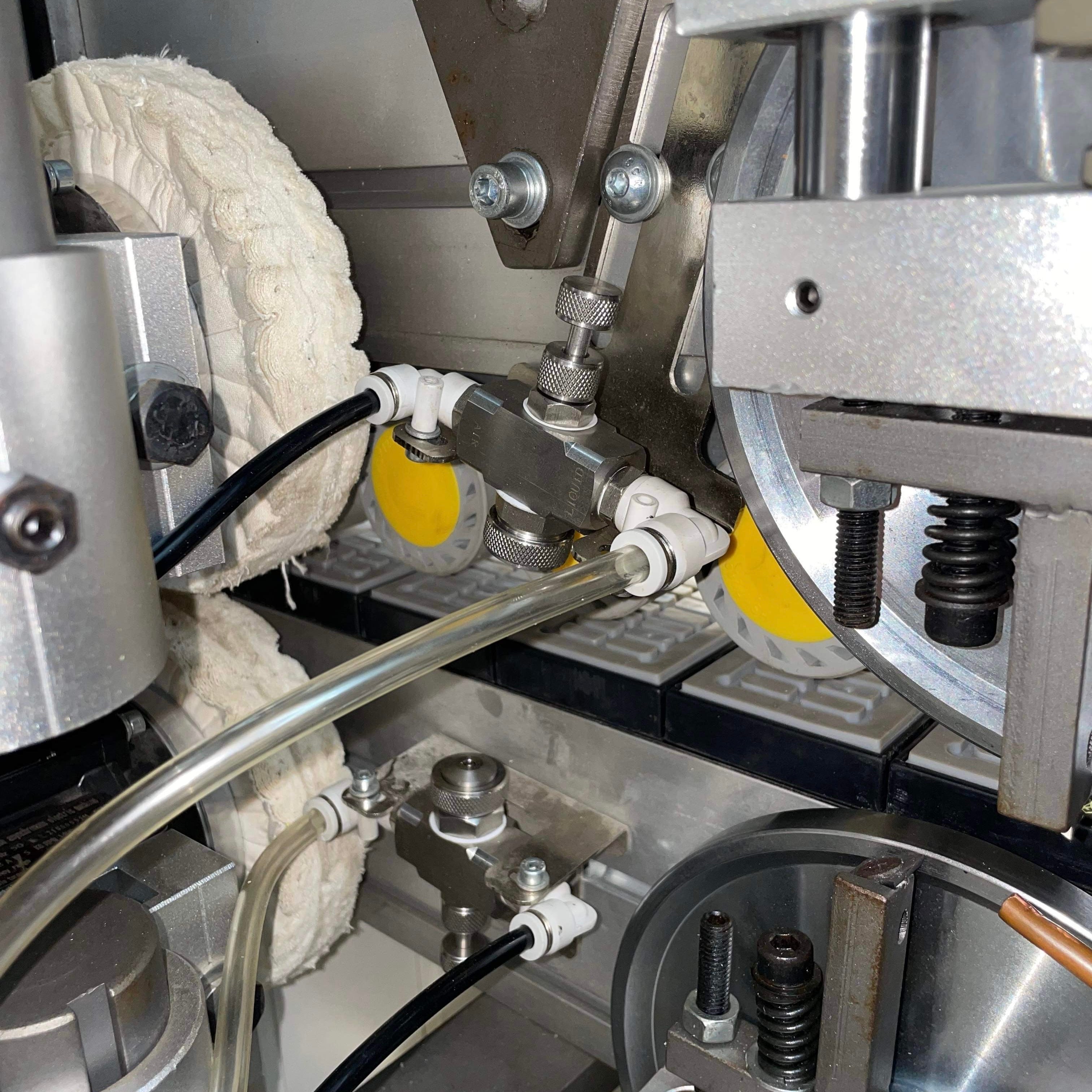

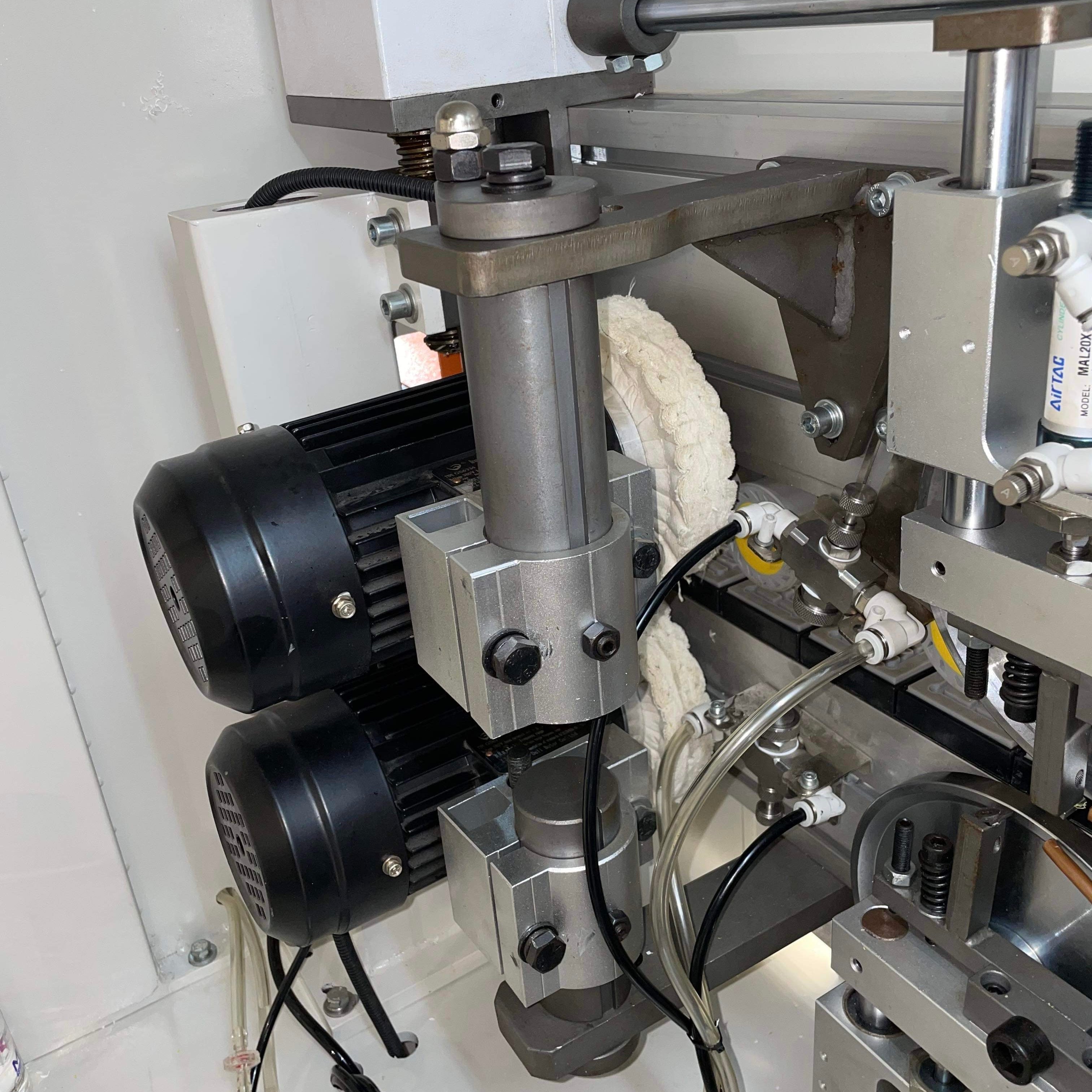

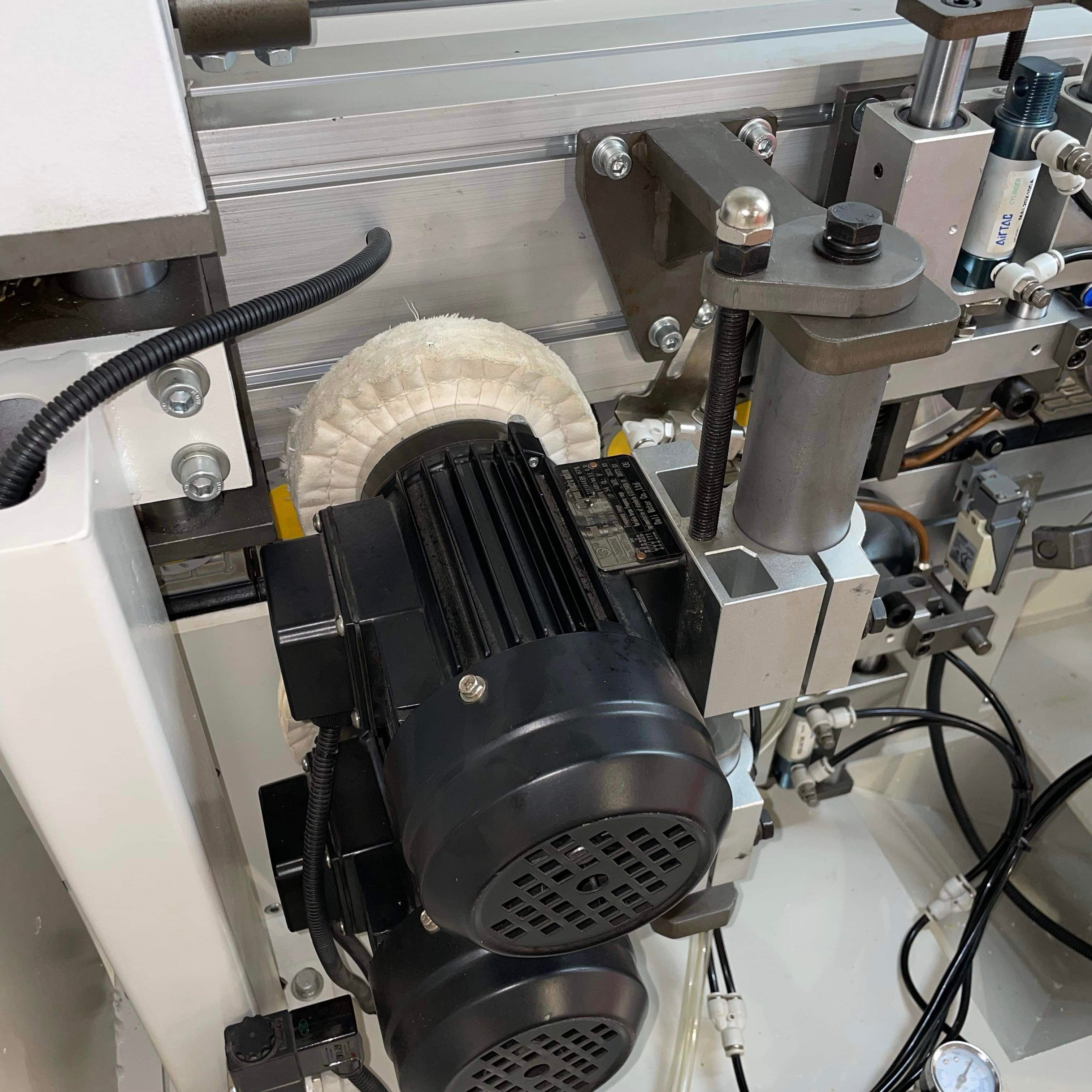

  • BUFFING STATIONS – With Two independent motors for the buffing/polishing of the edge
  • CLEANING SPRAYER – Dispenses liquid spraying agent to ensure optimal buffing and cleaning

Additional Information

Model
Type
Edgebander
SKU
8000875
Part Number
NICKEL 35-2 415V
Brand
ToughCut
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Edging Thickness
0.4-2mm
Feed Speed
10m / Min.
Material (Stock) - Minimum Length
120 mm
Material (Stock) - Minimum Width
80 mm
Material (Stock) - Maximum Thickness
10-60mm

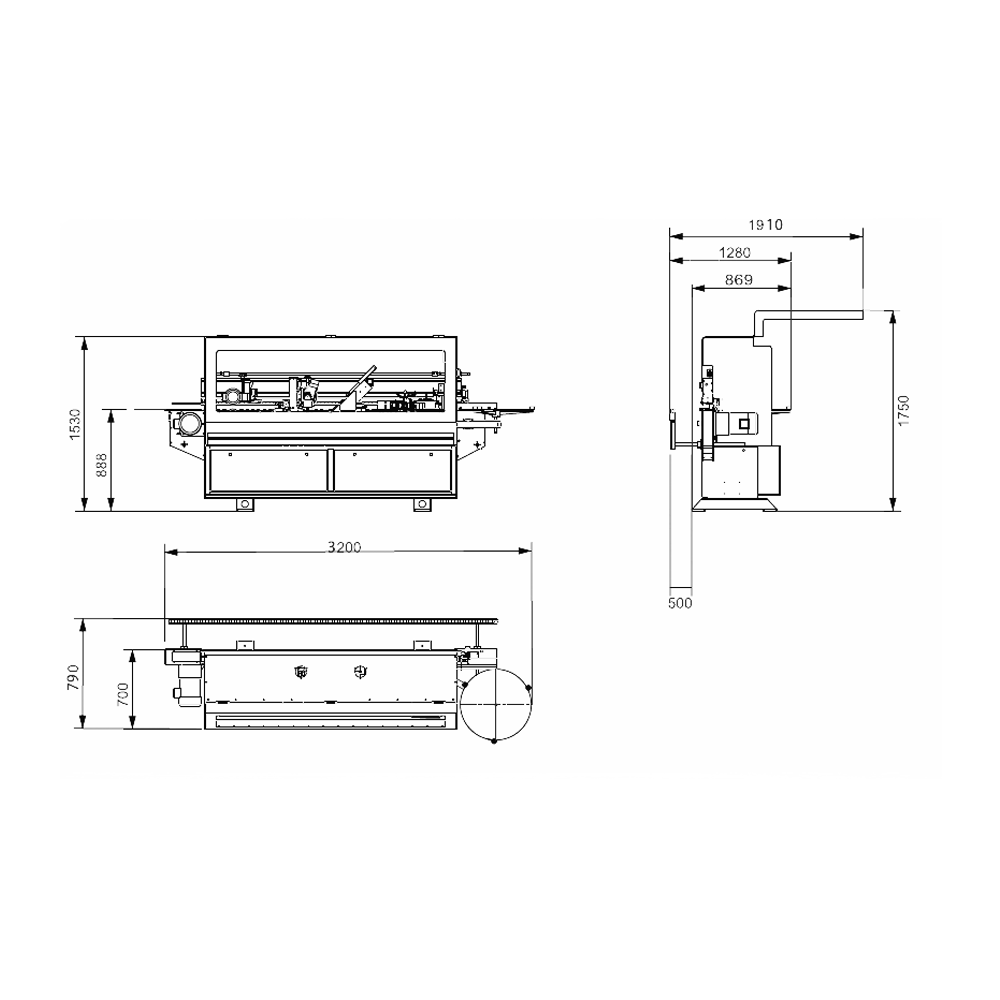

Dimensions
Product Length
3400 mm
Product Width
790 mm
Product Height
1530 mm
Product Weight (Net Weight)
917 kg
Price Vs Quality
Quality
Economy
Safety
Dust Port
2 x 100mm
Workshop (Site) Info
Other Requirements

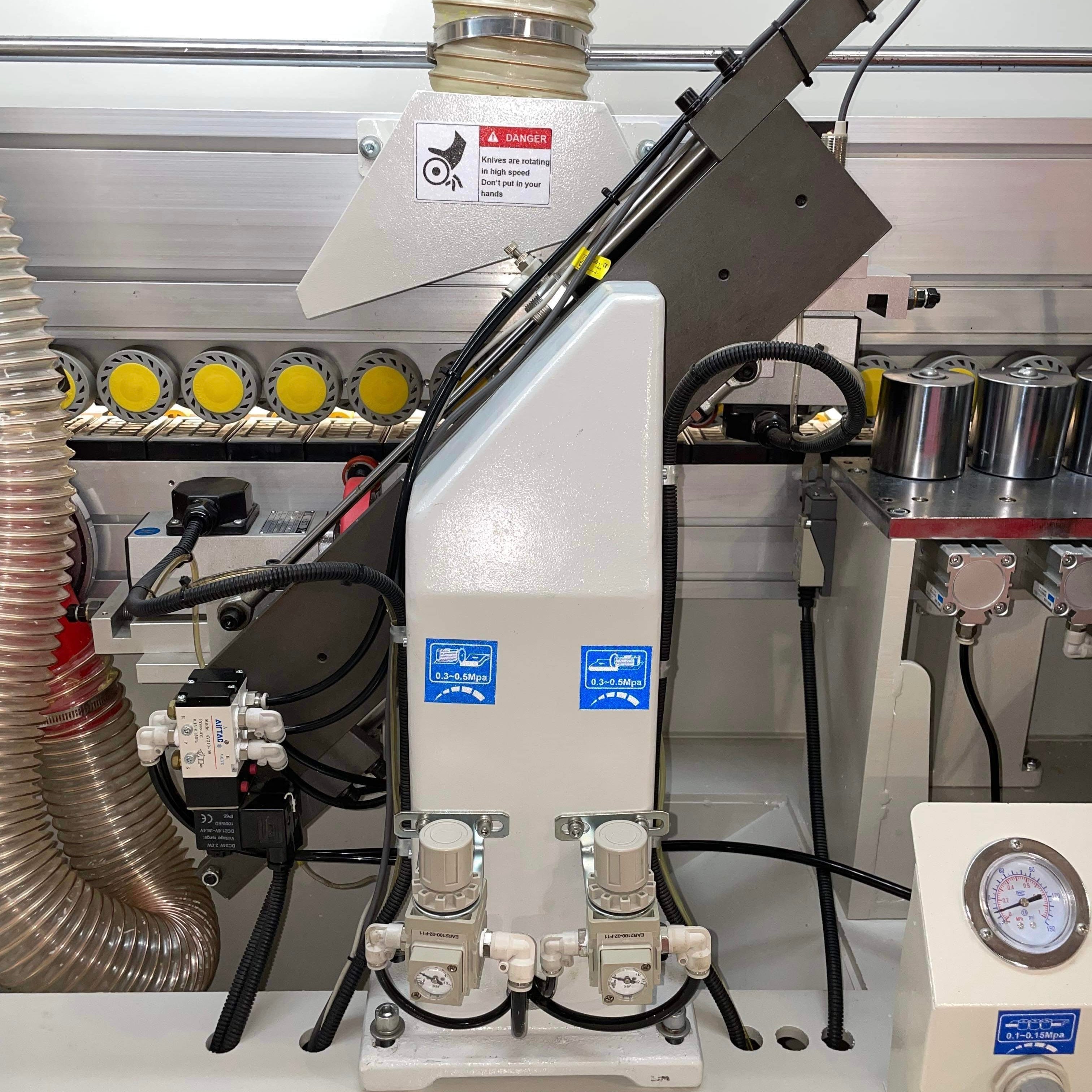

6 Bar Compressed Air
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Packaging + Shipping
Shipping Length
3200 mm
Shipping Width
900 mm
Shipping Height
1700 mm
Shipping Weight (Gross)
917.0 kg
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end). This product requires a skid / pallet / crate in order to safely transport via road.
