Status
Available
Description

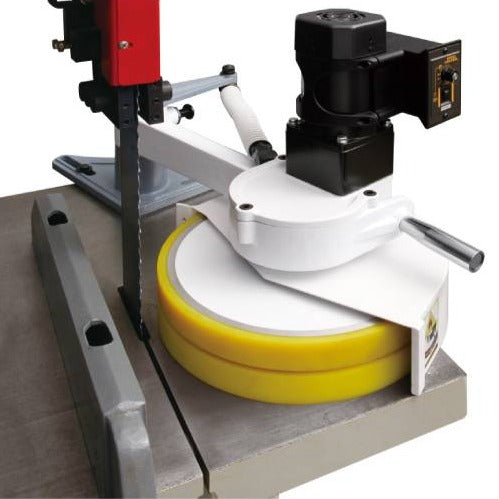

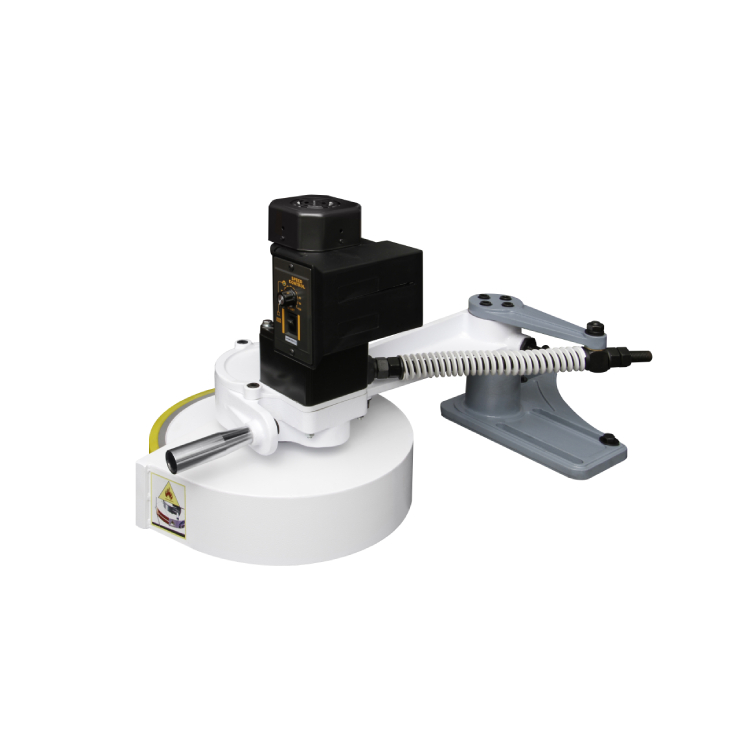

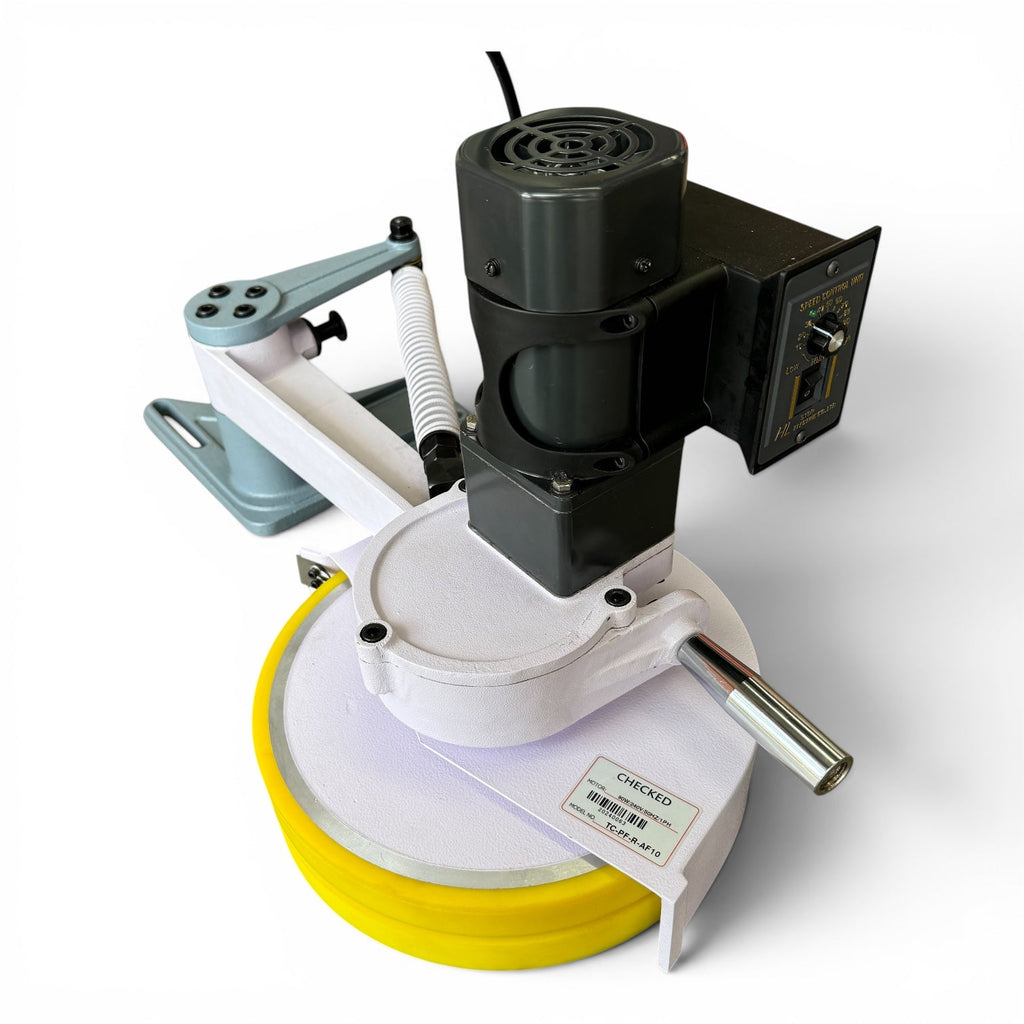

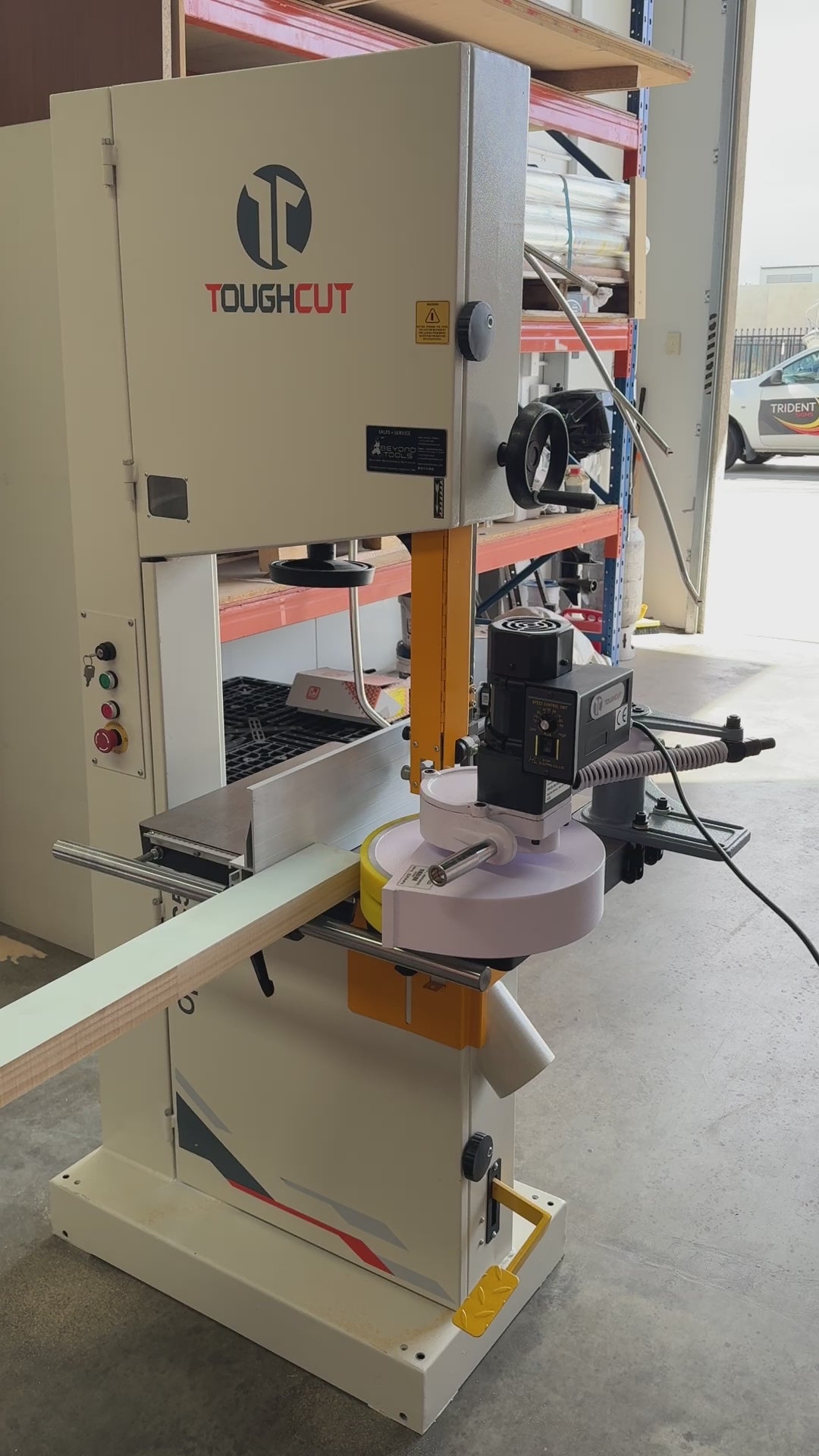

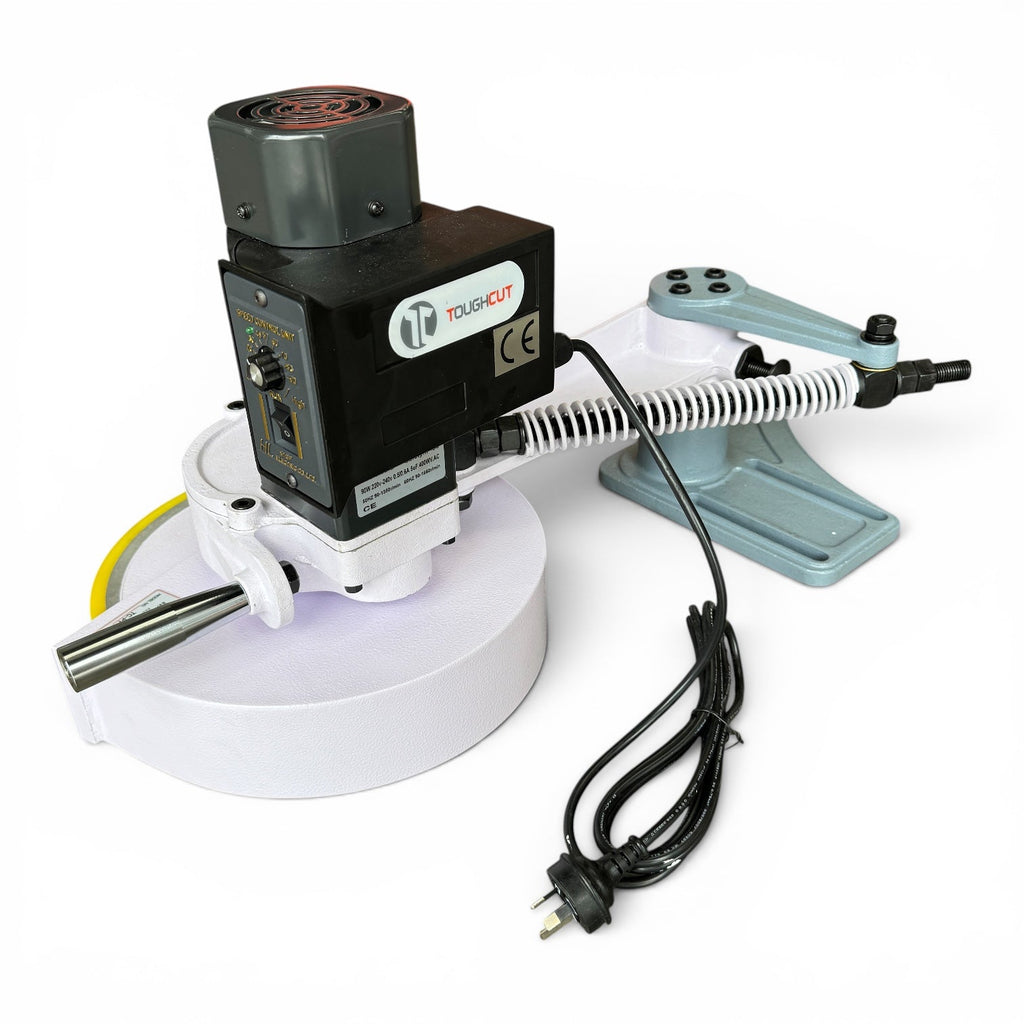

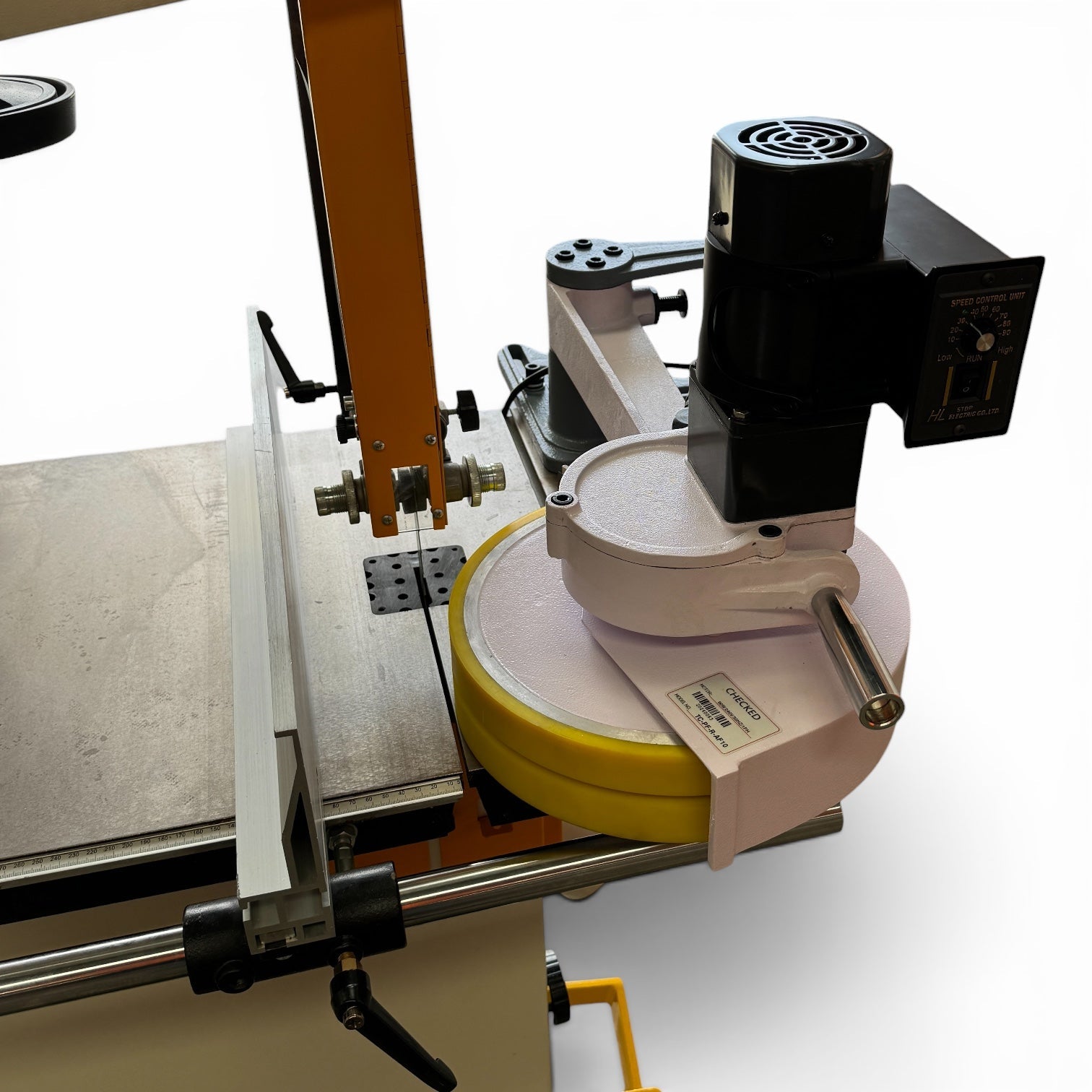

The AF10 Giant Feeder is ideal for medium-duty use with a bandsaw over 600mm (24") and it features a spring-loaded mechanism that ensures smooth and accurate cuts. AF10 is a superior alternative to using standard 3- and 4-roller feeders for resawing. A spring-loaded cover automatically opens when a workpiece is introduced, enabling it to handle heavier boards and cuts compared to the lighter-duty AF06, thanks to its heavier spring.
Features
- 1HP motor
- 2 rollers

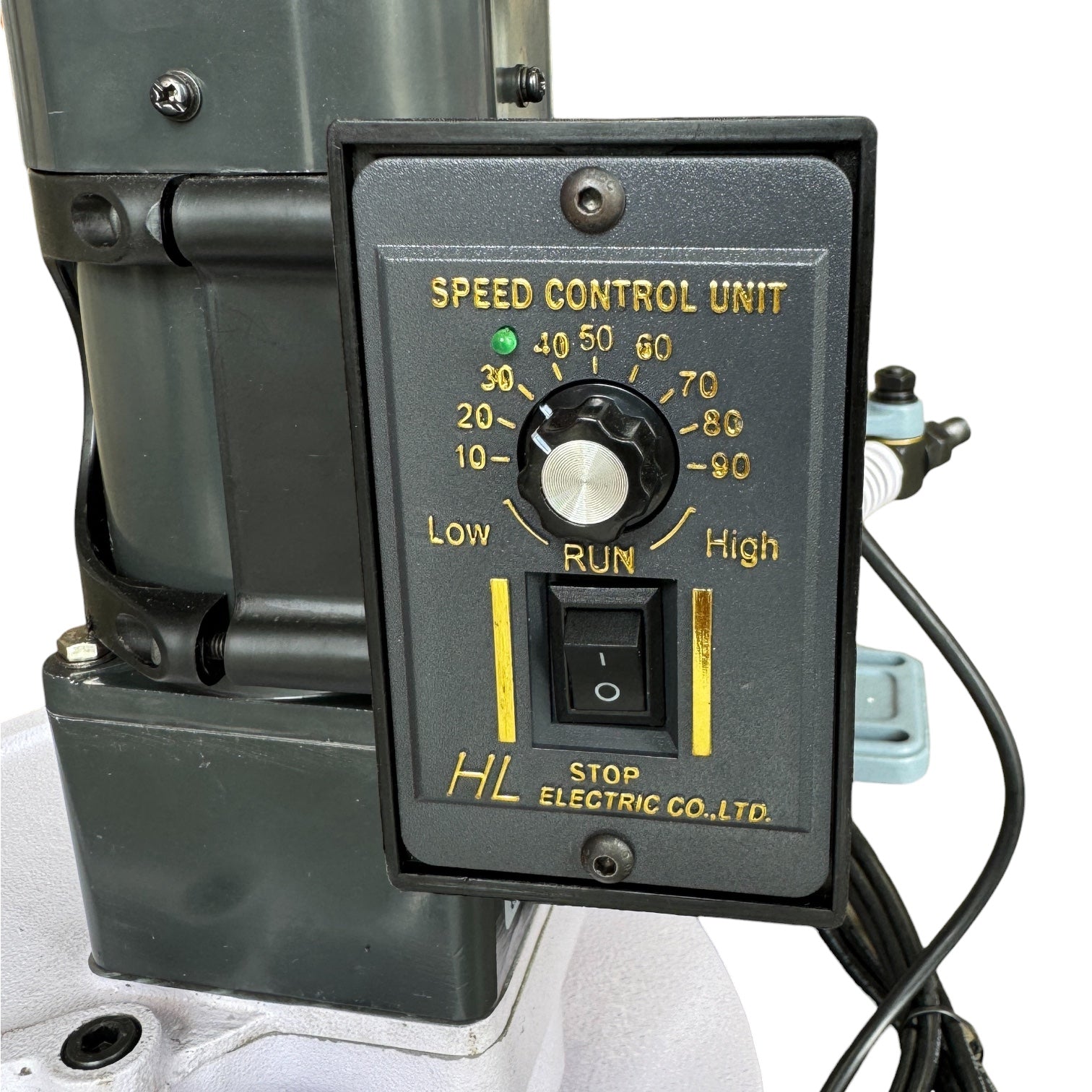

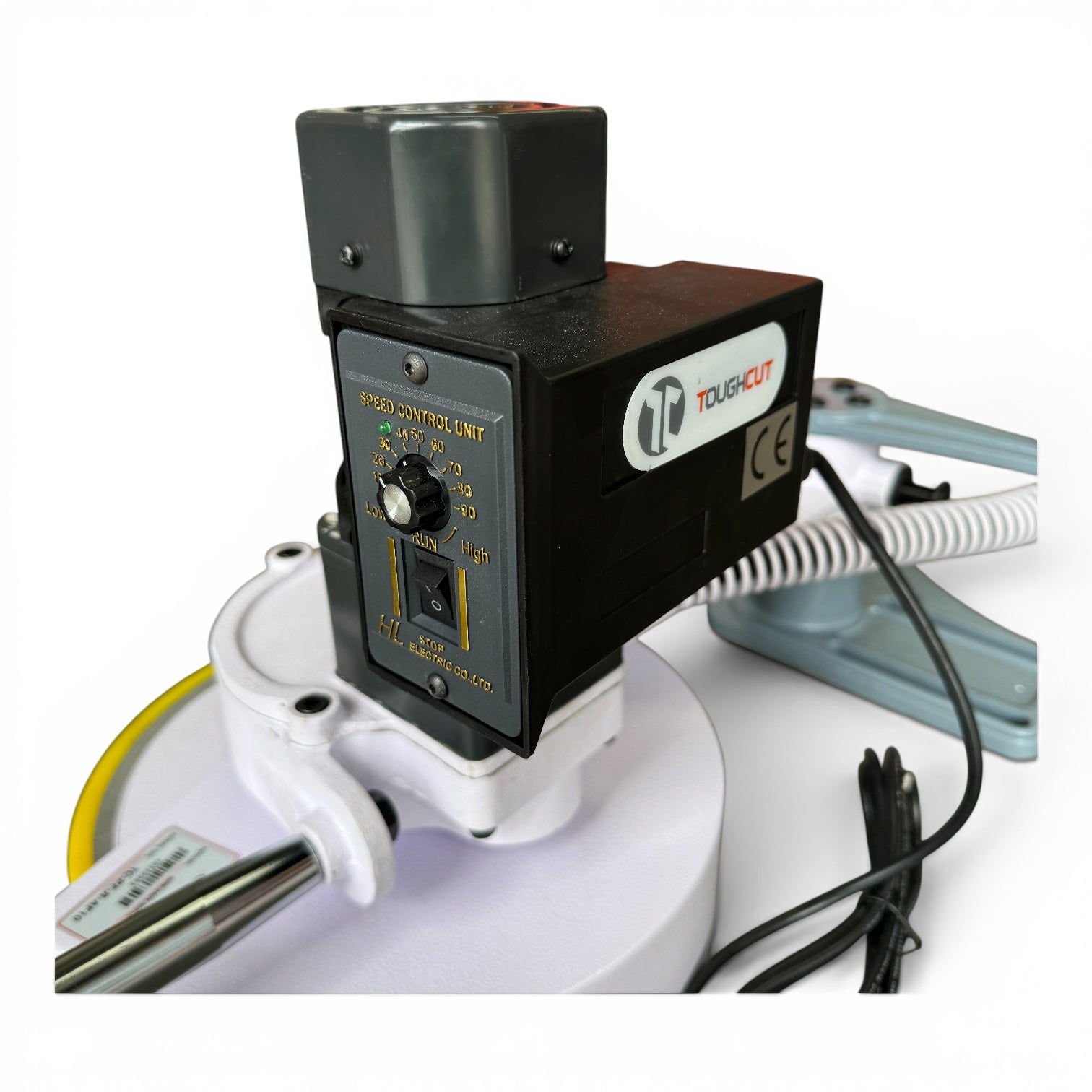

- Variable Speed - With variable speed adjustment, the AF10 offers the most versatile speed options
- Range of Speeds: 1.5-18m/min.

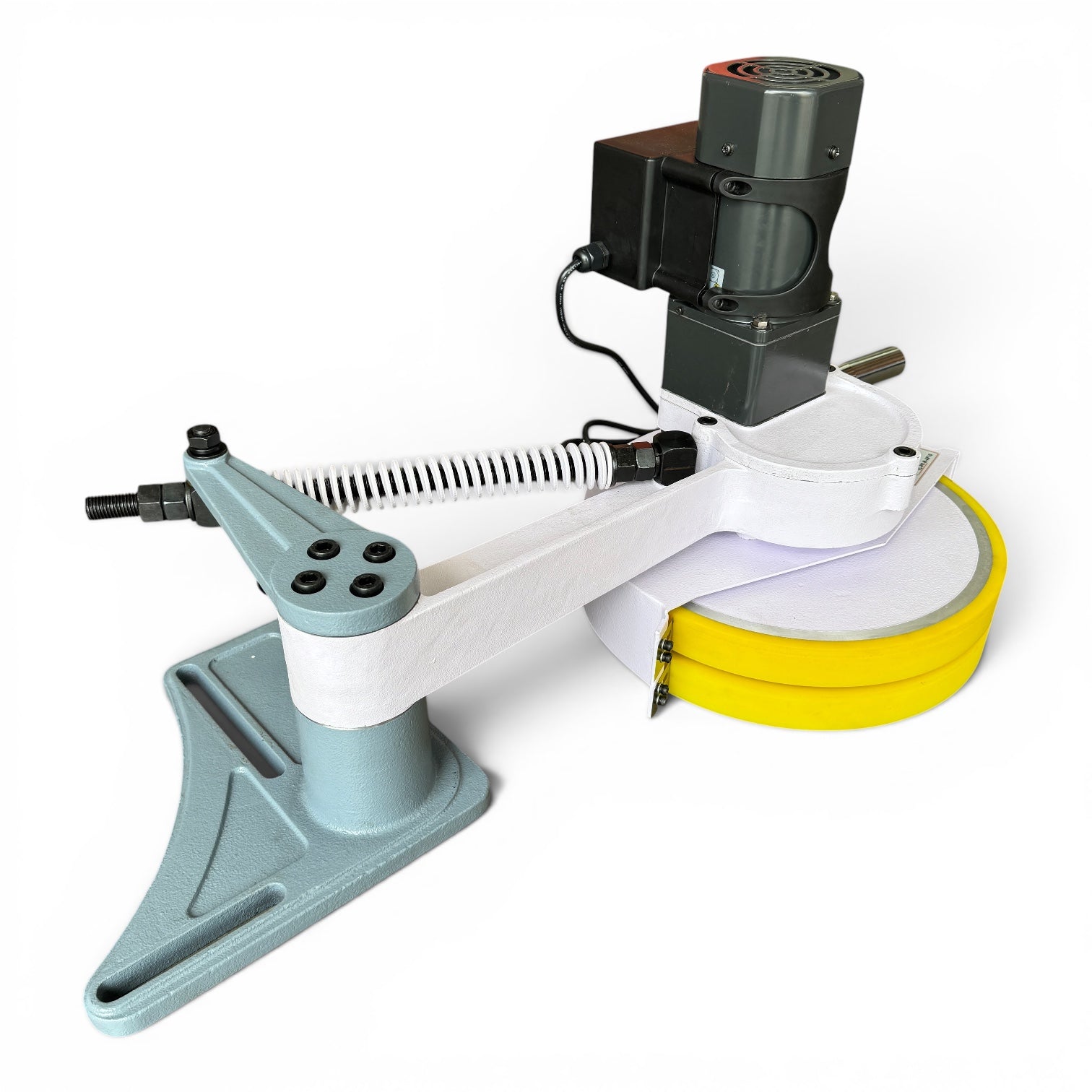

- Stand included

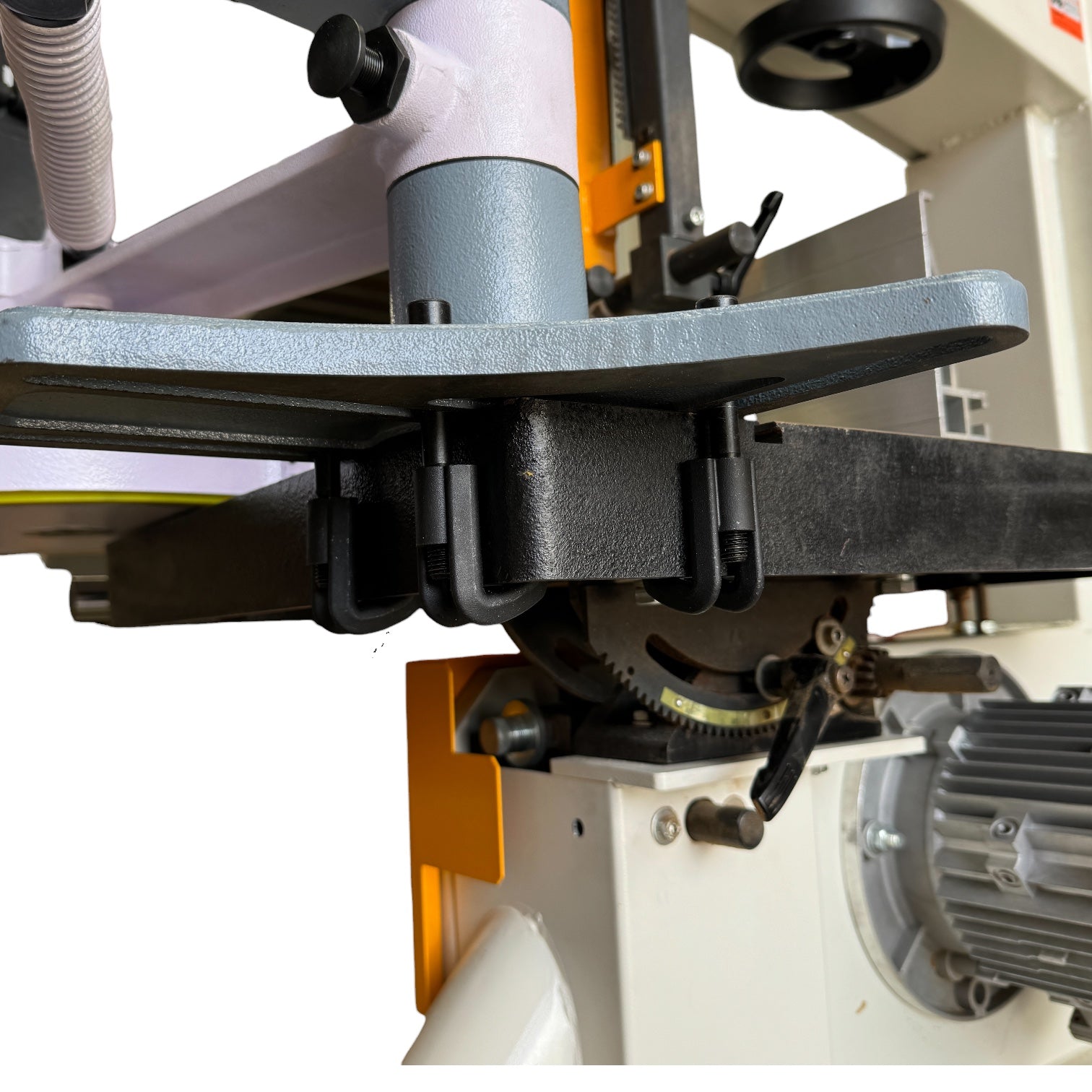

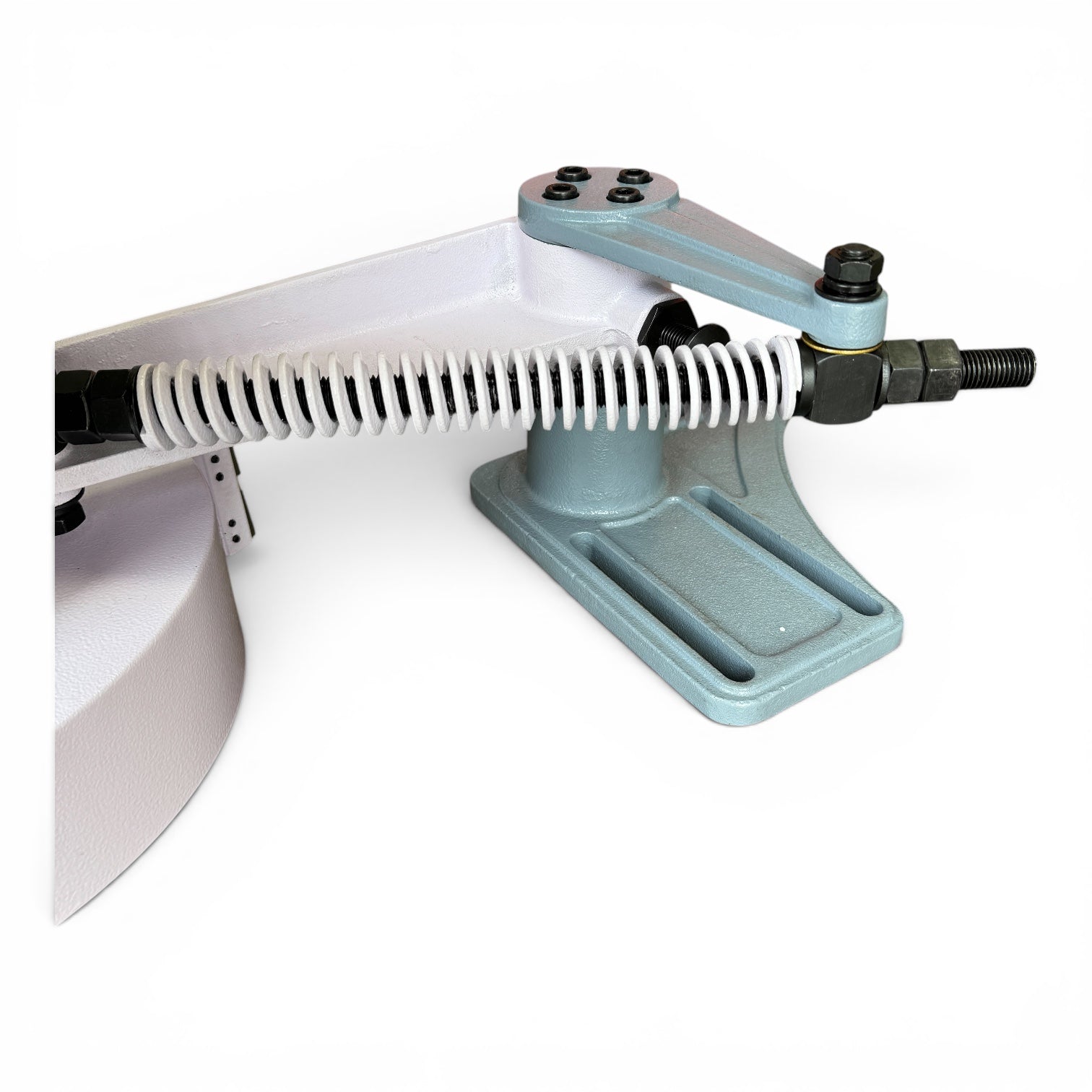

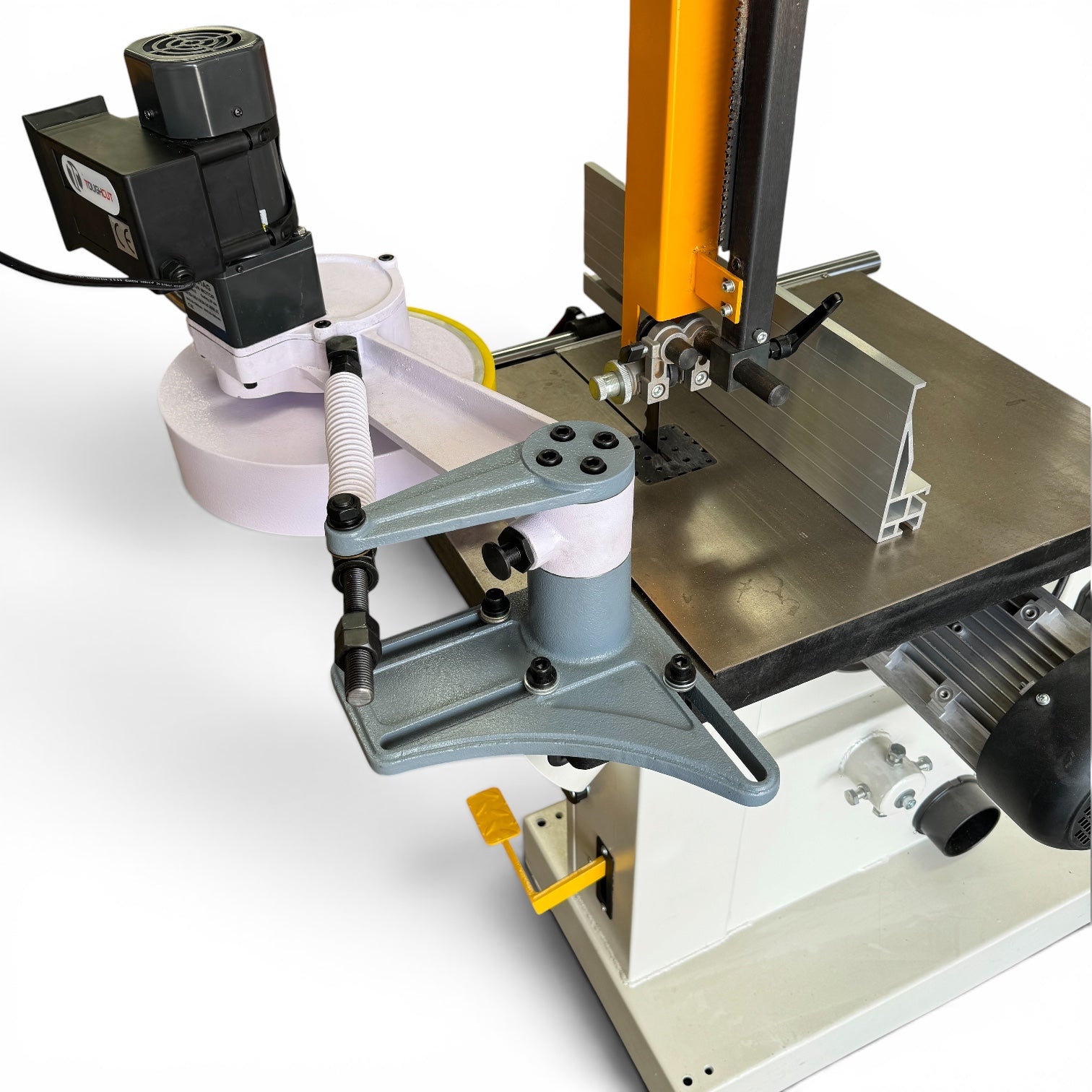

- Drill-less Fast Positioning Design - No need to drill holes in your bandsaw, you only need to use the parts that come with the feeder to secure it to the bandsaw.
- Conventional AC Motor - A continuous-duty 1/8 horsepower motor provides the feed, ensuring a consistent and reliable feed rate.
Specification
|
Max. Height of Rollers |
82 mm (3-3/8") |
|---|---|
|
Max. Roller-Blade Clearance |
246-398 mm (9-1/2" - 15-1/2") |
Mounting Notes
- Distance required from mounting position on corner of table to tip of blade: 370mm to 469mm (14.5" to 18.5")
- May need to add extension if too small
Additional Information
Model
Type
Power Feeder
SKU
8043459
Part Number
AF10-TC-240V
Brand
ToughCut
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
90W (1/8HP)
Dimensions
Product Weight (Net Weight)
23kg
Country of Origin
Manufactured in
Taiwan
Features
Standard Inclusions

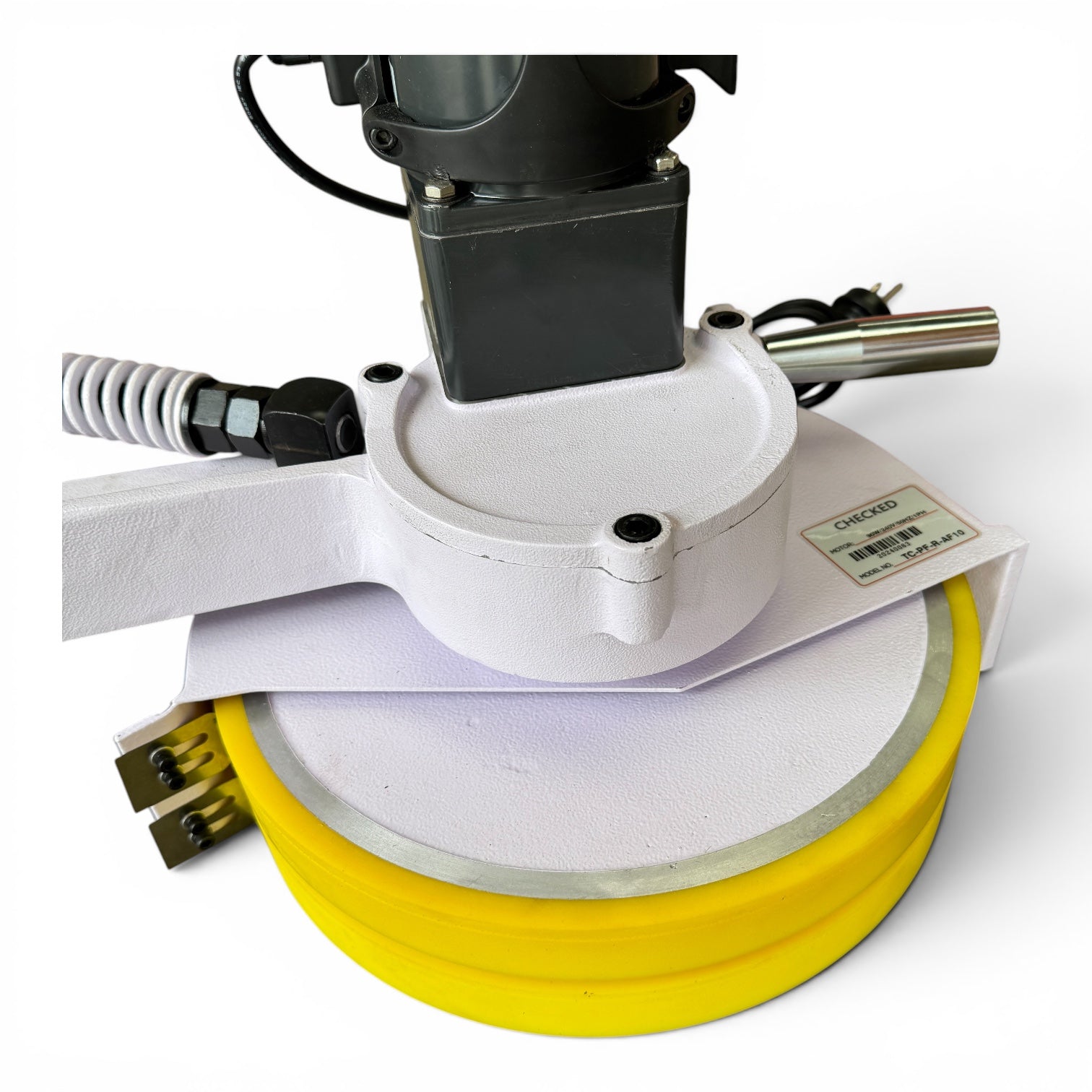

Stand2 x Polyurethane Coated Rollers 300mm Dia. x 30mm
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Packaging + Shipping
Shipping Length
770mm
Shipping Width
462mm
Shipping Height
260mm
Shipping Weight (Gross)
25kg
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
