Type
CNC Router
SKU
904669
Series
TOPAZ
Part Number
ZIRCON 2.0 TCVA30-1325
Brand
ToughCut
Status
Available
Description

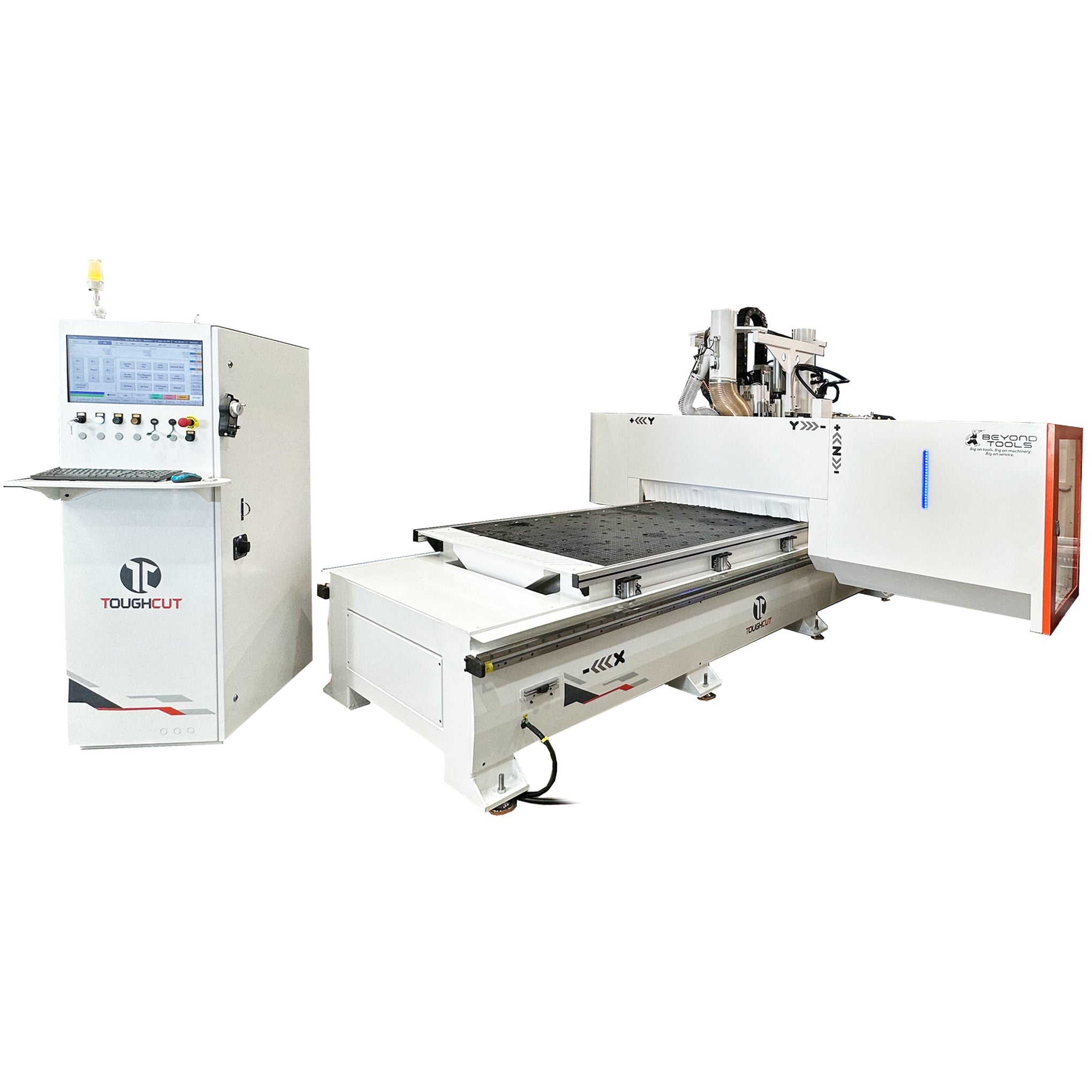

The Toughcut ZIRCON CNC Router is designed for production of custom furniture, cabinet industry and panelling. The compact yet robust working centre is suitable for cabinet makers, craftspeople, boutique professional furniture makers and small workshops.
Features
- OPERATION CONTROLLER | Syntec Controller - Great system stability and easy operation with powerful functionality.

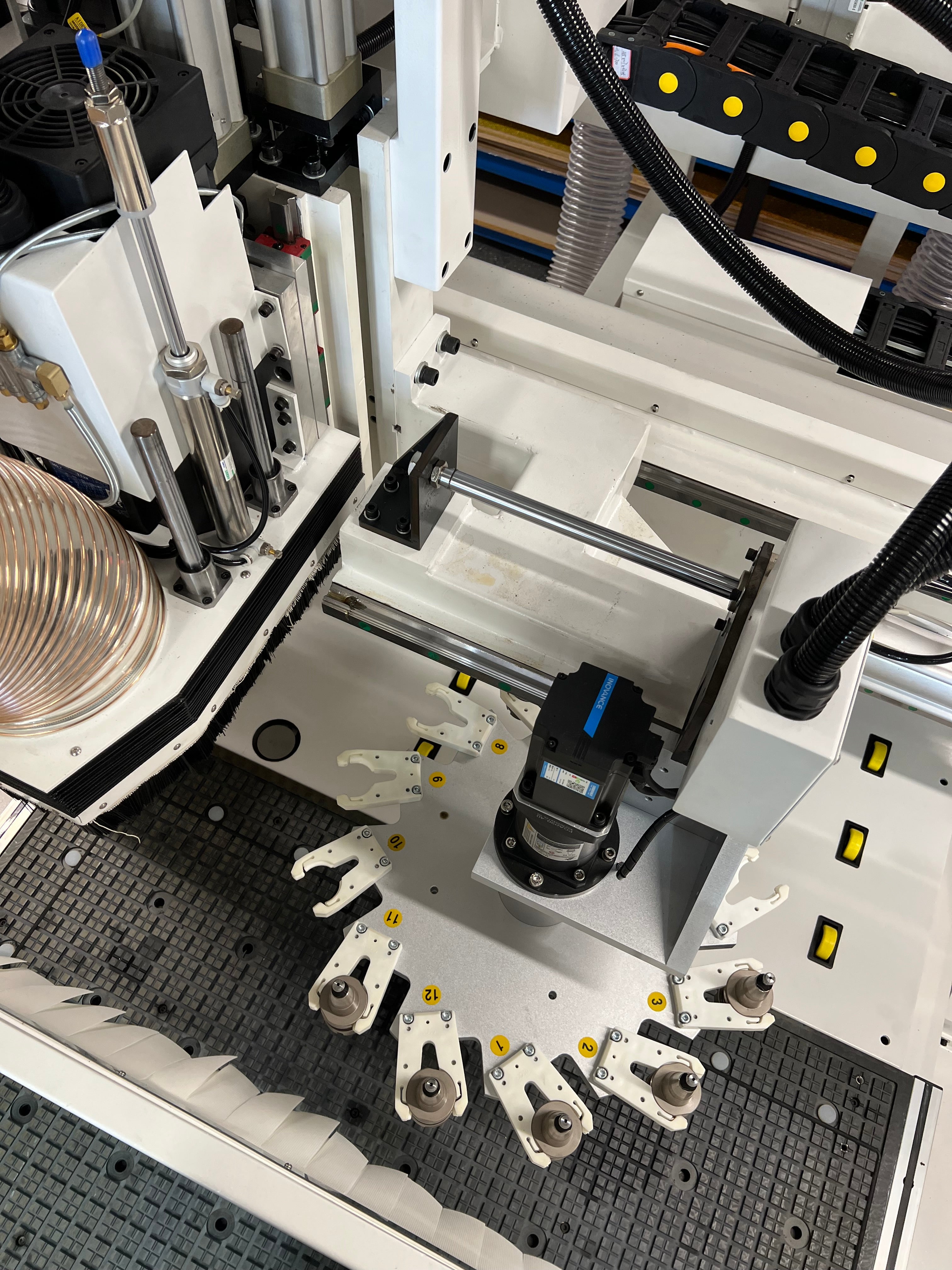

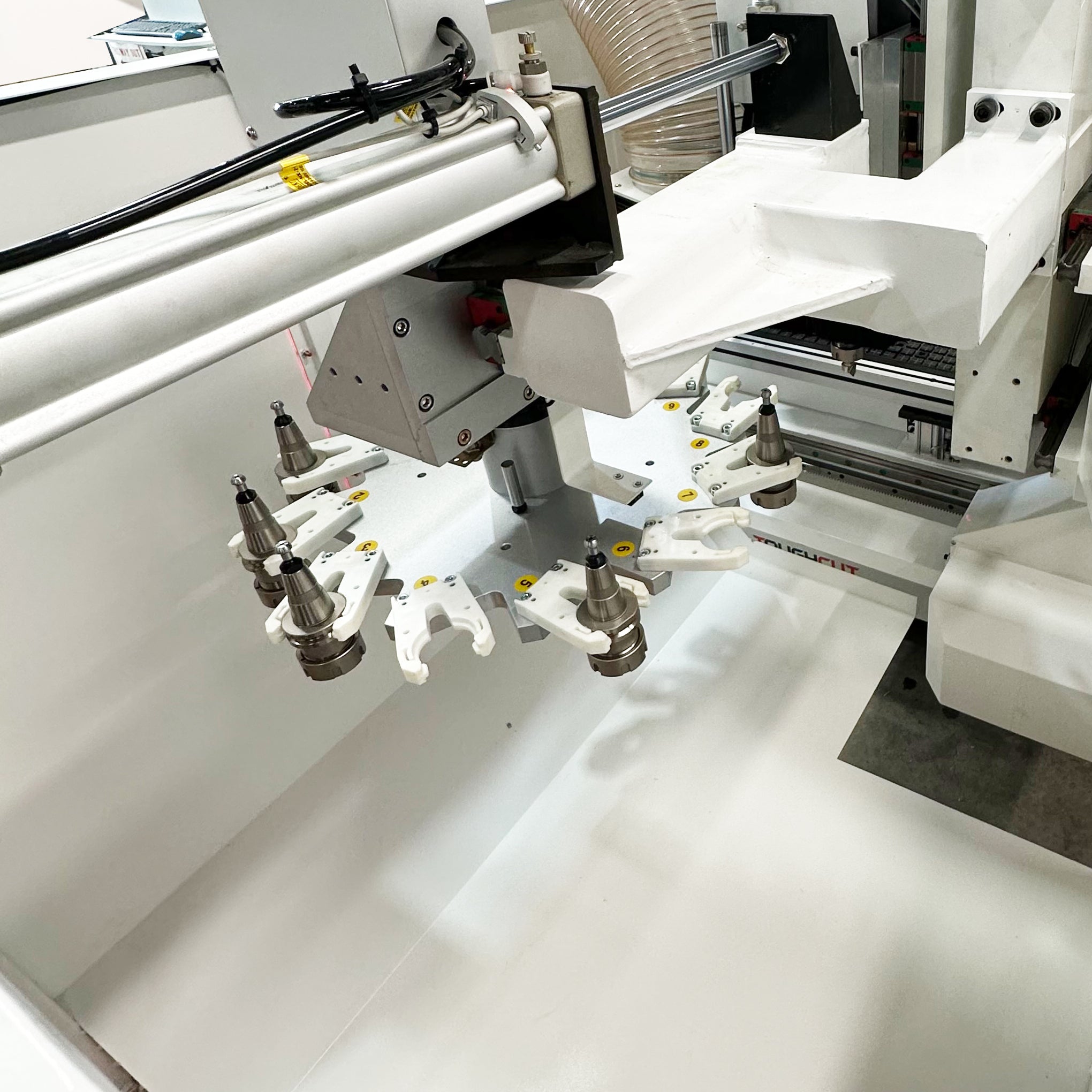

- AUTO TOOL CHANGER | 10 (Rotary) Tool Changer with ISO30 for fast tool change and efficiency (no need for manual tool change).
- DRIVE MOTOR | Japanese YASKAWA Servo Motor - Fast speed with signal feedback allows the machine to run smoothly at ultra low speed, reducing vibration and providing efficient torque.
- HELICAL GEAR & RACK TRANSMISSION | Good meshing performance, smooth transmission and low noise reducing the load of each pair of gears and improving the bearing capacity of the gears.

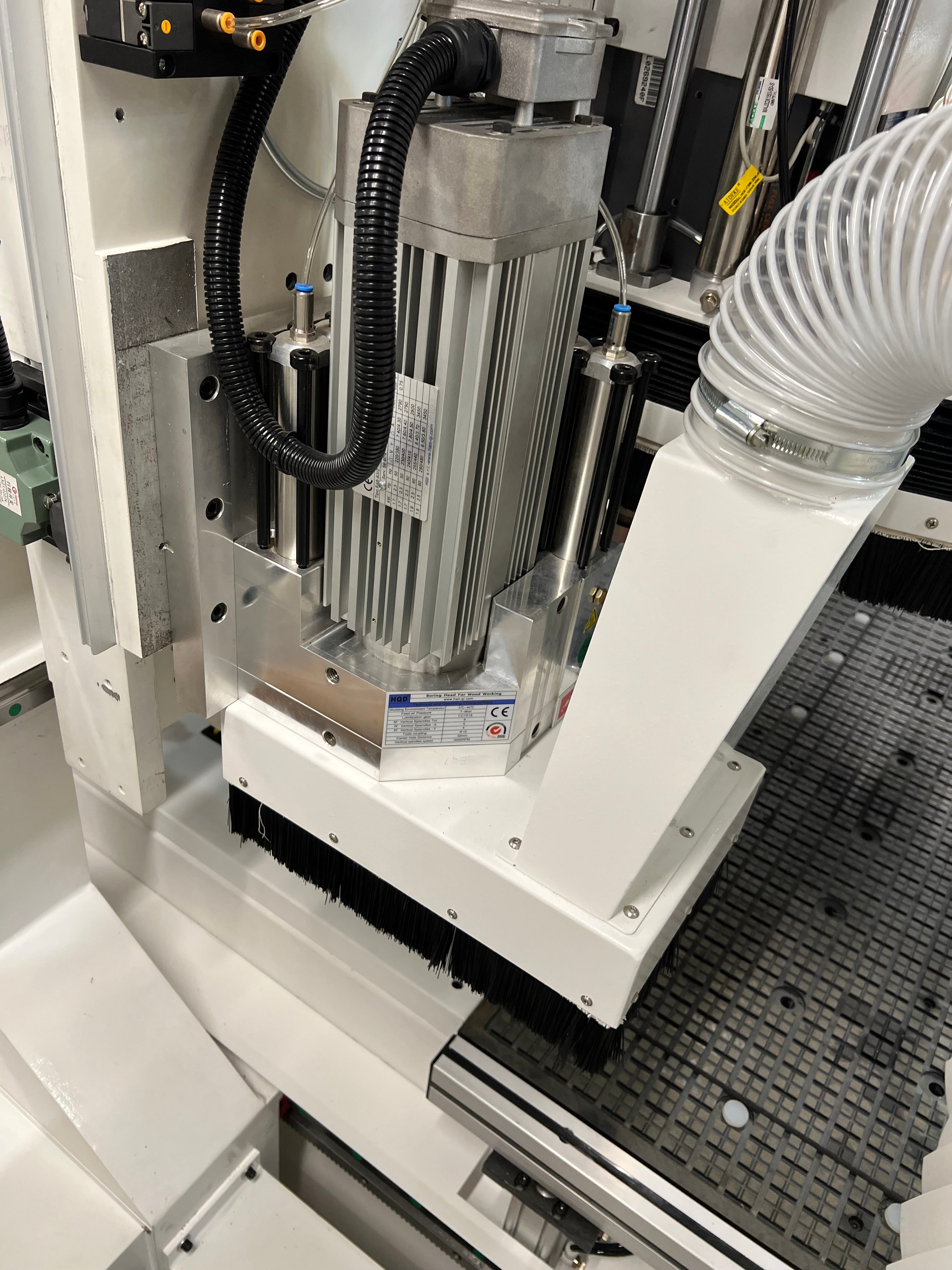

- SPINDLE | Italian HSD 9kW ATC Spindle - HSD is the leading world company in the production of electro spindles with extreme reliability.
- ELECTRONICS | French Schneider Electronics for safety and reliability.
- GUIDE RAILS | HIWIN Guide Rails with sliding technology to easily drive the machine and ensure good bearing capacity.

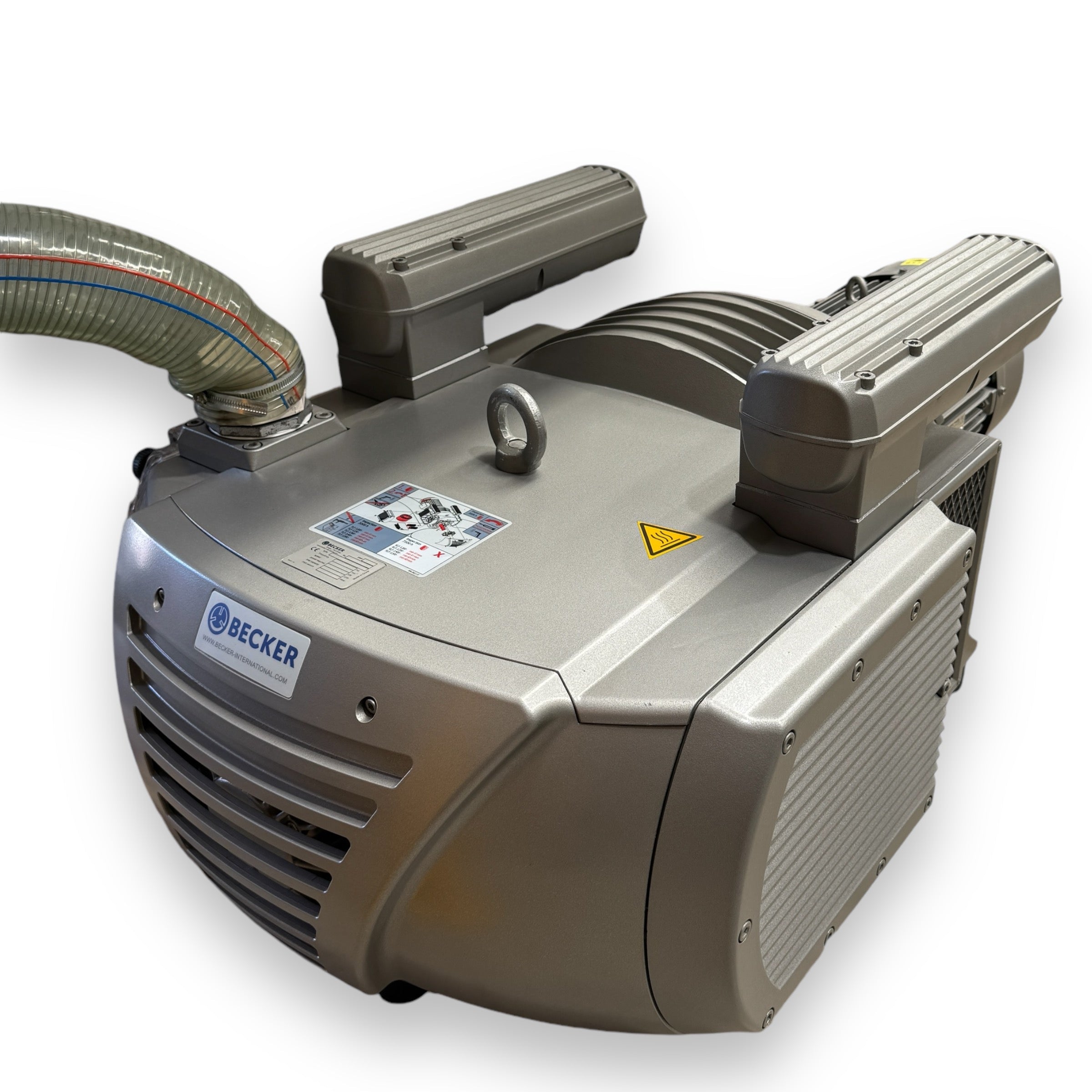

- WORK TABLE VACUUM PUMP | 7.5kw Air Vacuum Pump to secure the workpiece.
- MIST COOLING SYSTEM | Integrated sprayer system

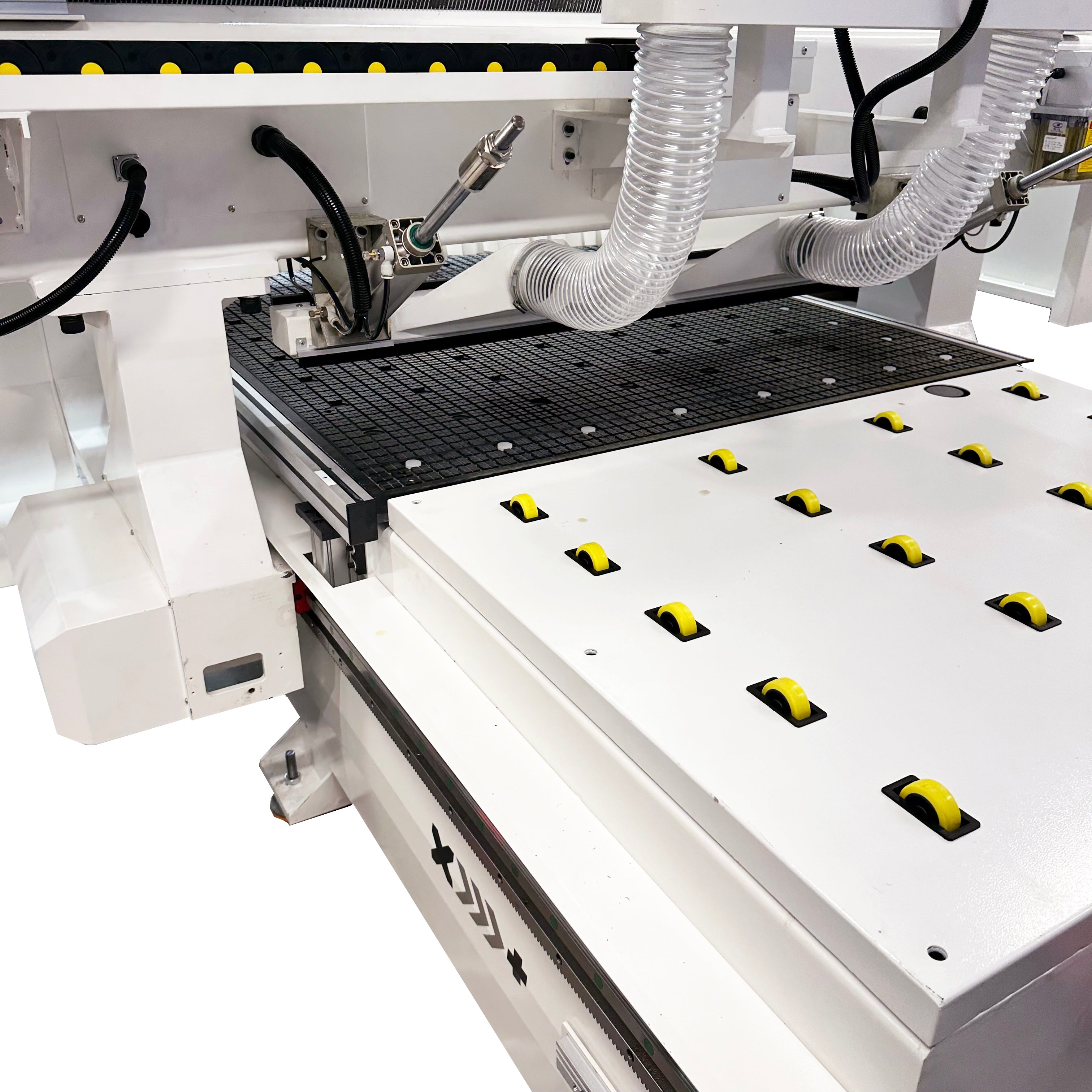

- UNLOADING SYSTEM | Unloading system including auto pusher and cleaning extraction
-
AUTOMATIC TOOL CALIBRATION
- IN FEED LIFTING TABLE - Available on request
- UNLOADING TABLE - Available on request
- FAM 9 DRILLS BORING UNIT - Available on request
- Furniture & Wood Processing: Doors, Chairs, Cabinets, Stairs, Tables, Musical Instruments
- Plate Processing
- Decoration / Craft Industry: Engraving characters / patterns onto gifts, souvenirs and shaping of acrylic, PVC, MDF, artificial stone, plexi-glass, plastic, and copper and aluminum and other soft metal plate engraving and milling cutting.
- Advertising / Signage Industry
- Engraving : Engraving characters, numbers and other patterns on labels for products directly.
- Architectural Models: Engraving fine window, Fencing and Wall patterns.
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Air Connection
Required
Air Supply (CFM)
Air Supply (CFM)
CFM stands for Cubic Feet per Minute and is the most common way to measure airflow.
180L / Min. @ 6 Bar
Auto Oil Lubrication
Yes
Auto Tool Calibration
Yes
Command Language
G-Code
Computer Interface
USB
Drive Motor Brand
Yaskawa (Japan)
Drive Motors
Servo Motor + Driver
Frame
Heavy Steel Tube Structure
Label Printing Terminal
Not Available
Lifting (In Feed) Table
Not Available
Linear Guide Rails
Rack and Piinion Drive Rail Linear Bearings by Hiwin (Taiwan)
Mist Cooling Spray System
Optional
Moving / Working Speed
25m/Min.
No. of Tool Changers
10
Operating Control System
SYNTEC
Pump
7.5KW Air Vacuum Pump (Work Table)
Resolution (Location Precision) (DPI)
Resolution (Location Precision) (DPI)
DPI, or dots per inch, is a measure of the resolution of a printed document or digital scan. The higher the dot density, the higher the resolution of the print or scan. Typically, DPI is the measure of the number of dots that can be placed in a line across one inch, or 2.54 centimeters.
<0.03mm
Dimensions
Product Weight (Net Weight)
1600 kg
Features
Standard Inclusions
Excludes Delivery + Installation / Commissioning + Training
Safety
Dust Port
1 x 150mm
Workshop (Site) Info
Air Connection
Required
Air Supply (CFM)
Air Supply (CFM)
CFM stands for Cubic Feet per Minute and is the most common way to measure airflow.
180L / Min. @ 6 Bar
Computer Interface
USB
Electrical Connection
Excludes Plug & Lead (must be connected by Licensed Electrician)
Pump
7.5KW Air Vacuum Pump (Work Table)
Running Environment Temp
0-40°C
Footprint
3800mm x 2800mm
Other Requirements
Tooling (Depending on Application)
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Use
Intended or designed for commercial use.
Packaging + Shipping
Shipping Length
3700 mm
Shipping Width
2840 mm
Shipping Height
220 mm
Shipping Weight (Gross)
1648.0 kg
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end).
Optional Accessories
1300mm x 2500mm CNC Router with Auto Tool Change Spindle with 12 Tool Rotary Carousel + Vacuum Table (with 9.5KW Pump) ZIRCON TCVA30-1325 by Toughcut
