Status
Available
Description

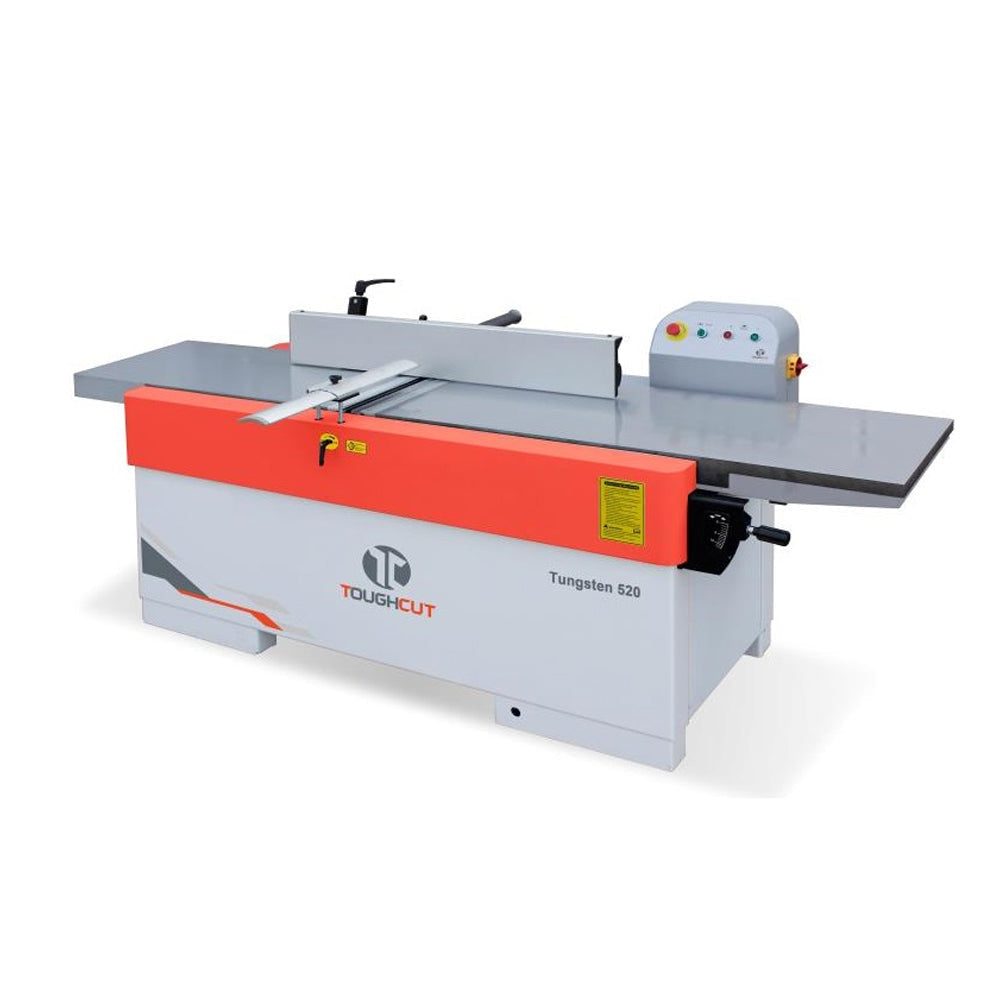

Tungsten 520 is a high-quality woodworking machine designed to help you achieve smooth and accurate results in your workshop. With its powerful 5.5kW motor and spiral head cutter block, this planer (jointer) can handle even the toughest materials with ease.
Features
- Spiral Head Cutter Block: The Tungsten 520 spiral head cutter block consists of 4 rows of helical cutters that rotate at a high speed, resulting in a smoother finish and quieter operation compared to traditional straight knives.
- Heavy-Duty Construction: The planer (jointer) is built with a rugged cast iron frame and table, providing stability and durability during operation.
- Easy-to-Use Controls: The machine comes with simple controls that allow you to adjust the depth of cut and other settings to suit your specific needs.
- Convenient Dust Extraction: The planer (jointer) features a dust hood that can be easily connected to a dust collection system, keeping your workshop clean and safe.
- Large Capacity: With a maximum planing (jointing) width of 520mm (21"), this machine can handle large pieces of wood and other materials.
Specifications
- Motor: 5.5kW
- Cutter Block: Tungsten 520 Spiral Head Cutter
- Planing (Jointing) Width: 520mm (21")
- Maximum Depth of Cut: 8mm (5/16")
- Table Length: 2750mm (108")
- Dust Hood Diameter: 150mm (6")
- Blades: 126 Individual Insert Blades 15mm x 15mm x 2.5mm Square (30Deg)
- Weight: 800kg (1760lbs)
If you're looking for a reliable and efficient planer (jointer) that can handle heavy-duty workloads, the Toughcut 520mm (21") Planer (Jointer) with Spiral Head Cutter Block Tungsten 520 is definitely worth considering.
Additional Information
Model
Type
Planer (Jointer)
SKU
9000505
Part Number
TUNGSTEN 520-415V
Brand
ToughCut
Size
520mm (21") x 2750mm (108")
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
7.5HP
Blade Type
Spiral Head Cutter Block
Technical - Saw
Blade (Main) - Speed
5000RPM
Technical - Spiral Head Cutter Block
Blade- Cutter Head Block - Blade Size
15mm x 15mm x 2.5mm Square 30Degree
Blade - Cutter Head Block Speed (RPM)
5000
Blade - Cutter Head Block - No. of Blades / Tips
126
Dimensions
Product Weight (Net Weight)
800kg
Country of Origin
Manufactured in
China
