Status
Available
Description

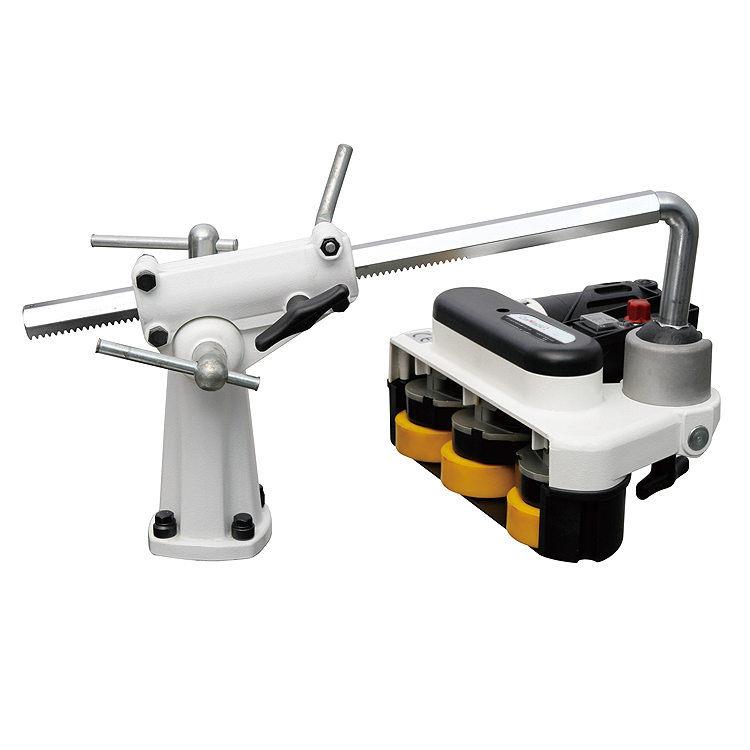

The M3 Baby Feeder is the world's lightest, smallest, yet versatile power feeder. With a patented 3D adjustable arm, it has 150mm depth and 260mm reach. This feeder can be mounted directly onto the machine table by either bolting or using the optional QH01 Quick Holder.
Features
- 1/8 HP Motor (90W)
- 3 Rollers - 76mm Diameter x 30mm (with 8.3mm 5/16" Roller Suspension)
- Speeds - 2-12 M/min
- Forward / Reverse Feed
- Stand included
- Safety at Your Fingertips – By keeping your hands away from cutting edges.
Light Duty Model Made for Compatibility – This feeder is ideal for use with router tables, small spindle moulders, surface planers, bandsaws and edgebanding tables.
Unique 3D Adjustable Arm – The TC-PF-M3 comes equipped with sturdy cast-iron support and an extendable arm with a patented 3D adjustable design.

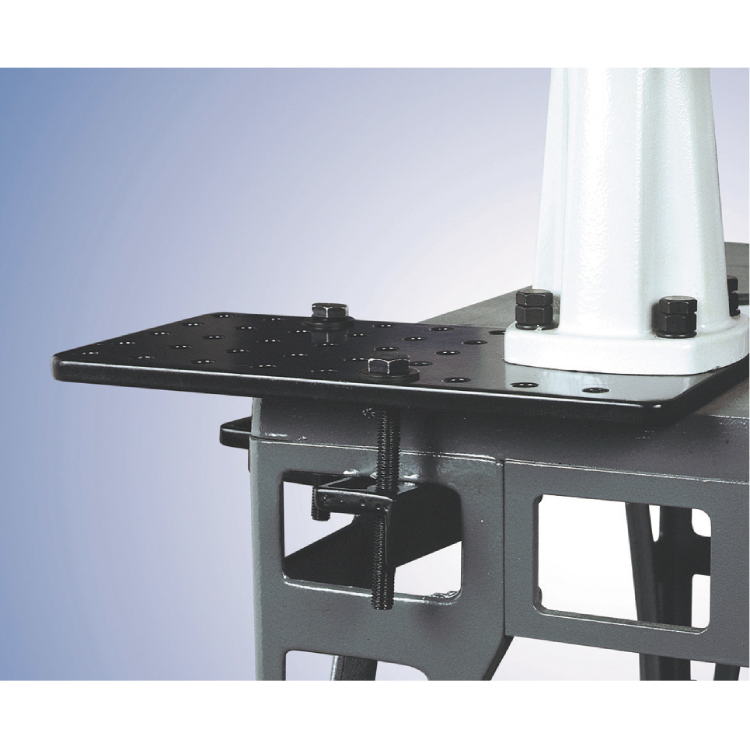

Quick and Secure Mounting – This power feeder can be mounted directly onto the table of the machine by either bolting or using the optional Quick Holder.
Additional Information
Model
Type
Power Feeder
SKU
8043417
Part Number
TC-PF-M3
Brand
ToughCut
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Speed Range
5m / min., 6.5m / min., 11m / min., 8m / min.
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Packaging + Shipping
Shipping Length
560mm
Shipping Width
280mm
Shipping Height
230mm
Shipping Weight (Gross)
12kg
