Status
Available
Description

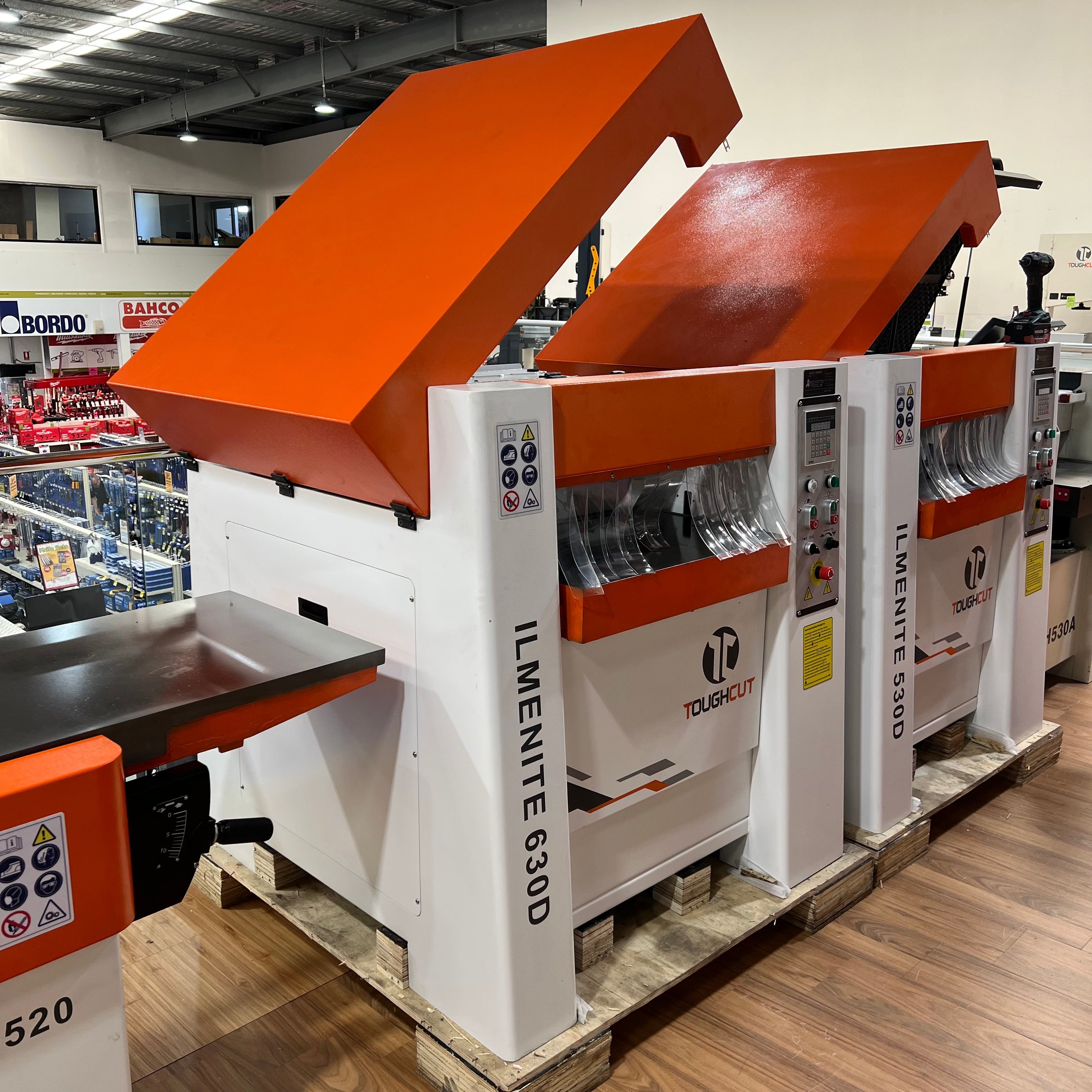

Ilmenite 530D and 630D series is an upgraded model to our 530H and 630H series Thicknessers. These industrial machines are suitable for inductrial applications and feature variable feed speed, electronic braking, digital height control and spiral cutter head with 4 sided cutting knives. The very high work capacity from 5mm to 300mm allows optimum machine use and offers flexibility for wood machining.
Features
- Cast iron table mounted on 4 heavy columns for excellent support and accuracy without any locking required

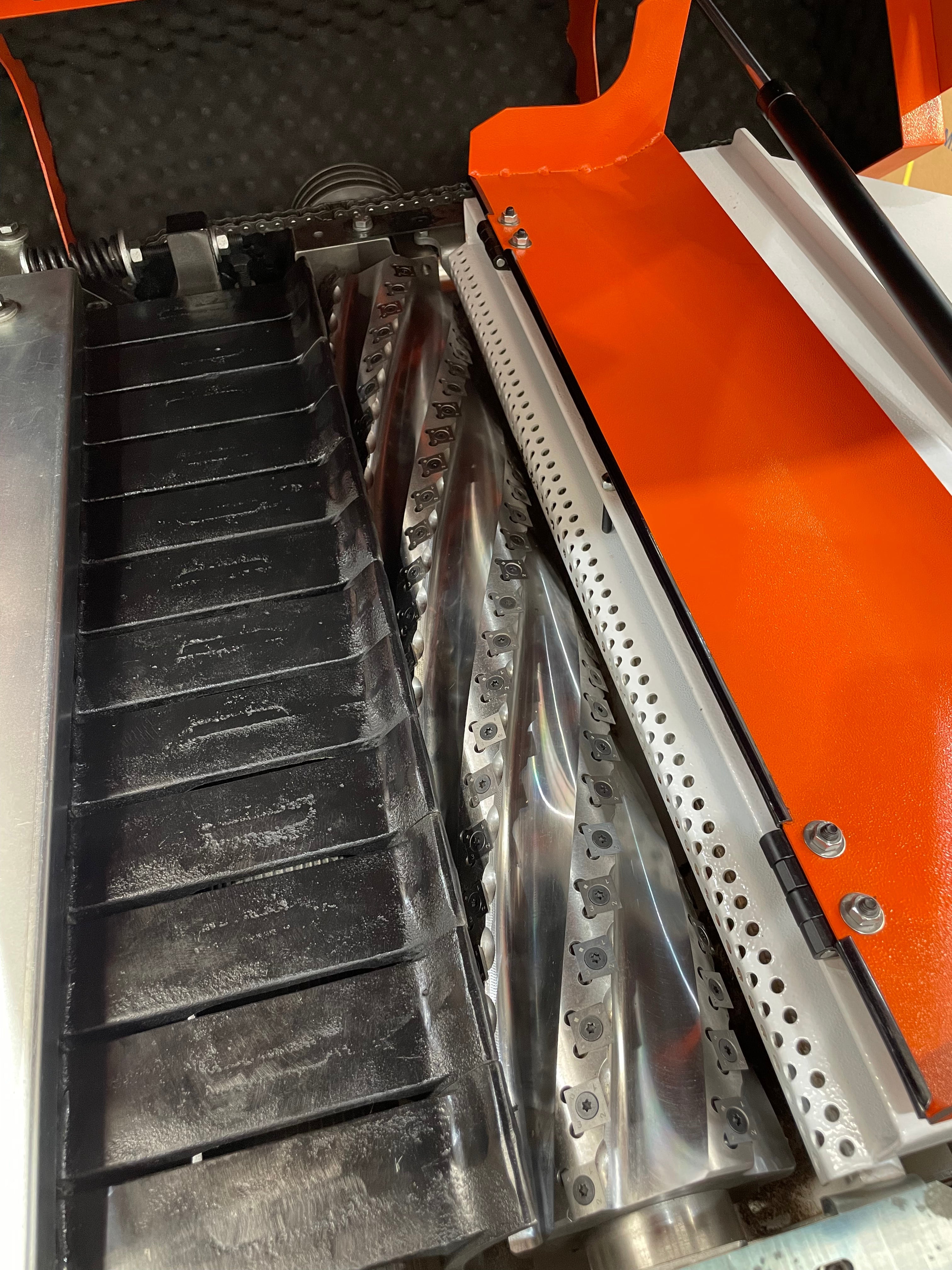

- Spiral Head Cutter Block (126 Blades (530D) / 150 Blades (630D))
- Variable speed infeed by inverter to suit all types of finishes
- Motor drive table lifting mechanism with micrometric positioning

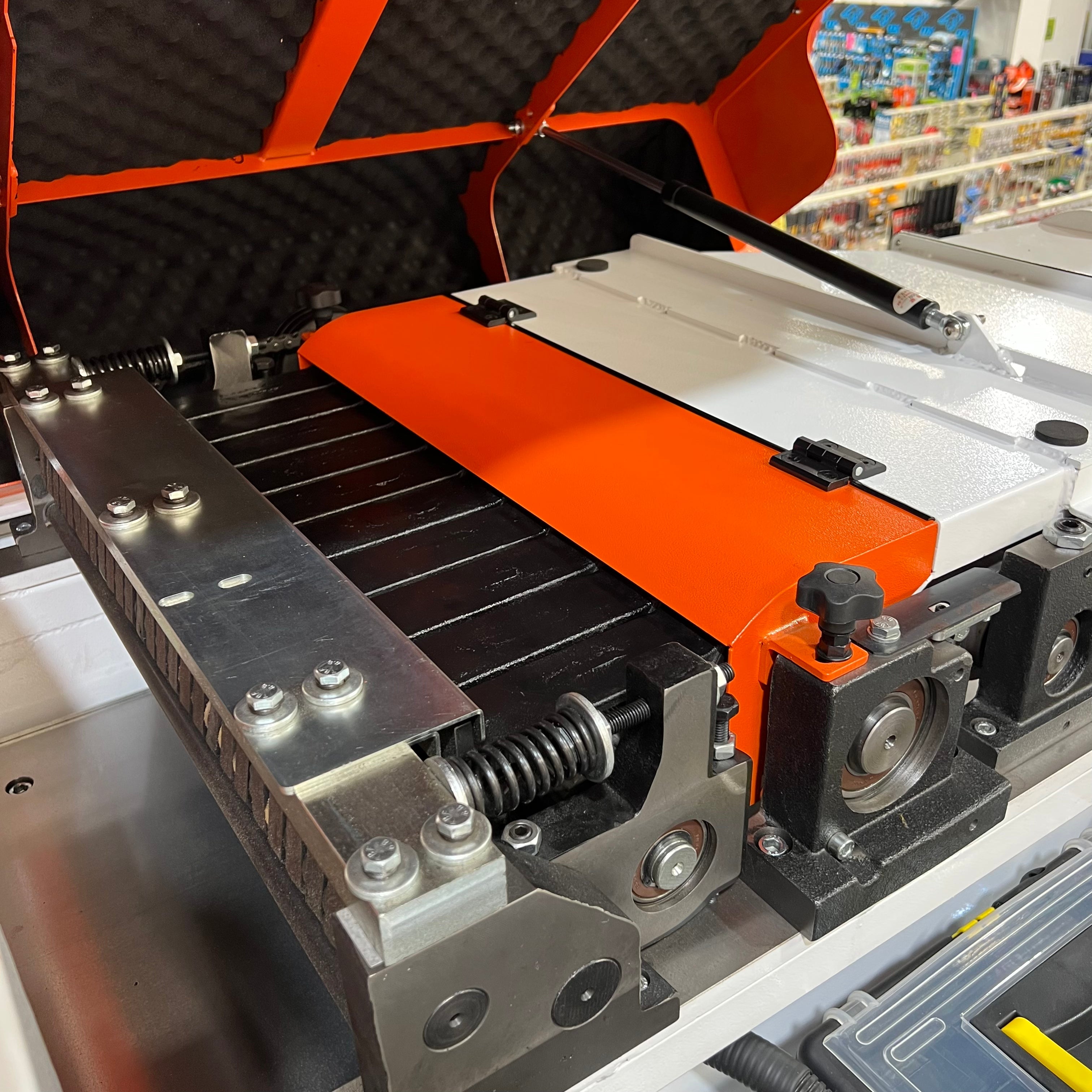

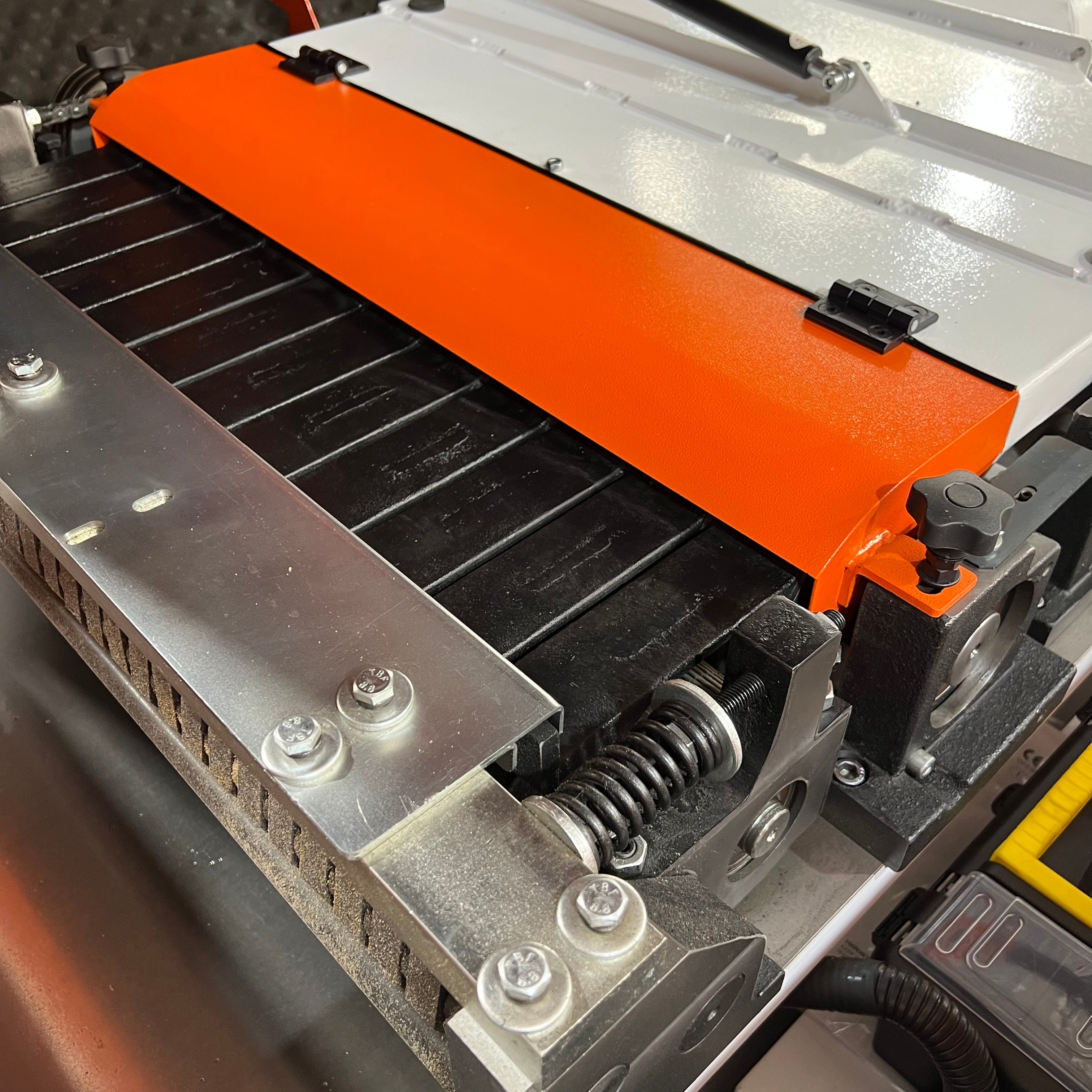

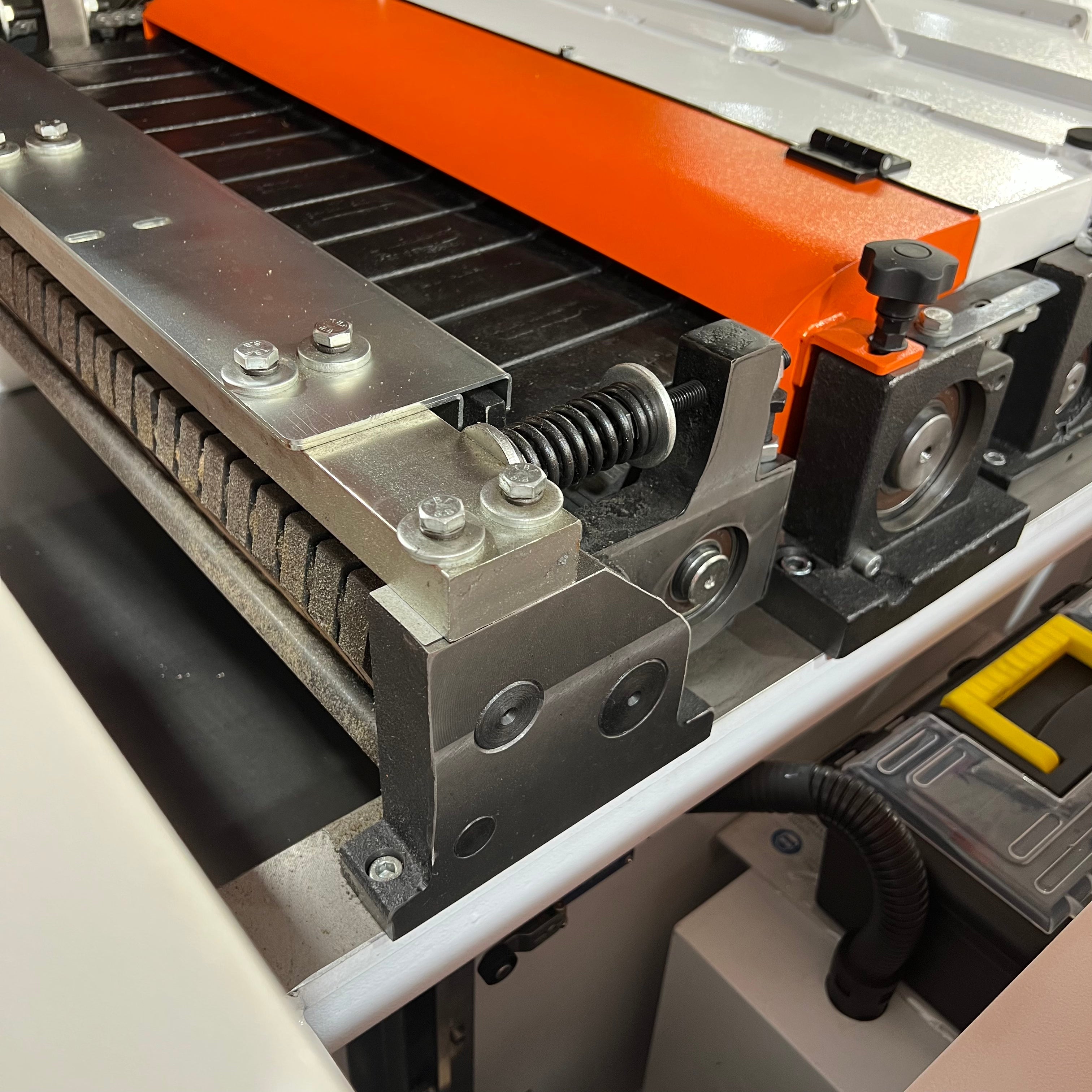

- Spring-loaded pressure bars and double outfeed roller design prevents vibration of very thin workpieces during thicknessing
- Sectioned Feeding Roller
- Four trapezoidal thread spindles with dual guide rails guarantee accurate adjustment and avoid lateral movement during thicknessing
- Two bottom table rollers
- Electronic motor breaking

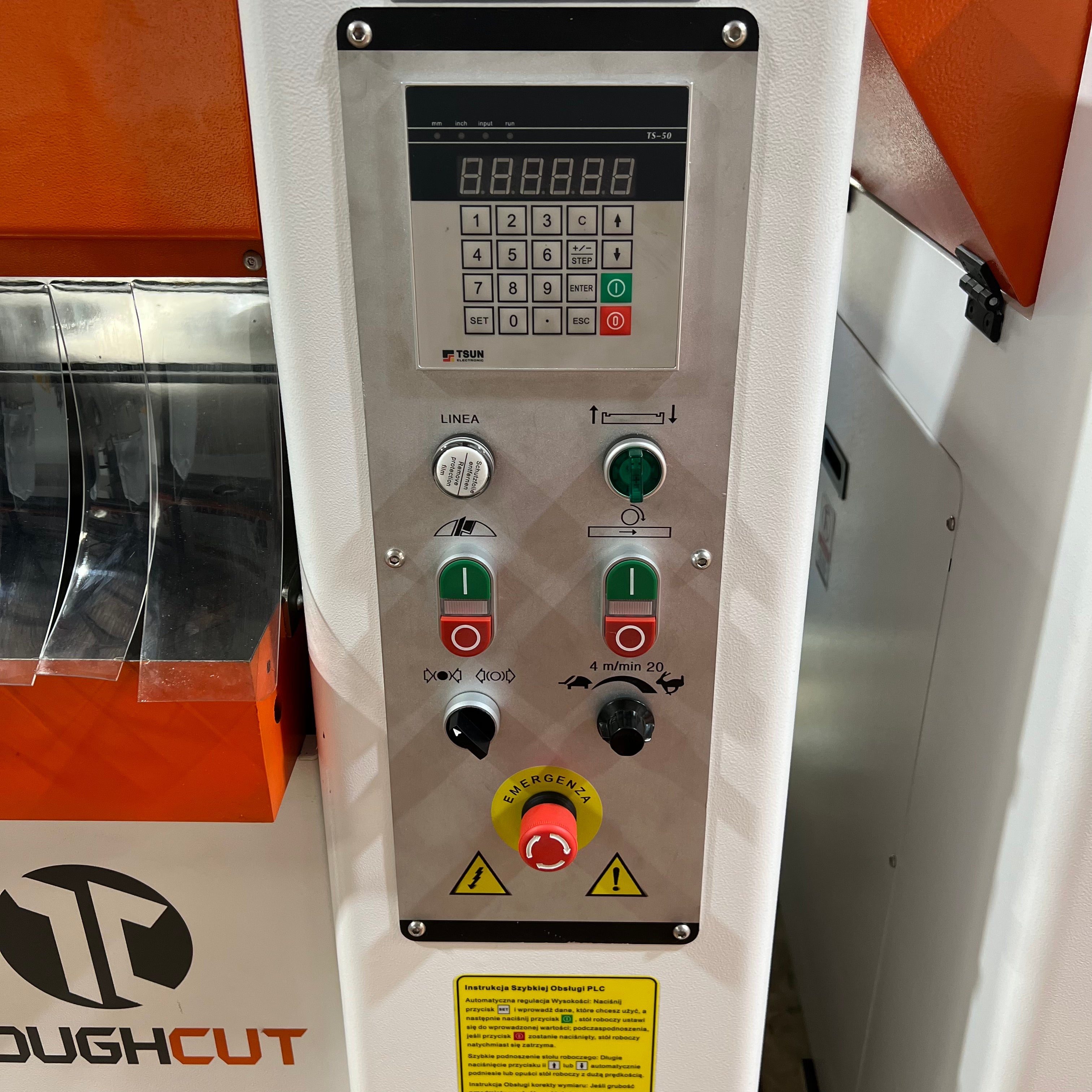

- Electronic positioner to enable high precision and help reduce positioning time to increase efficiency

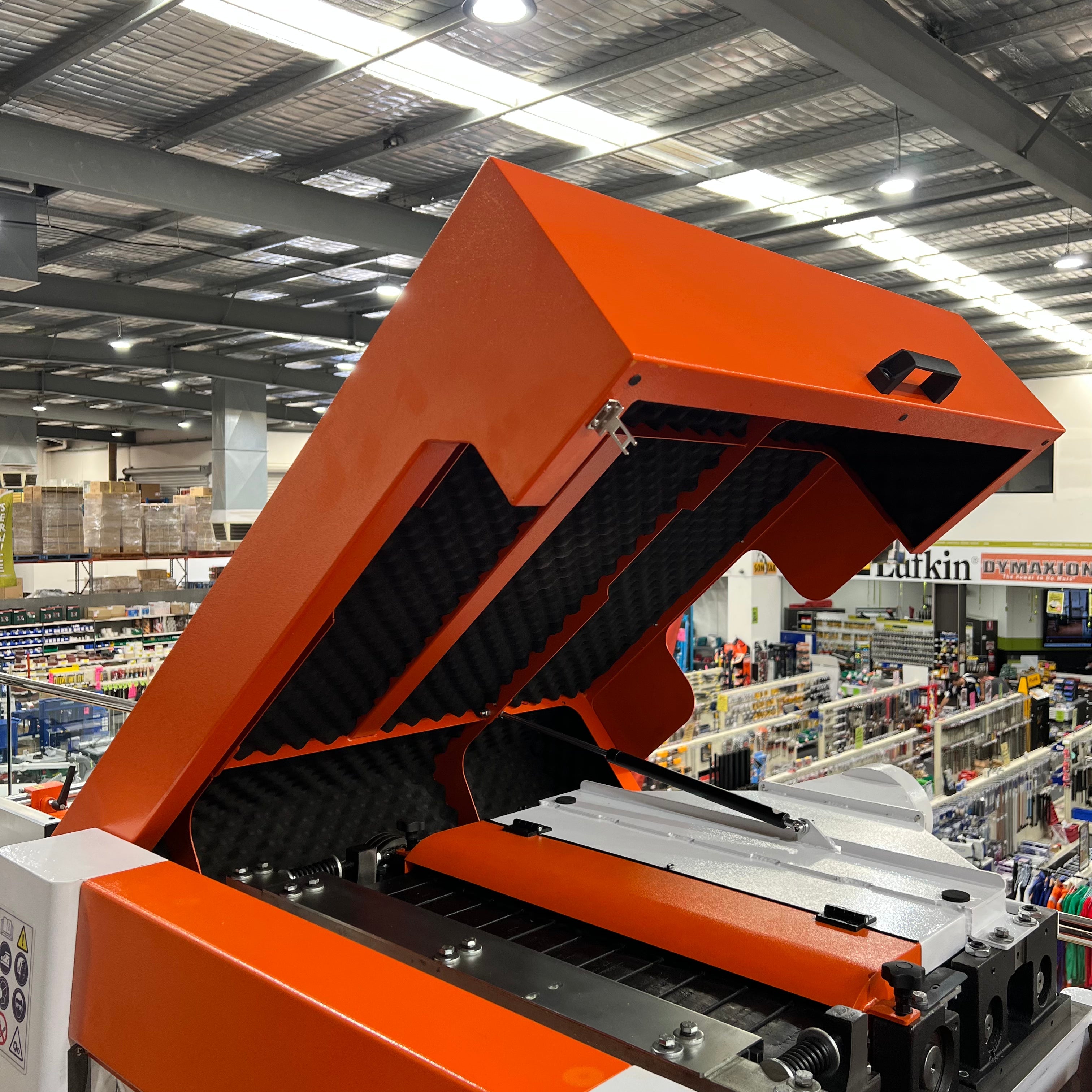

- Sound insulation underside of the lid
- Matting protection on top of the lid to allow material to be pasted over the machine without causing damage to the workpiece
Options
- 530D (MOTO530)
- 630D (MOTO630)
Options
- 630D (MOTO630)
- 530D (MOTO530)
Additional Information
Model
Type
Thicknesser
SKU
8002032
Series
Ilmenite
Part Number
530D (MOTO530)
Brand
ToughCut
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Motor Power (Input) - Variable Option
Motor Power (Input) - Variable Option
Input power means the full-load power input required to operate the motor.
7.5HP / 5.5KW
Air Delivery
Minimal Rate of 1800m3/H Required at a speed of 25-30m/Sec
Blade Type
Spiral Head Cutter Block
Cutting Capacity - Height
300mm
Technical - Spiral Head Cutter Block
Blade- Cutter Head Block - Blade Size
15mm x 15mm x 2.5mm Square 30Degree
Blade - Cutter Head Block - Diameter
120mm
Blade - Cutter Head Block - Rows
6
Blade - Cutter Head Block - No. of Blades / Tips
150
Dimensions
Product Length
1100mm
Product Width
1200mm
Product Height
1180mm
Country of Origin
Manufactured in
China
Features
Variable Speed
Variable Speed
Variable speed motors generally start a motor at zero voltage and ramp it up slowly. This minimises the power needed to set the mechanism into operation, which in turn reduces the wear and tear on the motor. Variable speed also enables equipment to have precise speed control.
Digital Speed Display
Digital Speed Display
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.
Workshop (Site) Info
Air Delivery
Minimal Rate of 1800m3/H Required at a speed of 25-30m/Sec
Dust Hose Inlet Diameter
160mm
Other Requirements
160mm Diameter Dust Hose + Dust Collector with Minimal Rate of Delivery as Spec.
Warranty
Warranty (Australia)
Warranty (Australia)
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Warranty (Important for International Customers)
Warranty (Important for International Customers)
Important Warranty Notice for International CustomersPlease note that purchases made from outside Australia are undertaken at the customer’s own risk. Our product warranties are generally valid within Australia only. While we are happy to assist with warranty-related issues, the following conditions apply for international orders:Any warranty claim requires the item to be returned to us in Australia at the customer’s expense.If the claim is accepted, Beyond Tools will carry out the repair or replacement under the terms of the Australian warranty.Return shipping of the repaired or replacement item must also be paid by the customer.We do not cover international freight, import duties, or customs clearance costs.We strongly recommend that international customers consider this before purchasing. If you have any questions, please feel free to contact us before placing your order.
See Notes
Packaging + Shipping
Shipping Length
1160mm
Shipping Width
1220mm
Shipping Height
1310mm
Shipping Weight (Gross)
870kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end). This product requires a skid / pallet / crate in order to safely transport via road.
