Status
Available
Description
The very high work capacity from 5mm to 300mm allows optimum machine use and offers flexibility for wood machining. Ilmenite 530H has brought industrial features and design to this machine, including variable feed speed, electronic braking, digital height control and spiral cutter head with 4 sided cutting knives.
Features
- Spiral Head Cutter Block (92 pieces)
- Variable speed infeed by inverter suit all types of finishes
- Motor drive table lifting mechanism with micrometric positioning

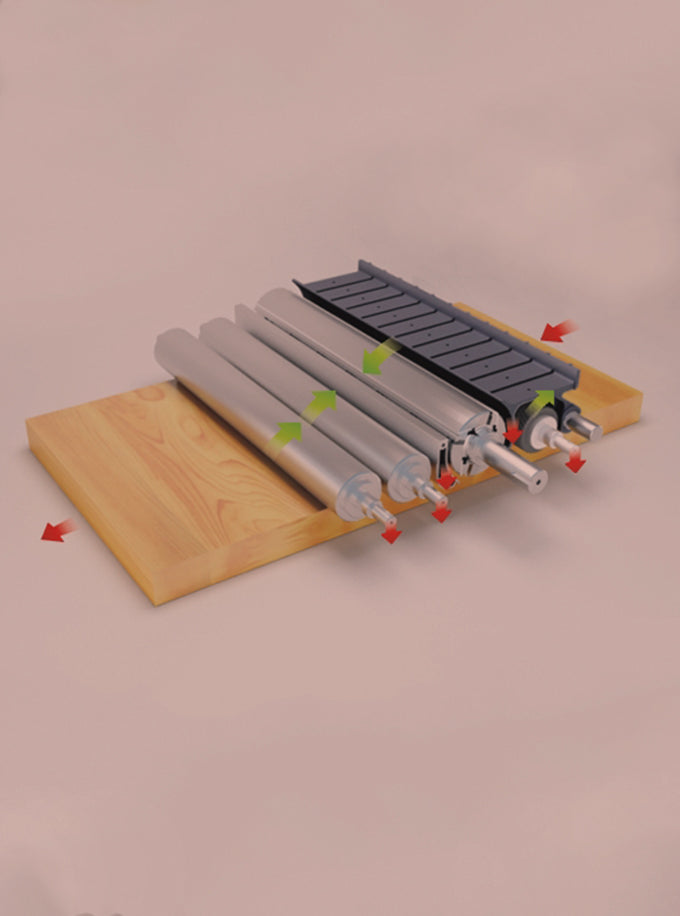

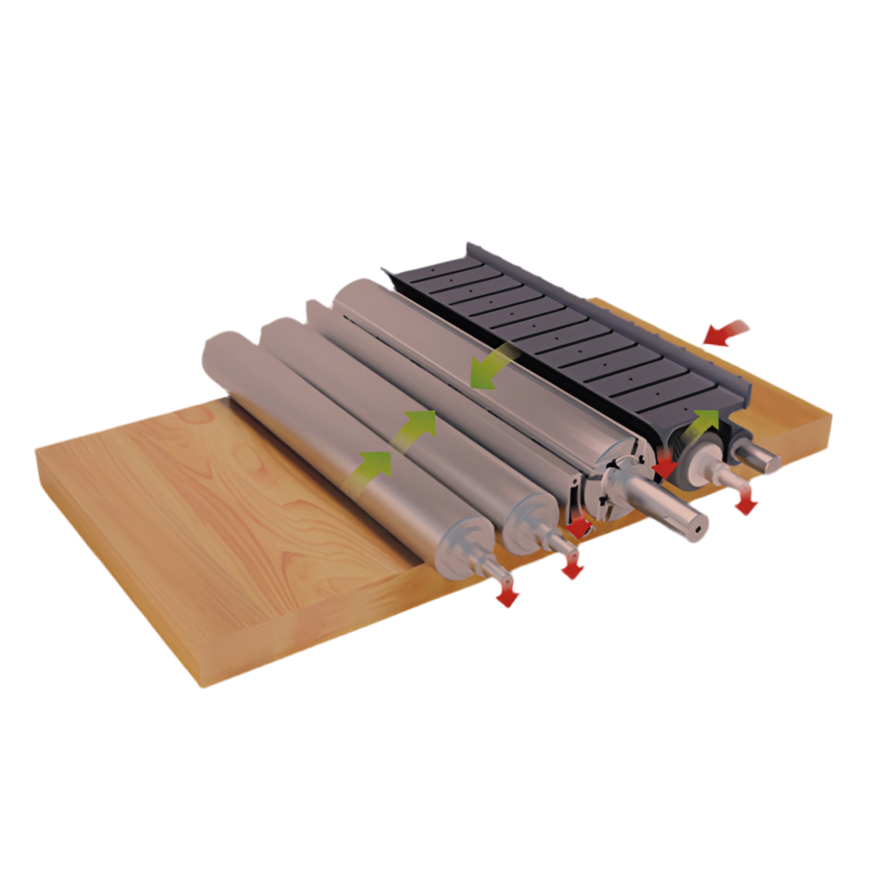

- Spring-loaded pressure bars and double outfeed rollers design prevents vibration of very thin workpieces during thicknessing

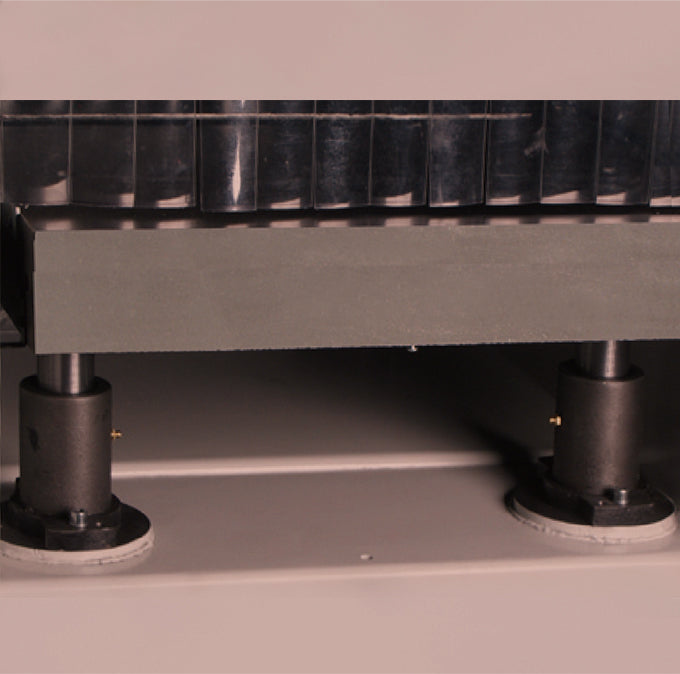

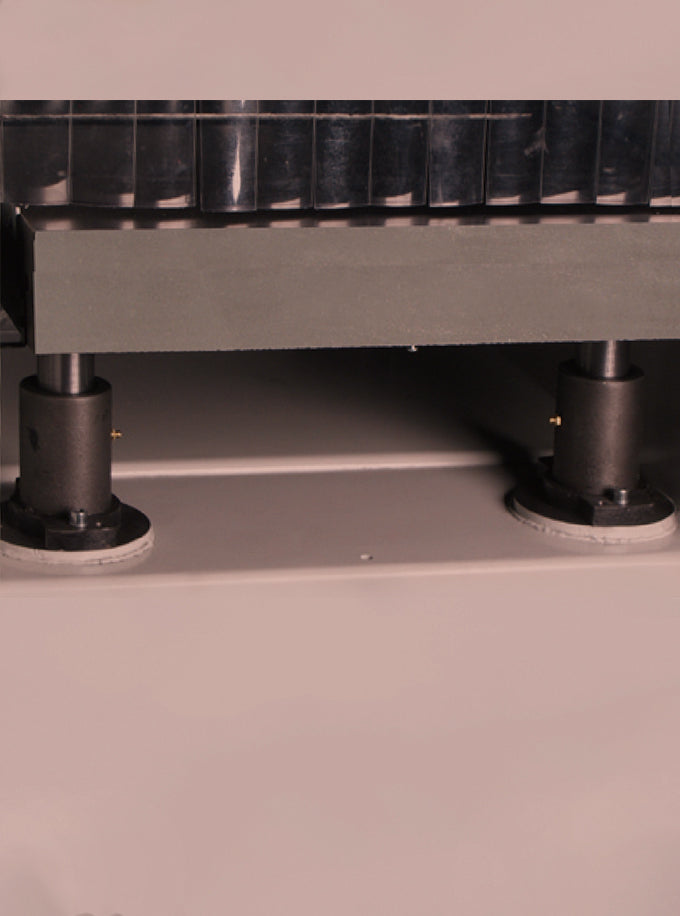

- Four trapezoidal thread spindles with dual guide rails guarantee accurate adjustment and avoid lateral movement during thicknessing
- Two bottom table rollers
- Electronic motor breaking
- Sound insulation underside of the lid
- Matting protection on top of the lid to allow material to be pasted over the machine without causing damage to the workpiece
Additional Information
Model
Type
Thicknesser
SKU
8000868
Series
Ilmenite
Part Number
ILMENITE 530H 415V
Brand
ToughCut
Size
530mm (21")
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Blade Type
Spiral Head Cutter Block
Blade Width
530mm (21")
Cutting Capacity - Height
300mm
Technical - Spiral Head Cutter Block
Blade- Cutter Head Block - Blade Size
15mm x 15mm x 2.5mm (150mm Radius)
Blade - Cutter Head Block - Diameter
117mm
Blade - Cutter Head Block Speed (RPM)
5500
Blade - Cutter Head Block - No. of Blades / Tips
92
Dimensions
Product Weight (Net Weight)
526kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Variable Speed
Variable Speed
Variable speed motors generally start a motor at zero voltage and ramp it up slowly. This minimises the power needed to set the mechanism into operation, which in turn reduces the wear and tear on the motor. Variable speed also enables equipment to have precise speed control.
Warranty
Warranty (Australia)
Warranty (Australia)
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Warranty (Important for International Customers)
Warranty (Important for International Customers)
Important Warranty Notice for International CustomersPlease note that purchases made from outside Australia are undertaken at the customer’s own risk. Our product warranties are generally valid within Australia only. While we are happy to assist with warranty-related issues, the following conditions apply for international orders:Any warranty claim requires the item to be returned to us in Australia at the customer’s expense.If the claim is accepted, Beyond Tools will carry out the repair or replacement under the terms of the Australian warranty.Return shipping of the repaired or replacement item must also be paid by the customer.We do not cover international freight, import duties, or customs clearance costs.We strongly recommend that international customers consider this before purchasing. If you have any questions, please feel free to contact us before placing your order.
See Notes
Packaging + Shipping
Shipping Length
1120mm
Shipping Width
1150mm
Shipping Height
1300mm
Shipping Weight (Gross)
640kg
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end). This product requires a skid / pallet / crate in order to safely transport via road.
Product Specification Disclaimer
Product Specification Disclaimer
Product Specification Disclaimer
The specifications provided on our product pages are obtained from various manufacturers and third-party sources. While we strive to ensure that the information is accurate, we do not warrant or guarantee its accuracy, completeness, or timeliness. Therefore, we cannot be held liable for any errors, omissions, or discrepancies in the specifications provided.Please note that product specifications are subject to change by the manufacturers without notice. It is recommended to verify the specifications with the manufacturer or seller before making a purchase decision.In the event of any discrepancy between the product specifications on our website and the actual product, the latter shall prevail.We reserve the right to update, modify, or remove product specifications at any time without prior notice.
See Notes
Comparable Products Disclaimer
Comparable Products Disclaimer
Our product comparisons are based on our first-hand experiences and knowledge of models we've sold in the past. We aim to provide objective and accurate information to assist you in making informed decisions. We do not receive compensation for featuring products in our comparisons. For more details on our disclosure practices, please click here to view the full disclosure statement.
See Notes
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)All power tools and machines sold by Beyond Tools are designed to operate on 230V / 50Hz electrical systems as standard in Australia.These products are supplied with Type I Australian power plugs.If you are purchasing from outside Australia, particularly from regions using 110V–120V systems (e.g., USA, Canada), you will require a step-up transformer or region-appropriate model.Please consult a qualified electrician before using voltage converters to ensure safe and correct operation.Disclaimer: Beyond Tools is not responsible for any damage, malfunction, or safety risks resulting from the use of products outside their intended voltage range or with incompatible electrical systems.
See Notes
Product Accessories
Optional Accessories
ToughCut 530mm (21") Industrial Thicknesser Ilmenite 530H
